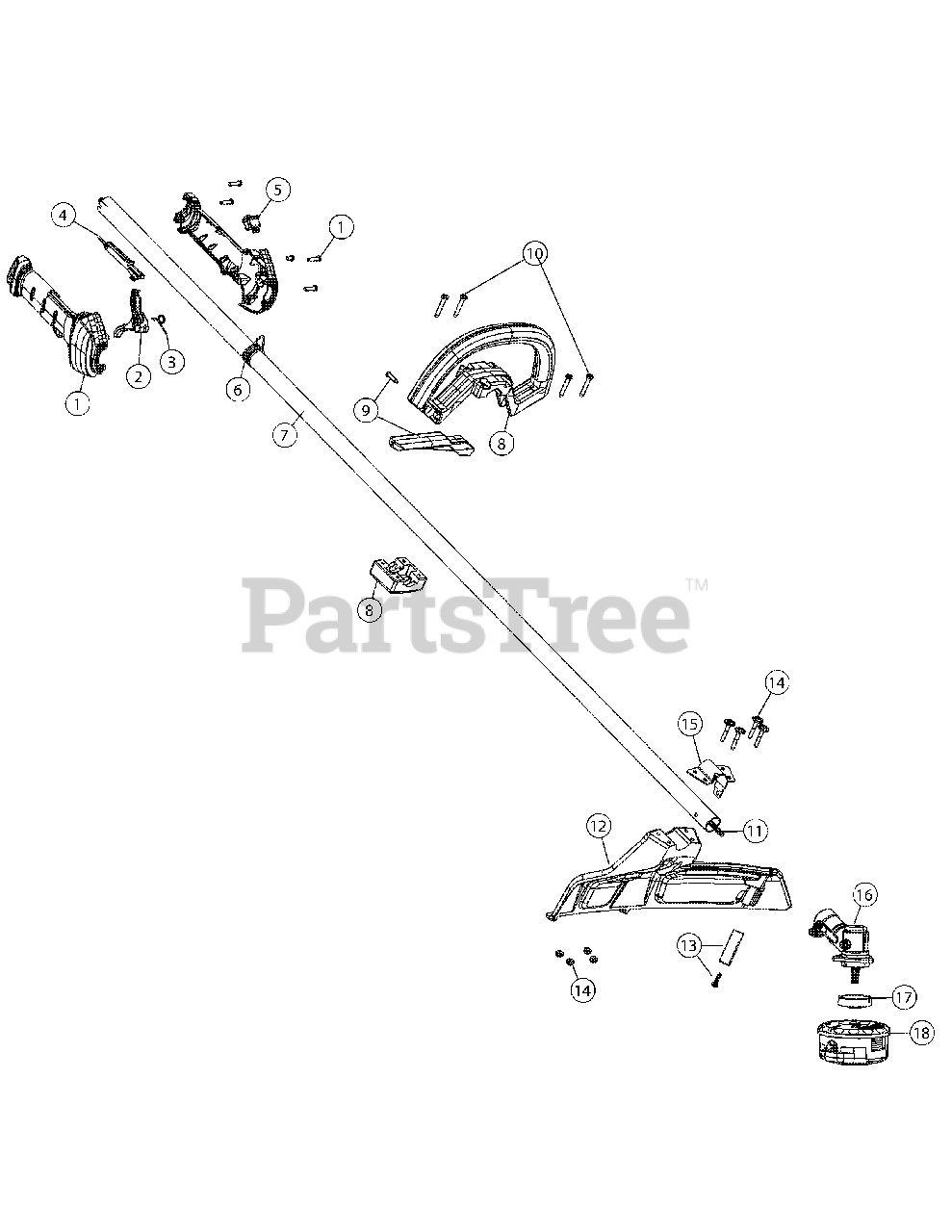

TBP 3160 (41AD316G966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05296

Throttle Housing Assembly
(Superseded to 753-09645)

Note: (Incl. Ref No. 2-5)

$12.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-05293

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 7

0

3

Troy-Bilt 753-05007

Spring

$5.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-05171

Throttle Lock-out
(Superseded to 731-04971C-10)

$5.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 791-182673

Switch

$10.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 753-05818

Driver Shaft Housing

$

$

Not available

8

Troy-Bilt 753-05008

D-Handle Assembly

Note: (Incl. Ref No. 9 & 10)

$31.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-05295

Barrier Bar Assembly

$36.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05819

Solid Drive Shaft

$30.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-05820

Shield Assembly

Note: (Incl. Ref No. 13)

$24.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05821

Blade Assembly

$9.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-05822

Screw

$6.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05823

Guard Mounting Bracket

$

$

Not available

16

Troy-Bilt 753-05824

Gearbox

$63.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-05825

Gearbox Spacer

$19.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 796-00033

Cutting Head Assembly
(Superseded to 841-032392S)

$23.99

$

In Stock, Qty 20+

0

Troy-Bilt 753-05896

Shoulder Strap

Note: Not Shown

$28.99

$

Usually ships in 3-6 days

0
