TC 130 (960510123-00) - Husqvarna 30" Garden Tractor (2014-07) MOWER DECK / CUTTING DECK Parts Diagram

30" Garden Tractor

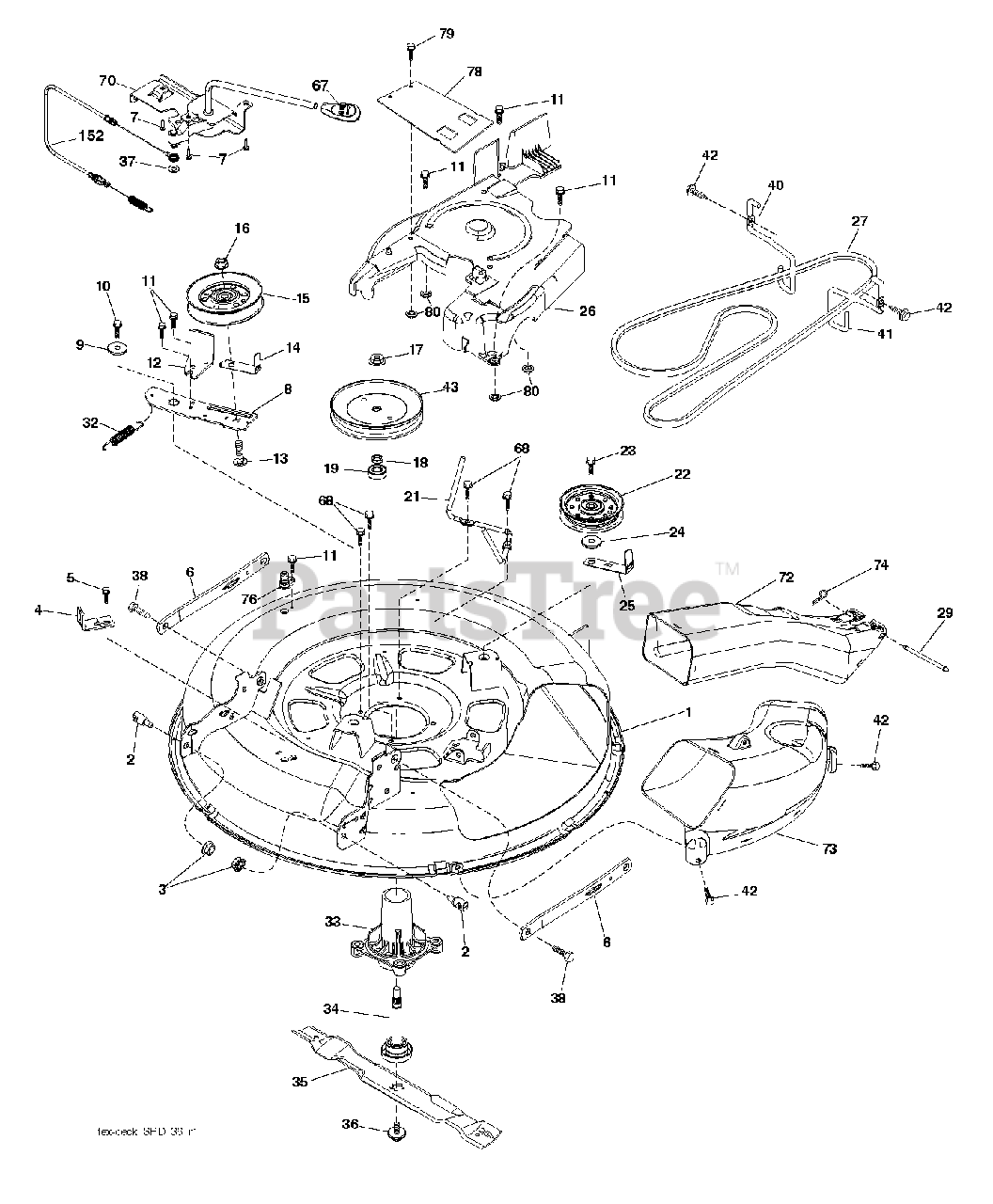

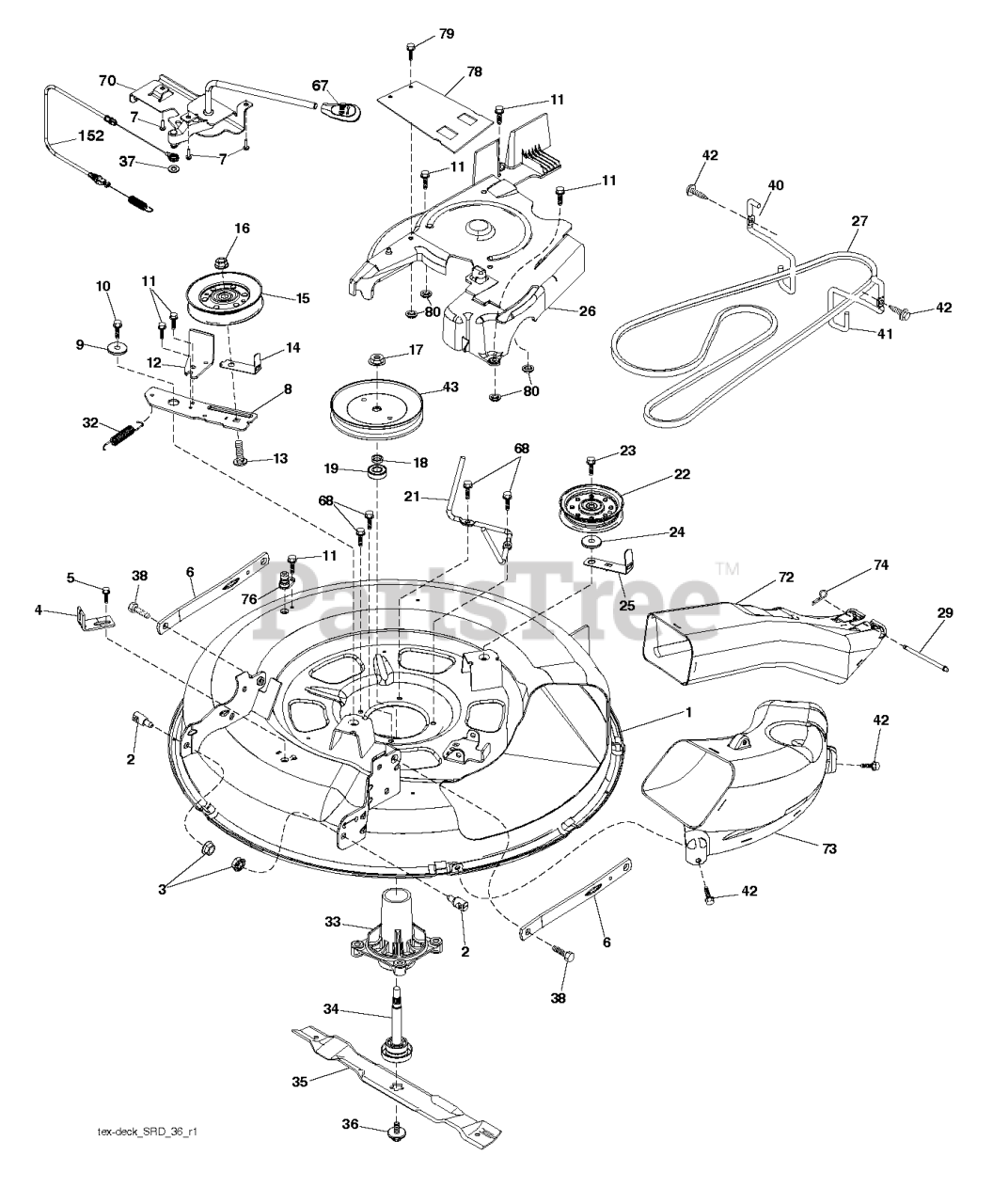

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532442048

DECK.WELDMENT.PNT.30"SRD
(Superseded to 532434487)

$341.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

3

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

4

Husqvarna 532417645

BRACKET.CLUTCH.CABLE

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 532418863

ARMS.SUSP.MOWER.REAR.SRD

$22.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

8

Husqvarna 532420252

ARM.IDLER.30"SRD
(Superseded to 583379801)

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532199092

SPACER.RETAINER

$7.99

$

In Stock, Qty 20+

0

10

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 532199470

RP ARM.BRAKE.MOWER.38"LH.TEX
(Superseded to 532400130)

$22.99

$

In Stock, only 2 left!

0

13

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

15

Husqvarna 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

19

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

21

Husqvarna 532416910

KEEPER.BELT.MANDREL.30"

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

$28.99

$

In Stock, Qty 6

0

23

Husqvarna 817490628

SCREW LT
(Superseded to 599972501)

$3.49

$

In Stock, Qty 5

0

24

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532420253

KEEPER.BELT.30"SRD
(Superseded to 529311701)

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532420255

COVER.ASM.MANDREL.30"
(Superseded to 583481101)

$62.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532419271

V-BELT.DRIVE.MOWER.30"

$56.99

$

In Stock, only 1 left!

0

29

Husqvarna 532420895

PIN.HINGE.30".SRD
(Superseded to 593885101)

$6.99

$

In Stock, Qty 5

0

32

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 20+

0

33

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

34

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

35

Husqvarna 532419274

BLADE.MOWER.BAGGING.30"

$37.99

$

In Stock, Qty 10

0

36

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 18

0

40

Husqvarna 532419270

KEEPER.BELT.ENGINE.LH.LT.SRD

$20.99

$

In Stock, only 1 left!

0

41

Husqvarna 532419265

KEEPER.BELT.ENGINE.RH.LT.SRD

$13.99

$

In Stock, only 3 left!

0

42

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532416877

PULLEY, MANDREL 6.5 PD
(Superseded to 525568002)

$31.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$7.99

$

In Stock, only 4 left!

0

68

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$1.49

$

In Stock, Qty 20+

0

70

Husqvarna 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$39.99

$

In Stock, only 1 left!

0

72

Husqvarna 532417236

CHUTE.UPPER.SRD.30R"
(Superseded to 583364501)

$96.99

$

In Stock, only 1 left!

0

73

Husqvarna 532425274

CHUTE.LOWER.SRD.30R"

$85.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532124670

Retainer Spring

$

$

Not available

76

Husqvarna 532415598

PORT.WASHOUT

$7.99

$

In Stock, Qty 14

0

78

Husqvarna 532422566

GUARD ARM CLUTCH
(Superseded to 583394901)

$

$

Not available

79

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.49

$

In Stock, Qty 19

0

80

Husqvarna 532423062

PALNUT 1/4

$3.49

$

Usually ships in 3-10 days

0

152

Husqvarna 532435111

CABLE.CLUTCH.MANUAL.

$37.99

$

In Stock, Qty 20+

0

--

Husqvarna 532192870

RB MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: Mandrel Assembly (Includes Housing Shaft Assembly And Bearing Only- Pulley /Nut /Washer And Blade Bolt /Washers Not Included)

$62.99

$

In Stock, Qty 20+

0

--

Husqvarna 532441076

CUTTING DECK DECK.SVC.30R"HP.E
(Superseded to 583554101)

$

$

Not available
