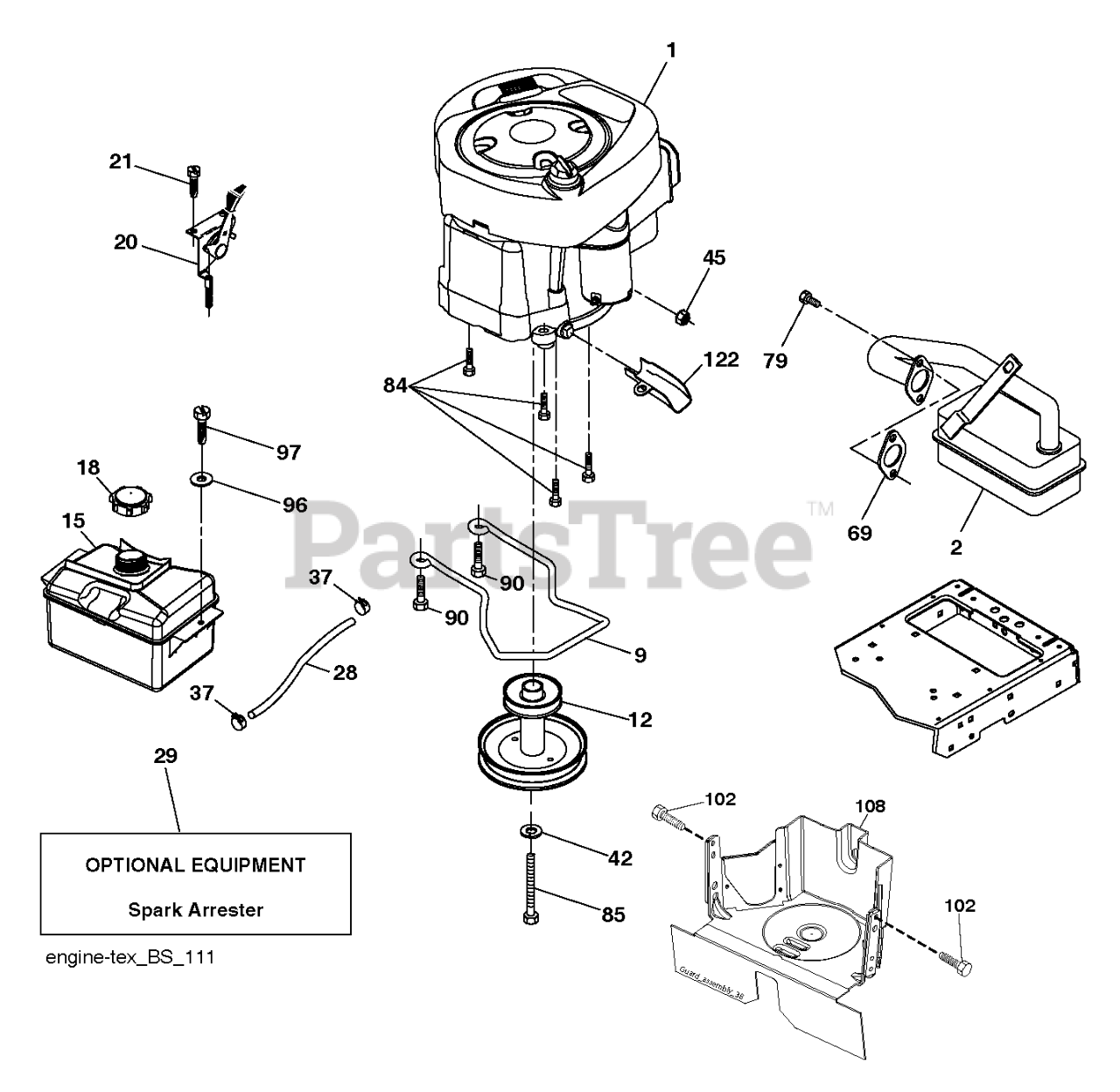

TC 130 (960510123-01) - Husqvarna 30" Garden Tractor (2017-05) ENGINE Parts Diagram

30" Garden Tractor

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE B&S MODEL NO. 21R777-0100-B1 (587355101)

$

$

Not available

2

Husqvarna 532179758

MUFFLER.B&S.MODEL.21.11HP.OHV

$53.99

$

In Stock, Qty 19

0

9

Husqvarna 582540302

KEEPER.BELT.ENG.3.25"2BOLT.PNT

$8.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$131.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$62.99

$

In Stock, Qty 6

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

20

Husqvarna 587242601

THROTTLE.COBRA.21".RSTART.BLK
(Superseded to 587242604)

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 10

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 10

0

42

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$3.49

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

108

Husqvarna 587179504

COVER.PULLEY.ENGINE.W/SHLD.30"
(Superseded to 587179512)

$41.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0
