TC 130 (960510197-00) - Husqvarna 30" Garden Tractor (2019-05) ENGINE Parts Diagram

30" Garden Tractor

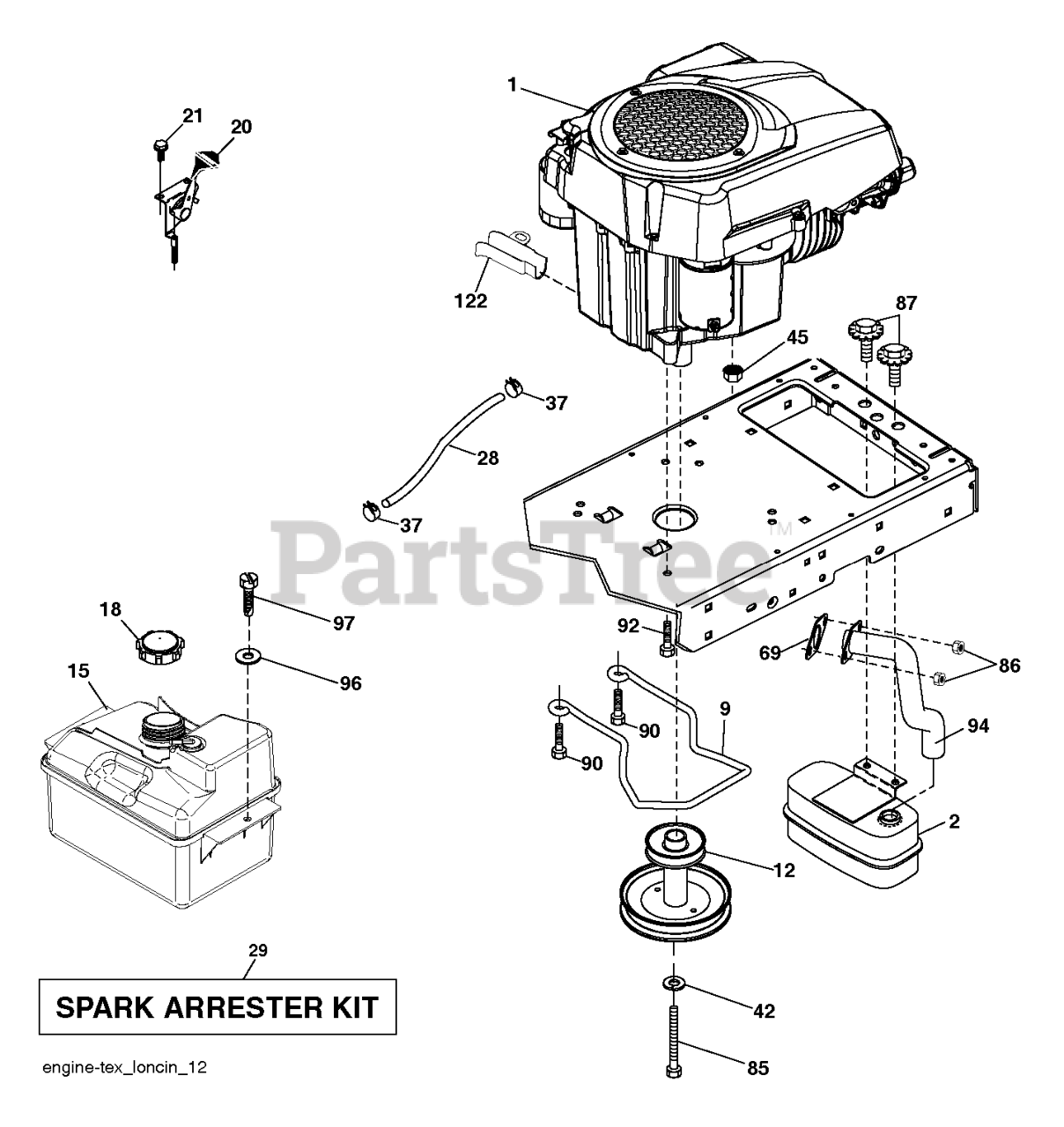

ENGINE Parts Diagram

  • Title

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$7.49

$

In Stock, Qty 11

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

9

Husqvarna 582540302

KEEPER.BELT.ENG.3.25"2BOLT.PNT

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 590863501

GASKET GASKET.EXHAUST.LONCIN 3

$3.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

1

Husqvarna 598694001

NEEDS DESCRIPTION

Note: Europe Only

$

$

Currently unavailable

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

In Stock, only 2 left!

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 9

0

45

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE

$44.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 5

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, Qty 11

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

1

Husqvarna 593230401

ENGINE.LONCIN.SPARE/452

Note: Engine Husqvarna Model No HV 452CC. Engine IPL available separately.

$

$

Not available

12

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$93.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$87.99

$

In Stock, Qty 7

0

94

Husqvarna 590864701

TUBE TUBE.EXHAUST.LONCIN 452.T

$24.99

$

Usually ships in 3-10 days

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0
