TC 130 (960510197-00) - Husqvarna 30" Garden Tractor (2019-05) STEERING Parts Diagram

30" Garden Tractor

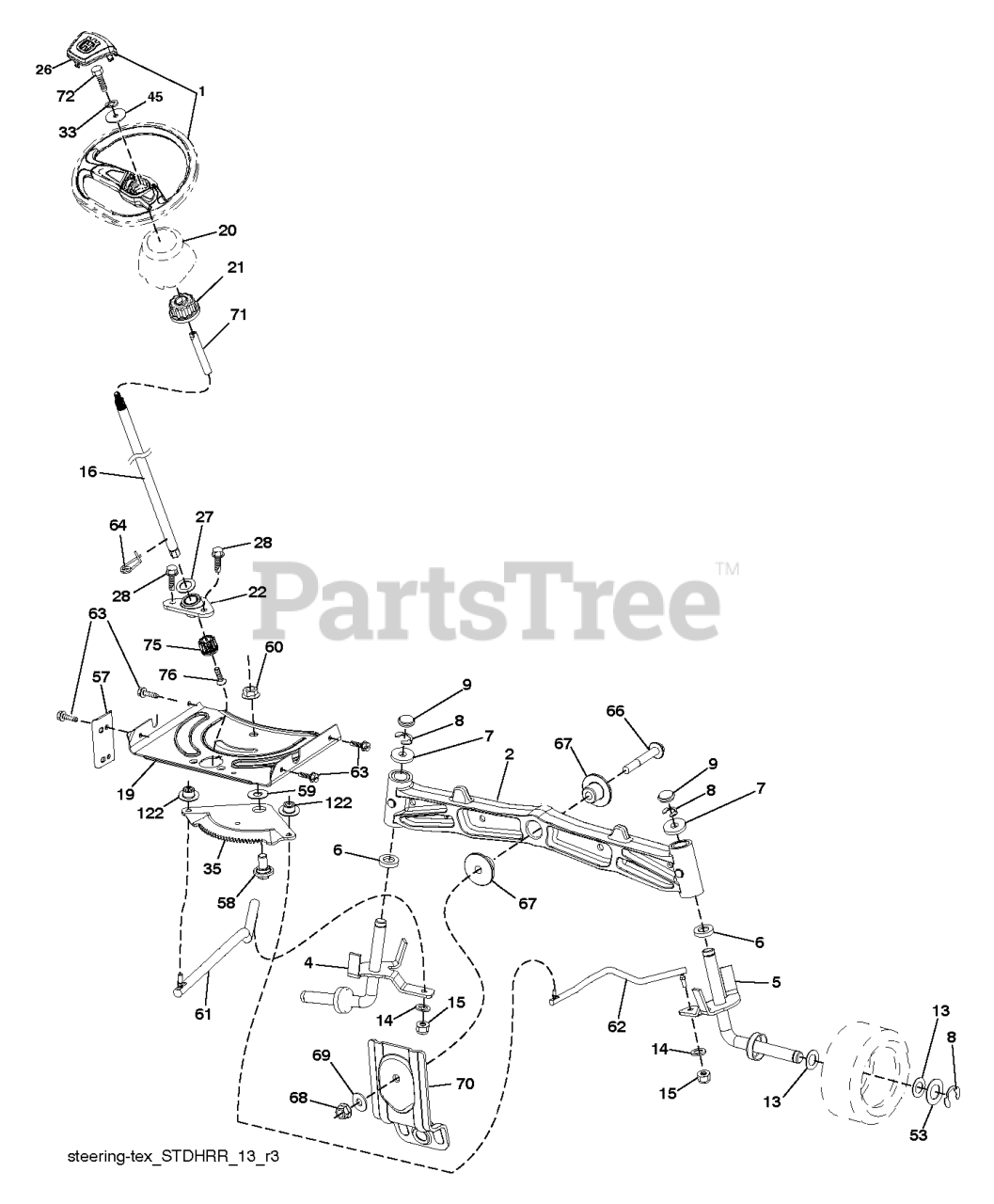

STEERING Parts Diagram

  • Title

72

Husqvarna 596039701

Bolts

$2.49

$

In Stock, only 1 left!

0

70

Husqvarna 532417065

BRACKET.SUSP.MWR.FRT.30"SRD

$8.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$8.99

$

In Stock, Qty 17

0

76

Husqvarna 580683601

SCREW HEAD SOCKET LRVB

$4.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, Qty 9

0

45

Husqvarna 596040001

Washers

$3.99

$

In Stock, only 4 left!

0

20

Husqvarna 532441425

STEERING.BOOT.HUSQ.LT

$9.49

$

Usually ships in 3-10 days

0

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

122

Husqvarna 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, Qty 20+

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 585029802

BEARING.SHAFT.STEER.LOWER.625
(Superseded to 587738901)

$17.99

$

In Stock, Qty 20+

0

4

Husqvarna 532416845

SPINDLE.STEERING.ASM.LH.13".TI
(Superseded to 583361001)

$37.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$3.99

$

In Stock, Qty 20+

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

6

Husqvarna 532006266

WASHER THRUST

$7.99

$

In Stock, Qty 20+

0

14

Husqvarna 596238701

Washers

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

27

Husqvarna 596933401

Washers

$3.99

$

In Stock, Qty 8

0

16

Husqvarna 585869202

3 HIGH.SHAFT-ZINC.PLATED
(Superseded to 587738903)

$28.99

$

In Stock, Qty 6

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 594949101

Steering

$4.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532407465

BRACKET.UPSTOP.TEX

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 532195968

AXLE.CAST.IRON
(Superseded to 532413591)

$145.99

$

In Stock, only 1 left!

0

7

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

1

Husqvarna 597866101

Service Kit

$66.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

Usually ships in 3-10 days

0

33

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, Qty 18

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 532416846

SPINDLE.STEERING.ASM.RH.13".TI
(Superseded to 583361101)

$37.99

$

In Stock, only 1 left!

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 580683701

PINION.ZINC PLATED
(Superseded to 587738906)

$5.99

$

In Stock, Qty 9

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, Qty 8

0

61

Husqvarna 588794402

LINK.ASM.DRAG.ADJUST.LH.PLATED

$

$

Not available

62

Husqvarna 588794502

LINK.ASM.DRAG.ADJUST.RH.PLATED

$

$

Not available

21

Husqvarna 532186737

ADAPTER, WHEEL STNG..
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE

$4.99

$

Usually ships in 3-10 days

0
