TC 138 (960510124-04) - Husqvarna 38" Garden Tractor (2017-09) BAGGER Parts Diagram

38" Garden Tractor

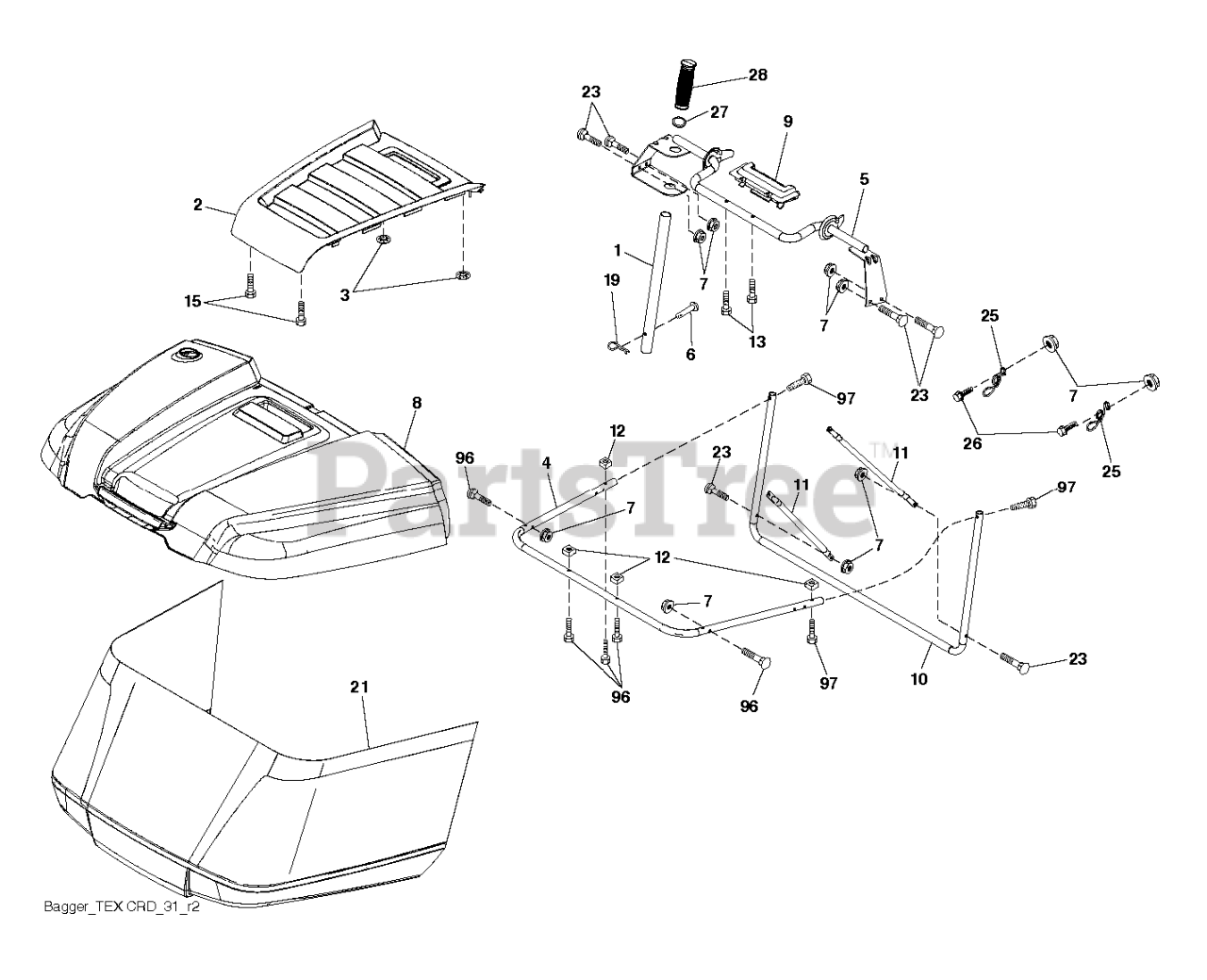

BAGGER Parts Diagram

  • Title

10

Husqvarna 532436770

FRAME FRAME.FRONT.TEX.CRD
(Superseded to 583511501)

$

$

Not available

97

Husqvarna 590105701

SCREW.TORX.BUTN.HD.1/4-20-1.5"

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532436771

BRACE BRACE SIDE TUBE
(Superseded to 583511601)

$14.99

$

Usually ships in 3-10 days

0

96

Husqvarna 501406601

SCREW.HEXCAP.1/4X-20X1.500

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579785401

SUBASM.TOP.BAGGER.TUBE

$

$

Not available

8

Husqvarna 532441261

BAGGER.TOP.SRD.APPLIQUE
(Superseded to 583503801)

$155.99

$

Usually ships in 3-10 days

0

7

Husqvarna 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532448306

BAG SUBASM. TEX CRD GEN 2 HUSQ
(Superseded to 583595201)

$148.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532413808

NUT.PUSH.156
(Superseded to 583343001)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532126875

RIVET,DRILLED

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532165787

GRIP.HANDLE.BLACK

$7.49

$

In Stock, Qty 10

0

15

Husqvarna 532421801

SCREW,#8.FLAT.HEAD.DRILL.TIP
(Superseded to 583392101)

$

$

Not available

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

23

Husqvarna 872040410

BOLT

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 532441358

APPLIQUE.TOP.BAG.SRD.ORANGE

$45.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532421780

SCREW.1/4X1.150.HXWSH
(Superseded to 583391201)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532417632

FRAME.ASM.TOP.BAGGER.SRD
(Superseded to 583365901)

$119.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532428610

TUBE.HANDLE.BAGGER.CRD/SRD.BLA
(Superseded to 531151701)

$23.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532421614

SPRING.LATCH.BAGGER.SRD
(Superseded to 583389801)

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532421793

NUT.SQUARE.1/4
(Superseded to 583391701)

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 532417629

INSERT.HANDLE.BAGGER.(2 2)
(Superseded to 583365801)

$29.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532421262

RB GROMMET.RUBBER.SRD
(Superseded to 583387201)

$4.99

$

Usually ships in 3-10 days

0
