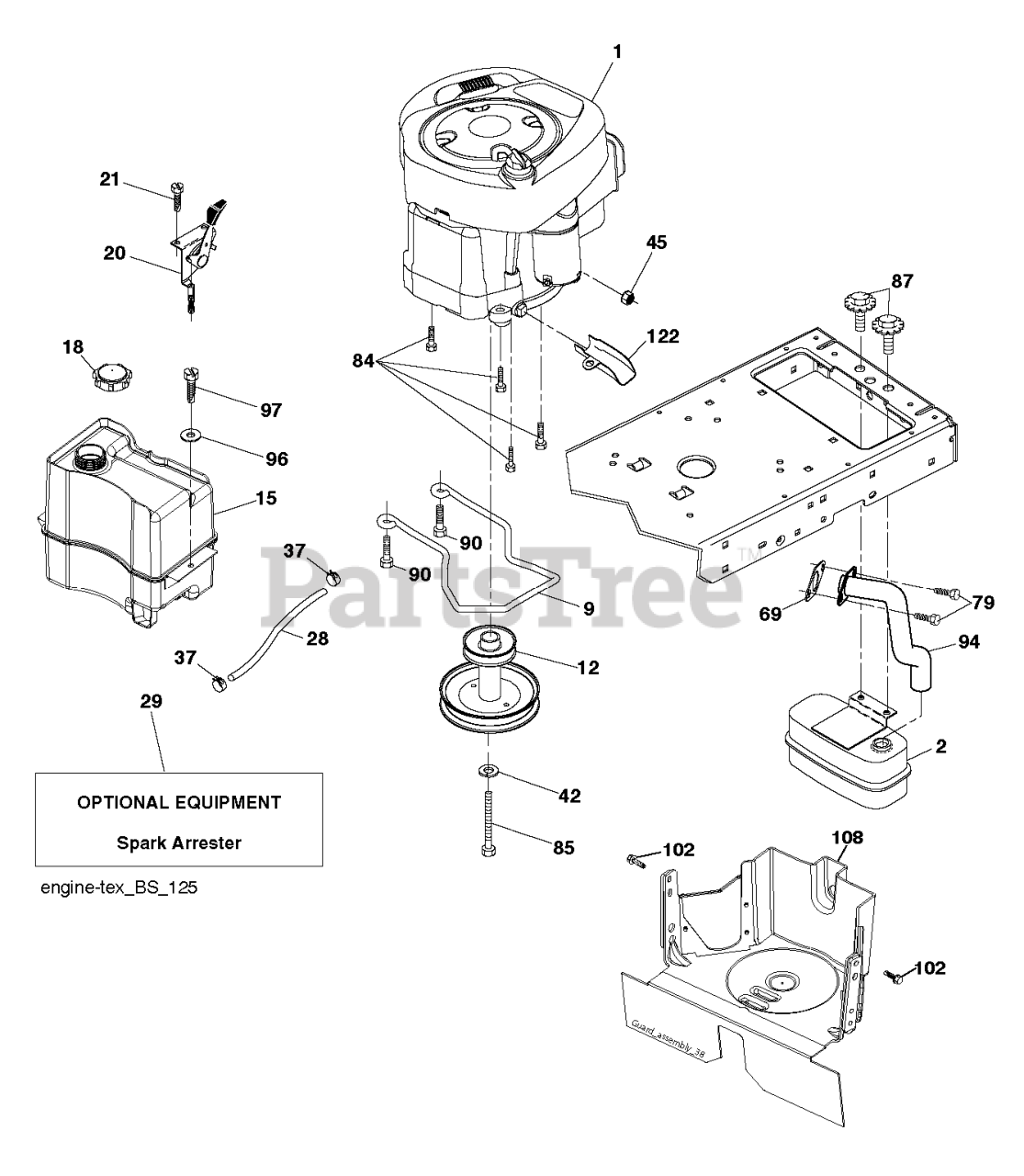

TC 138 (960510124-04) - Husqvarna 38" Garden Tractor (2017-09) ENGINE Parts Diagram

38" Garden Tractor

ENGINE Parts Diagram

  • Title

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, only 2 left!

0

108

Husqvarna 587179510

COVER ENGINE PULLEY COVER WITH

$79.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

$26.99

$

In Stock, only 2 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$3.49

$

In Stock, Qty 14

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$51.99

$

In Stock, Qty 8

0

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 9

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

12

Husqvarna 586478501

ENGINE.PULLEY

$34.99

$

In Stock, only 1 left!

0

1

000000000

Note: B&S MODEL 31R577-0027-B1 (587333501)

$

$

Not available

102

Husqvarna 817060516

SCREW 5/16-18X1
(Superseded to 593337601)

$4.99

$

In Stock, only 3 left!

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$13.99

$

In Stock, only 3 left!

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$62.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587242601

THROTTLE.COBRA.21".RSTART.BLK
(Superseded to 587242604)

$26.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 8

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0
