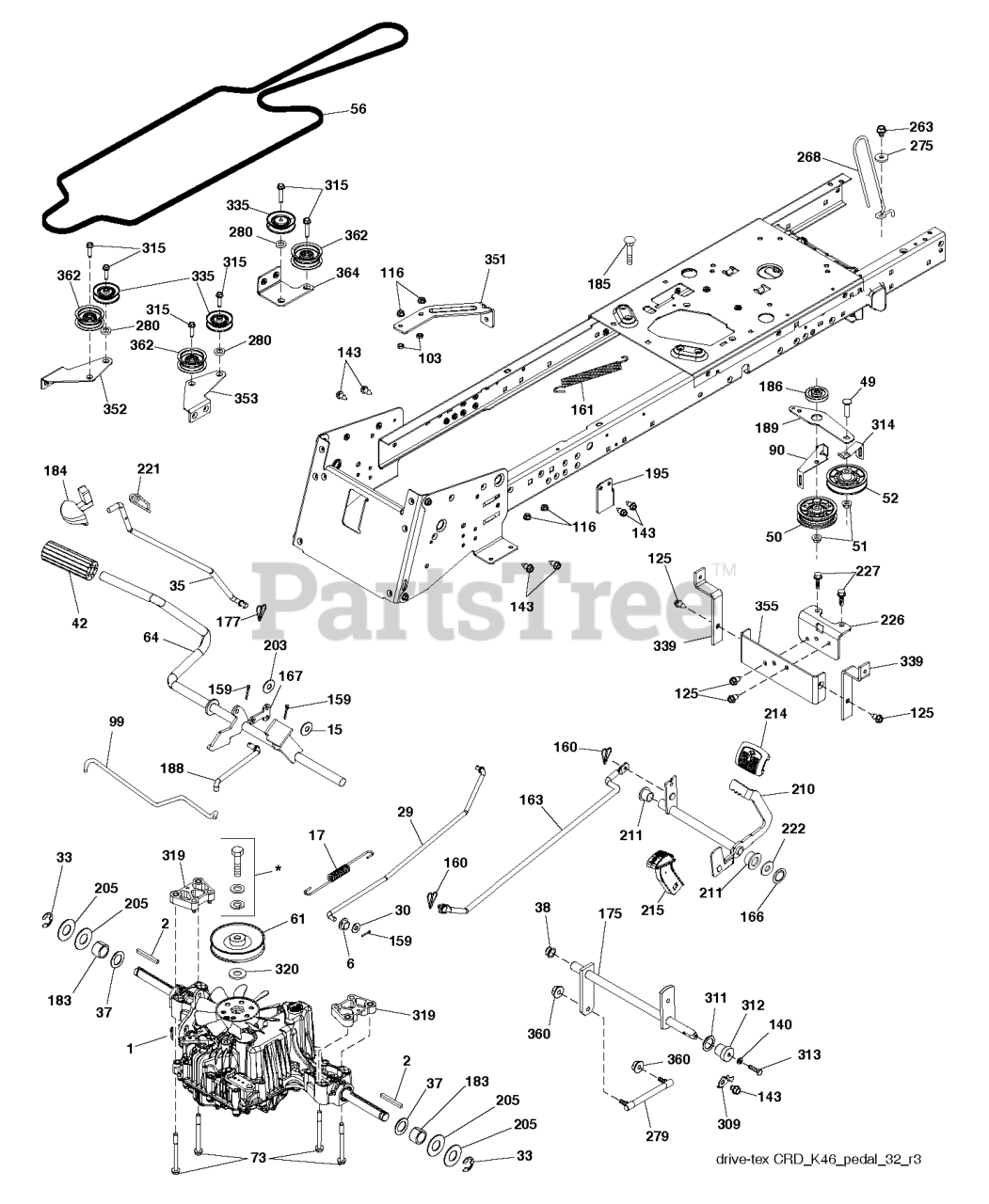

TC 138 (960510179-00) - Husqvarna 38" Garden Tractor (2018-07) DRIVE Parts Diagram

38" Garden Tractor

DRIVE Parts Diagram

  • Title

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$4.99

$

In Stock, Qty 13

0

73

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532008883

PEDAL COVER
(Superseded to 510089501)

$6.49

$

In Stock, Qty 14

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 1 left!

0

315

Husqvarna 817580520

BOLT.5/16-18X1.25

$5.99

$

In Stock, only 3 left!

0

335

Husqvarna 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

275

Husqvarna 596135401

Washers

$2.49

$

Usually ships in 3-10 days

0

280

Husqvarna 596039901

Washers

$2.49

$

Usually ships in 3-10 days

0

352

Husqvarna 532435819

BRACKET BRACKET.IDLER
(Superseded to 583507301)

$6.49

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

184

Husqvarna 532411484

HANDLE.PARKNG BRK.PRED.LT.428

$67.99

$

Usually ships in 3-10 days

0

203

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 9

0

314

Husqvarna 532444713

RETAINER KEEPER BELT
(Superseded to 583575801)

$4.99

$

Usually ships in 3-10 days

0

355

Husqvarna 532435669

STRAP STRAP TORQUE K46 CRD TEX
(Superseded to 583506501)

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$6.99

$

In Stock, only 3 left!

0

103

Husqvarna 596436301

Nuts

$3.99

$

In Stock, Qty 10

0

38

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

360

Husqvarna 532444714

NUT NUT HEX CENTERLOCK 5/16-24
(Superseded to 583575901)

$3.99

$

Usually ships in 3-10 days

0

160

Husqvarna 596029401

GSPW Retainers

$3.99

$

In Stock, Qty 13

0

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

313

Husqvarna 596040701

Bolts

$2.49

$

Usually ships in 3-10 days

0

143

Husqvarna 596030701

Screws

$3.99

$

In Stock, only 2 left!

0

364

Husqvarna 532443032

BRACKET BRACKET IDLER CRD TEX
(Superseded to 583567401)

$7.49

$

Usually ships in 3-10 days

0

1

000000000

Note: Transaxle Tufftorq K46DF (532446488)

$

$

Not available

226

Husqvarna 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 14

0

49

Husqvarna 596136201

Bolts

$3.99

$

In Stock, Qty 7

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, Qty 5

0

279

Husqvarna 593898401

Links

$8.99

$

Usually ships in 3-10 days

0

353

Husqvarna 532436577

BRACKET
(Superseded to 583509501)

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 2 left!

0

163

Husqvarna 532436632

ROD
(Superseded to 583550601)

$33.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532435881

ROD
(Superseded to 583507601)

$34.99

$

Usually ships in 3-10 days

0

35

Husqvarna 596874801

Rods

$6.49

$

Usually ships in 3-10 days

0

227

Husqvarna 596135901

Bolts

$2.49

$

Usually ships in 3-10 days

0

215

Husqvarna 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

$10.99

$

In Stock, only 1 left!

0

312

Husqvarna 532165614

HUB.TAPERED.ROUND.CRD

$6.49

$

Usually ships in 3-10 days

0

362

Husqvarna 532436812

IDLER.FLAT.2.25.INCH
(Superseded to 583512101)

$31.99

$

Usually ships in 3-10 days

0

339

Husqvarna 532436867

STRAP STRAP TORQUE K46 CRD TE
(Superseded to 583512601)

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532443605

KEEPER KEEPER BELT CLUTCHING T
(Superseded to 583570001)

$4.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

311

Husqvarna 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

159

Husqvarna 596029501

Pins

$3.99

$

In Stock, only 1 left!

0

56

Husqvarna 592855101

Belts

$34.99

$

Usually ships in 3-10 days

0

320

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 3 left!

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 596140201

Washers

$3.99

$

In Stock, Qty 6

0

268

Husqvarna 596887801

Mufflers

$2.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532436227

SPRING
(Superseded to 583508701)

$7.49

$

Usually ships in 3-10 days

0

351

Husqvarna 532436998

BRACKET BRACKET DECK SWAY
(Superseded to 583515101)

$9.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532400980

ROCKER.ASM.PEDAL.CONTR

$34.99

$

In Stock, only 1 left!

0

319

Husqvarna 532436794

SPACER SPACER TRANSAXLE TEX C
(Superseded to 583512001)

$14.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532443947

ROD ROD BYPASS CRD TEX GEN 2
(Superseded to 583571801)

$9.99

$

Usually ships in 3-10 days

0

189

Husqvarna 532433611

BELLCRANK BELLCRANK GROUNDDRI
(Superseded to 583492701)

$7.49

$

Usually ships in 3-10 days

0

195

Husqvarna 580456901

BRACKET.ROD.BRAKE

$7.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

140

Husqvarna 596029801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 18

0

309

Husqvarna 532165851

SHAFT ASSY PITTMAN

$

$

Not available

177

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$4.99

$

In Stock, only 3 left!

0

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110622

BOLT

$3.99

$

In Stock, only 4 left!

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

175

Husqvarna 532429359

SHAFT SUBASM.SHAFT.CROSS.SHIFT
(Superseded to 583450901)

$21.99

$

Usually ships in 3-10 days

0

116

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

211

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, only 3 left!

0

61

Husqvarna 532437788

PULLEY
(Superseded to 583522801)

$42.99

$

Usually ships in 3-10 days

0
