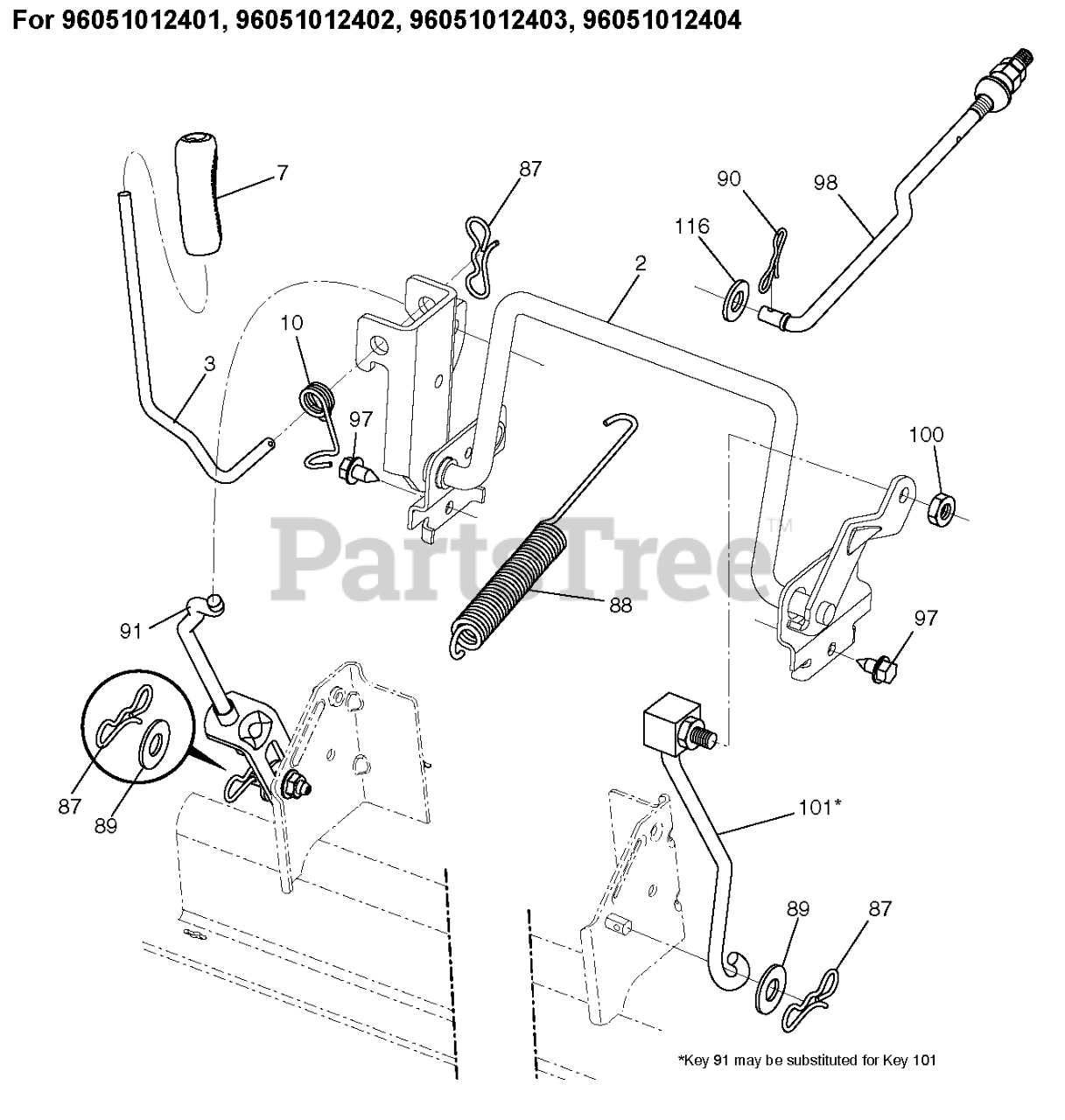

TC 138 - Husqvarna 38" Garden Tractor (Original) MOWER LIFT / DECK LIFT 2 Parts Diagram

38" Garden Tractor

MOWER LIFT / DECK LIFT 2 Parts Diagram

  • Title
97

$6.49

$

Usually ships in 3-10 days

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 17

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 3 left!

0

88

Husqvarna 532445496

SPRING.DK.LIFT.97/107.TXCRDII
(Superseded to 583580001)

$10.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532195181

LINK.ASM.LIFT.REAR

$

$

Not available

2

Husqvarna 532436996

SHAFT LIFT DECK WELD
(Superseded to 583515001)

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532195231

LEVER.LIFT.HANDLE.LT

$

$

Not available

98

Husqvarna 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$11.99

$

In Stock, Qty 6

0

101

Husqvarna 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

$18.99

$

Usually ships in 3-10 days

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 12

0

116

$

$

Not available

100

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.49

$

In Stock, only 1 left!

0
