TC 138 - Husqvarna 38" Garden Tractor (Original) SEAT Parts Diagram

38" Garden Tractor

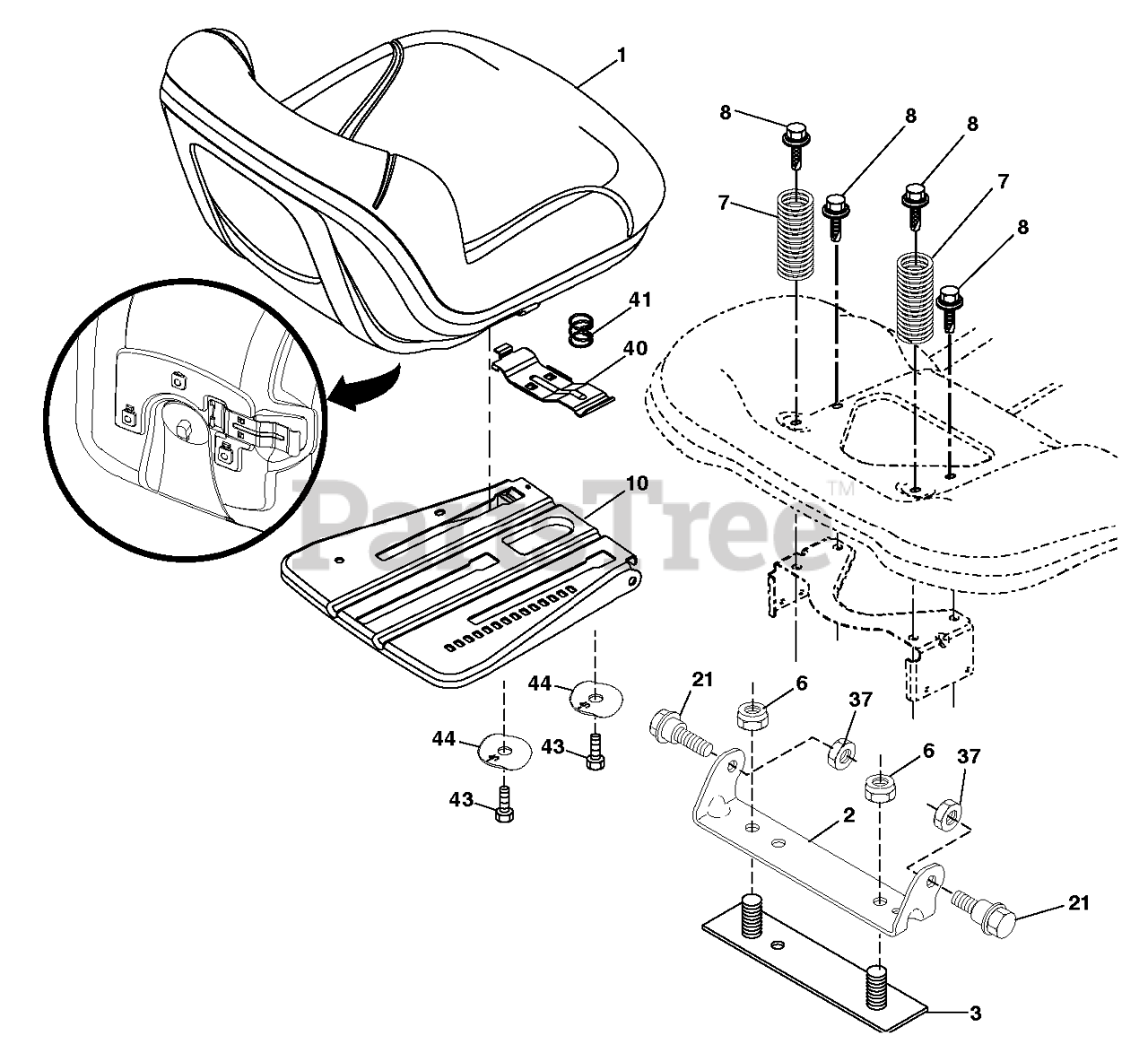

SEAT Parts Diagram

  • Title

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$14.99

$

In Stock, only 1 left!

0

37

Husqvarna 596583702

Nuts

Note: For 96051017900, 96051020000

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532439709

SEAT.TH110.HUSQ.TEX.GREY
(Superseded to 583544801)

Note: For all EXCEPT 96051017900, 96051020000

$215.99

$

In Stock, only 1 left!

0

1

Husqvarna 532439819

SEAT.TH130.GREY.HUSQ.TEX

Note: For 96051017900, 96051020000

$215.99

$

In Stock, only 1 left!

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

Note: For all EXCEPT 96051012404, 96051017900, 96051020000

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 589483501

SPRING.COMPRESS.SEAT.TAPERED

Note: For 96051012404, 96051017900, 96051020000

$9.99

$

In Stock, only 2 left!

0

40

Husqvarna 595088102

Handles

$5.99

$

In Stock, only 1 left!

0

44

Husqvarna 501051801

WASHER.WINGED.3/8ID.1.5OD

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 596040501

Hardware

Note: For all EXCEPT 96051017900, 96051020000

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

43

Husqvarna 874760612

BOLT

$3.99

$

In Stock, Qty 8

0

10

Husqvarna 596657402

PLATE SEAT; SLIDE; 3PT BLACK;
(Superseded to 596768801)

$65.99

$

In Stock, only 2 left!

0

41

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$3.49

$

In Stock, only 2 left!

0

21

Husqvarna 587907801

BOLT.5/16-18X5/8.SHOULDER

$3.49

$

In Stock, Qty 5

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

3

Husqvarna 532140675

STRAP
(Superseded to 588090401)

$6.99

$

Usually ships in 3-10 days

0
