TC 138 L (960510189-00) - Husqvarna 38" Garden Tractor (2019-08) ENGINE Parts Diagram

38" Garden Tractor

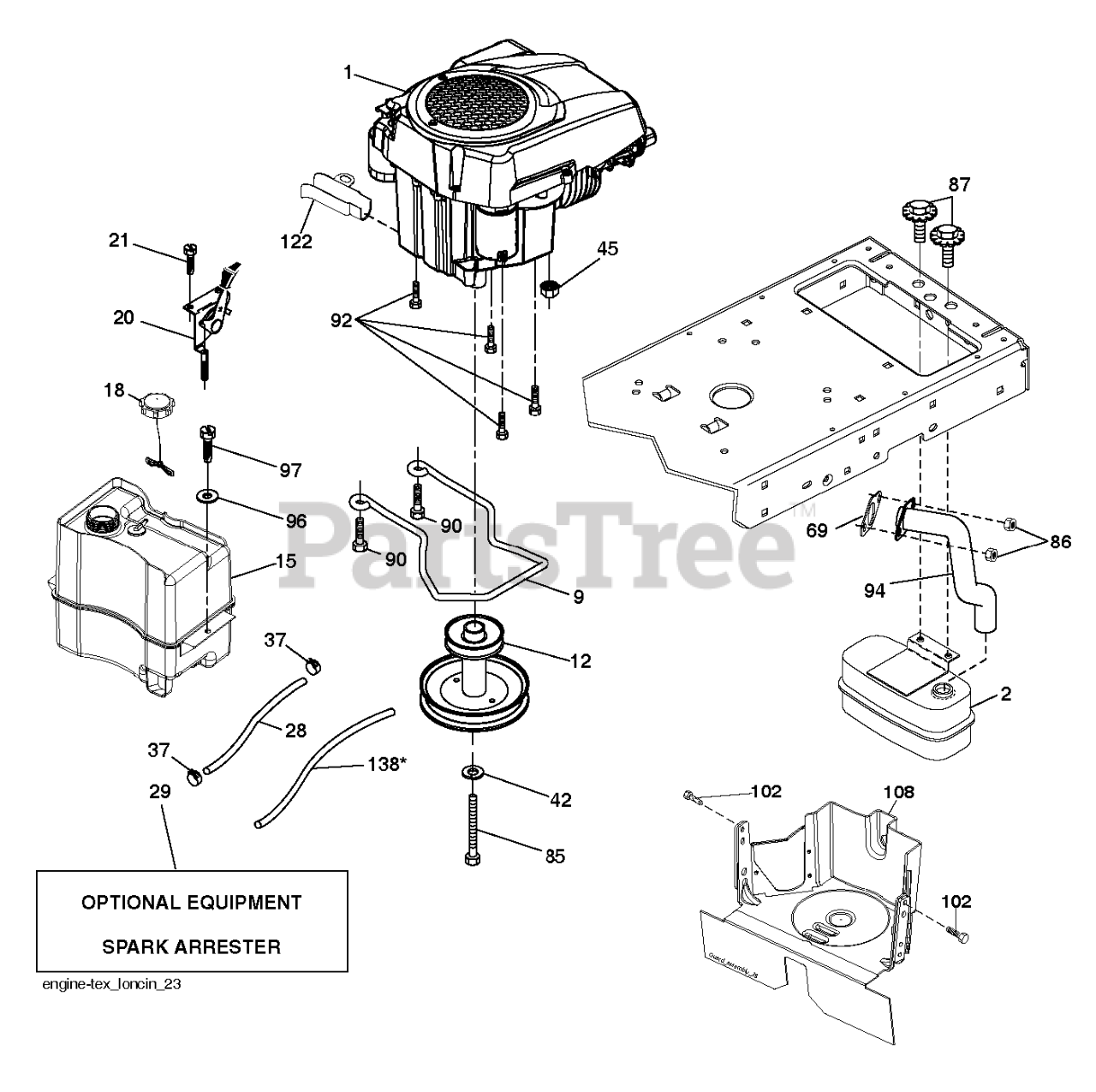

ENGINE Parts Diagram

  • Title

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 8

0

21

Husqvarna 596321701

Screws

$3.49

$

In Stock, Qty 15

0

42

Husqvarna 596238901

Washers

$3.49

$

In Stock, Qty 17

0

94

Husqvarna 590864701

TUBE TUBE.EXHAUST.LONCIN 452.T

$31.99

$

Usually ships in 3-10 days

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

69

Husqvarna 590863501

GASKET GASKET.EXHAUST.LONCIN 3

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$13.99

$

In Stock, only 3 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0

9

Husqvarna 596501502

Keepers

$13.99

$

In Stock, only 3 left!

0

138*

Husqvarna 587044531

NEEDS DESCRIPTION

$5.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 11

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$34.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 586478501

ENGINE.PULLEY

Note: Non-EPA

$34.99

$

In Stock, only 1 left!

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$62.99

$

Usually ships in 3-10 days

0

15

Husqvarna 597952201

Tanks
(Superseded to 597952203)

Note: EPA

$96.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

$51.99

$

In Stock, only 2 left!

0

96

Husqvarna 596135301

Washers

$3.49

$

In Stock, Qty 6

0

102

Husqvarna 593337601

Screws

$4.99

$

In Stock, only 3 left!

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, only 2 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$3.49

$

In Stock, Qty 14

0

108

Husqvarna 587179510

COVER ENGINE PULLEY COVER WITH

$79.99

$

Usually ships in 3-10 days

0

45

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

$2.49

$

Usually ships in 3-10 days

0

1

Husqvarna 598694001

NEEDS DESCRIPTION

Note: ENGINE HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY)

$

$

Currently unavailable
