TC 138 T (960510198-00) - Husqvarna 38" Garden Tractor (2021-03) ENGINE Parts Diagram

38" Garden Tractor

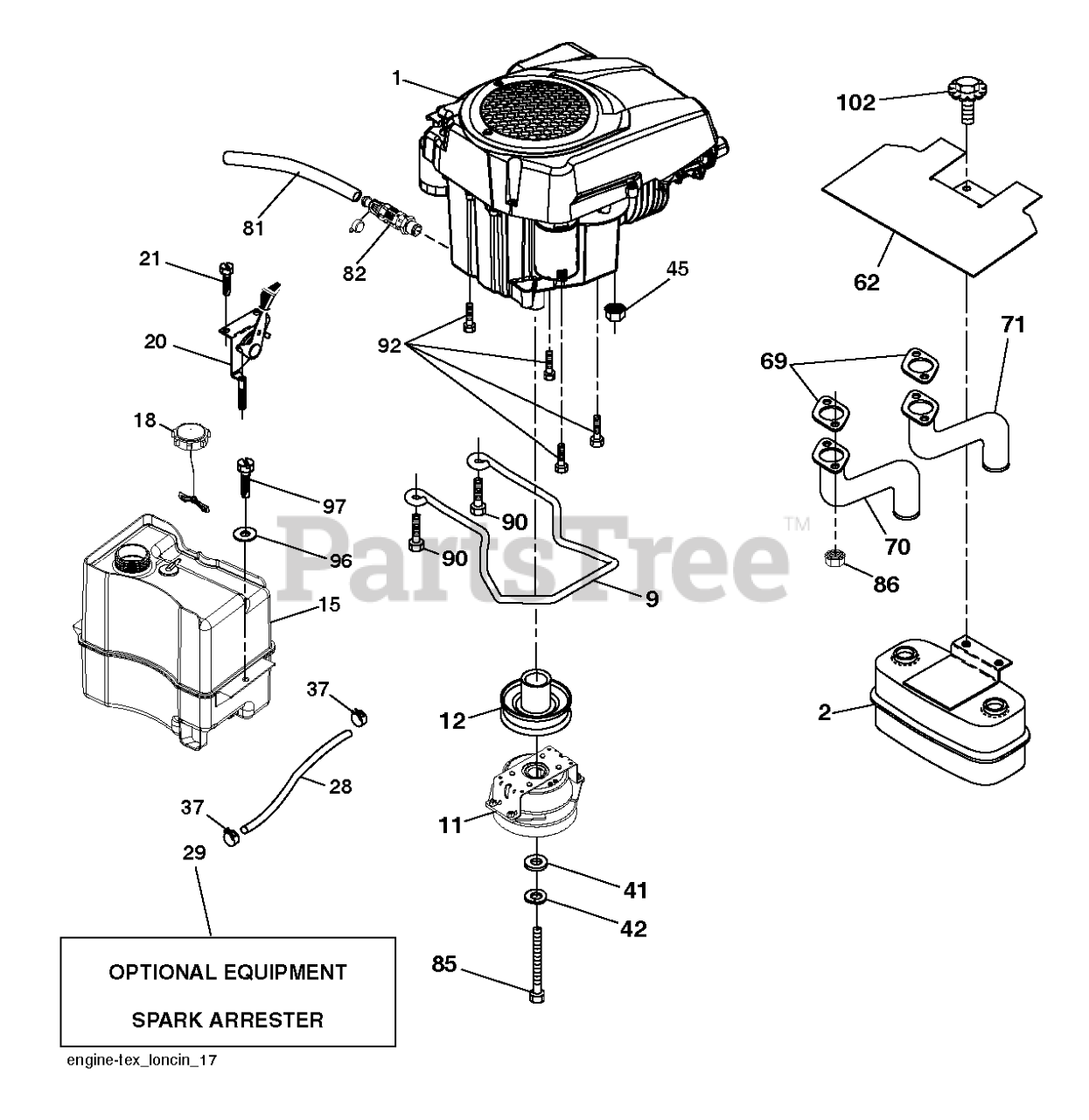

ENGINE Parts Diagram

  • Title

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

In Stock, only 1 left!

0

70

Husqvarna 597888901

NEEDS DESCRIPTION

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

15

Husqvarna 581290101

TANK.ASSEMBL.2.5GAL.NON-EPA

$131.99

$

In Stock, Qty 7

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 17

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, only 2 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

71

Husqvarna 597889001

NEEDS DESCRIPTION

$

$

Not available

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

85

Husqvarna 501606601

BOLT.HEX.7/16-20X3.75.GR5.RED

$3.99

$

In Stock, Qty 11

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 13

0

20

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.BK

$26.99

$

In Stock, Qty 20+

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 18

0

69

Husqvarna 597905101

NEEDS DESCRIPTION

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

1

Husqvarna 598632101

NEEDS DESCRIPTION

Note: HUSQVARNA MODEL NO. HV764 (COMPLETE IPL AVAILABLE SEPARATELY)

$

$

Currently unavailable

11

Husqvarna 592821701

CLUTCH MAGNETIC CLUTCH & BRAKE

$359.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

45

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

$2.49

$

Usually ships in 3-10 days

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

9

Husqvarna 596501502

Keepers

$14.99

$

In Stock, only 2 left!

0
