TC 139 T (960510145-00) - Husqvarna 39" Garden Tractor (2016-08) MOWER DECK / CUTTING DECK Parts Diagram

39" Garden Tractor

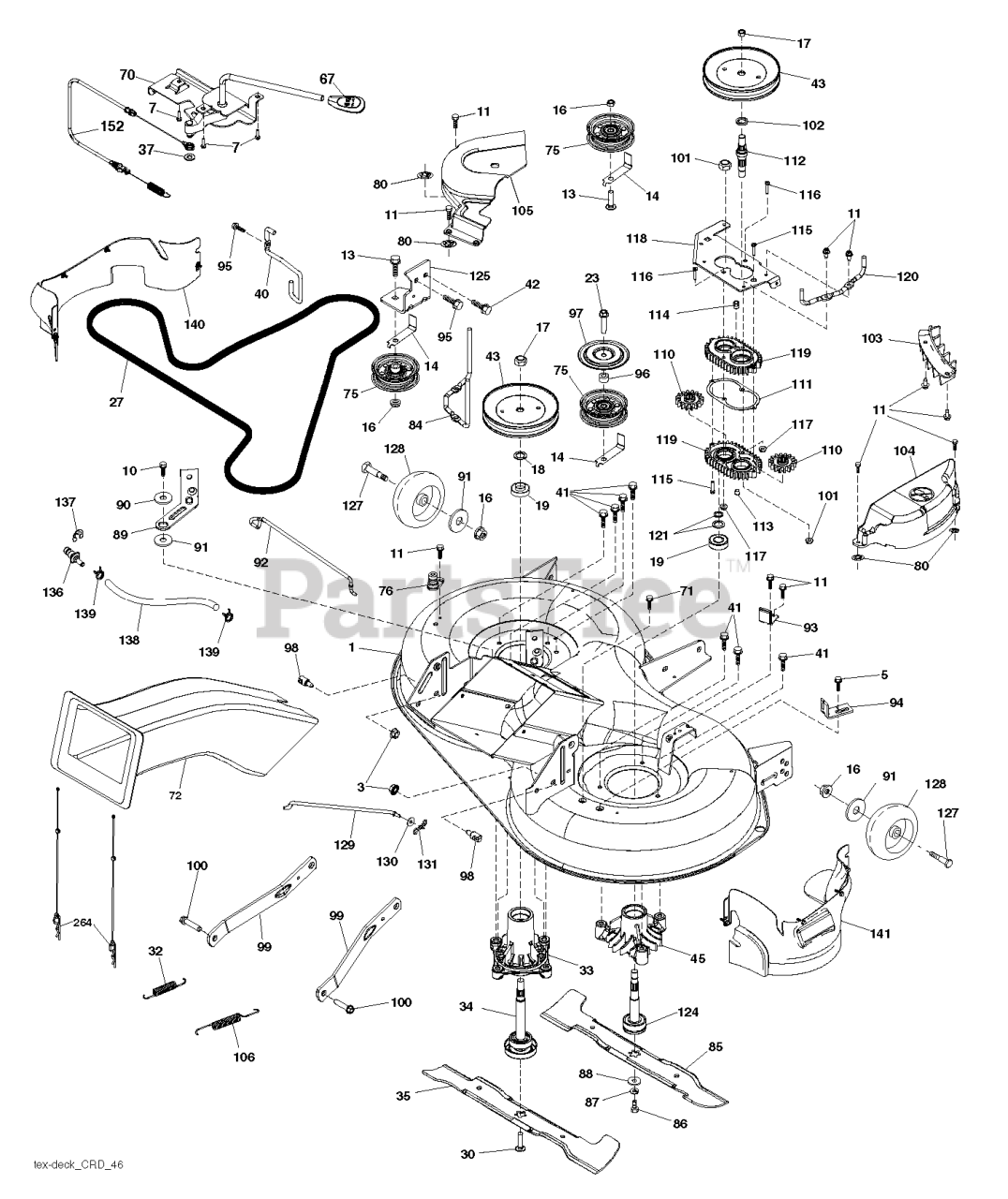

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532440971

DECK.WELDMENT.97.TEX.498
(Superseded to 532440330)

$341.99

$

Usually ships in 3-10 days

0

3

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

Note: RH

$

$

Not available

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 18

0

7

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

10

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 15

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 5

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

19

Husqvarna 585323901

BEARING.MANDREL.TOP.EXTENDED
(Superseded to 532110485)

$17.99

$

In Stock, Qty 20+

0

23

Husqvarna 817490628

SCREW LT
(Superseded to 599972501)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532439726

BELT V-BELT DRIVE

$53.99

$

Usually ships in 3-10 days

0

30

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$9.49

$

In Stock, Qty 20+

0

32

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 20+

0

33

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

34

Husqvarna 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

35

Husqvarna 532427984

BLADE.3N1.LH.CRD.97

$59.99

$

Usually ships in 3-10 days

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 20+

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

43

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

45

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$47.99

$

In Stock, only 2 left!

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$8.49

$

In Stock, Qty 10

0

70

Husqvarna 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

$62.99

$

In Stock, Qty 5

0

71

Husqvarna 817670608

SCREW 3/8-16X1/2

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 581454102

RP.CHUTE 107/97 TEX GENII
(Superseded to 581454103)

$119.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$33.99

$

In Stock, Qty 20+

0

76

Husqvarna 532439640

1/2" BARB.DECK.WASHOUT.PORT
(Superseded to 583544301)

$6.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532423062

PALNUT 1/4

$3.49

$

In Stock, only 2 left!

0

84

Husqvarna 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$8.49

$

In Stock, Qty 20+

0

85

Husqvarna 532427985

BLADE.3N1.RH.CRD.97

$59.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 8

0

87

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

88

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 9

0

89

Husqvarna 532438124

ARM.BRAKE.97.LH
(Superseded to 529846801)

$17.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 17

0

91

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

92

Husqvarna 532436993

ROD ROD BRAKE
(Superseded to 583514701)

$11.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532438125

ARM.BRAKE.97.RH
(Superseded to 583527101)

$12.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$5.99

$

In Stock, Qty 14

0

95

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

96

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$

$

Not available

97

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$7.49

$

Usually ships in 3-10 days

0

98

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, only 1 left!

0

99

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R
(Superseded to 529846401)

$21.99

$

In Stock, Qty 18

0

100

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

101

Husqvarna 873680900

NUT.CROWNLOCK.9/16 -18.UNC
(Superseded to 596040601)

$4.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532402511

SPACER BEARING

$4.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532436992

GUARD GUARD FRONT VENT
(Superseded to 583514601)

$8.49

$

Usually ships in 3-10 days

0

104

Husqvarna 532438968

97.CRD.RH.MANDREL.COVER

$33.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532438744

MANDREL MANDREL COVER LH
(Superseded to 583534001)

$31.99

$

Usually ships in 3-10 days

0

106

Husqvarna 532193216

SPRING.BRAKE.RETURN.38"

$5.99

$

In Stock, Qty 8

0

110

Husqvarna 587934801

CRD.SPUR.GEAR

$15.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532436979

GASKET GASKET GEARCASE
(Superseded to 583514001)

$5.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532443852

SHAFT SHAFT. CRD GEARCASE ADAP
(Superseded to 583571601)

$21.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532438533

PLUG PLUG OIL
(Superseded to 583533001)

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 588170501

VENT.BREATHER.1/8 NPT

$11.99

$

Usually ships in 3-10 days

0

115

Husqvarna 818031016

SCREW
(Superseded to 583608901)

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 872110414

BOLT.CARIGE.SS.1/4-20X1.75GR5
(Superseded to 594976601)

$3.99

$

Usually ships in 3-10 days

0

117

Husqvarna 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

118

Husqvarna 532436989

ARM ARM CLUTCHING
(Superseded to 583514401)

$22.99

$

Usually ships in 3-10 days

0

119

Husqvarna 532438166

GEARCASE GEARCASE SUBASM
(Superseded to 583527601)

$79.99

$

Usually ships in 3-10 days

0

120

Husqvarna 532436991

BRACKET KEEPER BELT RH
(Superseded to 583514501)

$

$

Not available

121

Husqvarna 532436985

WASHER WASHER
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Husqvarna 532436986

MANDREL SHAFT NON/GREASE
(Superseded to 583514201)

$45.99

$

In Stock, only 2 left!

0

125

Husqvarna 532440420

BRACKET
(Superseded to 583548001)

$39.99

$

Usually ships in 3-10 days

0

127

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

128

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$9.99

$

In Stock, Qty 20+

0

129

Husqvarna 532443237

ROD ROD. SWAY CRD GEN II
(Superseded to 583568101)

$23.99

$

In Stock, only 1 left!

0

130

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

136

Husqvarna 532439639

PLUG WASHOUT PORT HOOKUP
(Superseded to 583544201)

$5.99

$

Usually ships in 3-10 days

0

137

Husqvarna 812000029

RING CLIP

$2.49

$

In Stock, Qty 20+

0

138

Husqvarna 532440743

HOSE.3/8ID.BULK.12"

$

$

Not available

139

Husqvarna 532440742

HOSE.3/8.CLAMP (2 2)

$

$

Not available

140

Husqvarna 501579401

GUARD.ASSEMBLY.97.LH.FRENCH
(Superseded to 598660801)

$45.99

$

Usually ships in 3-10 days

0

141

Husqvarna 501579302

GUARD.ASSEMBLY.97.RH.FRENCH
(Superseded to 598660702)

$89.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532440488

CABLE CABLE CLUTCH MANUAL W/S
(Superseded to 583548401)

$31.99

$

Usually ships in 3-10 days

0

264

Husqvarna 589392901

RETAINER.ASM.UPPERCHUTE.CRD2.5
(Superseded to 589392902)

$4.99

$

Usually ships in 3-10 days

0

--

Husqvarna 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

--

Husqvarna 589471001

DECK.ASM.SVCX.97.TXCRD.2GW.FR
(Superseded to 596551301)

$

$

Not available

--

Husqvarna 532448132

KIT.CRD.GEABOX.SVC

Note: Gear Case Kit Use 75 oz Shell 460 Oil (Include Gear Output (key 110) Gasket Gearcase (key 111) Shaft Gearcase (key 112) Plug Oil (key 113) Vent Breather 1 /8 NPT (key 114) Screw Torx (key 115) Gearcase Subasm (key 119)

$

$

Not available
