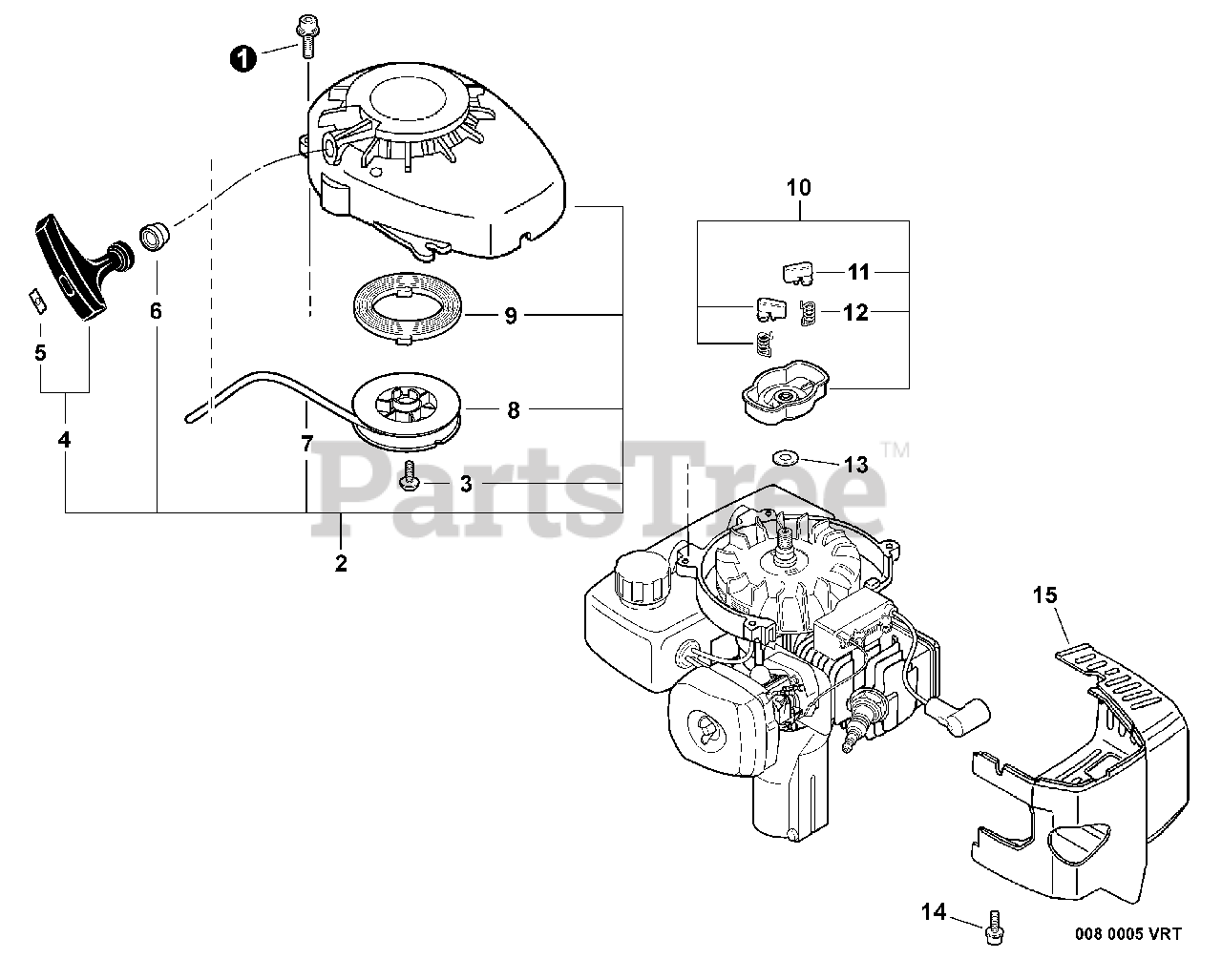

TC-210 - Echo Tiller Cultivator (SN: 07001001 - 07999999) Engine Cover, Starter Parts Diagram

Tiller Cultivator

Engine Cover, Starter Parts Diagram

  • Title

1

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

2

Echo 17720006563

STARTER ASSY - GRAY

Note: Includes ITEMS 3-9

$105.99

$

In Stock, only 2 left!

0

3

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 13

0

4

Echo 17722811120

GRIP, STARTER

Note: Includes ITEMS 5

$6.99

$

Usually ships in 2-4 days

0

5

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

6

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

7

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

8

Echo 17721544430

REEL, ROPE

$10.99

$

In Stock, Qty 11

0

9

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$11.99

$

In Stock, Qty 9

0

10

Echo 17720212220

STARTER PAWL ASSY

Note: Includes ITEMS 11-12

$19.99

$

In Stock, only 3 left!

0

11

Echo 17721844330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

12

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 15

0

13

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

14

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 7

0

15

Echo 10150613121

COVER, ENGINE - GRAY
(Superseded to Discontinued)

$

$

Not available
