TC-210 - Echo Tiller Cultivator (SN: 07001001 - 07999999) Intake Parts Diagram

Tiller Cultivator

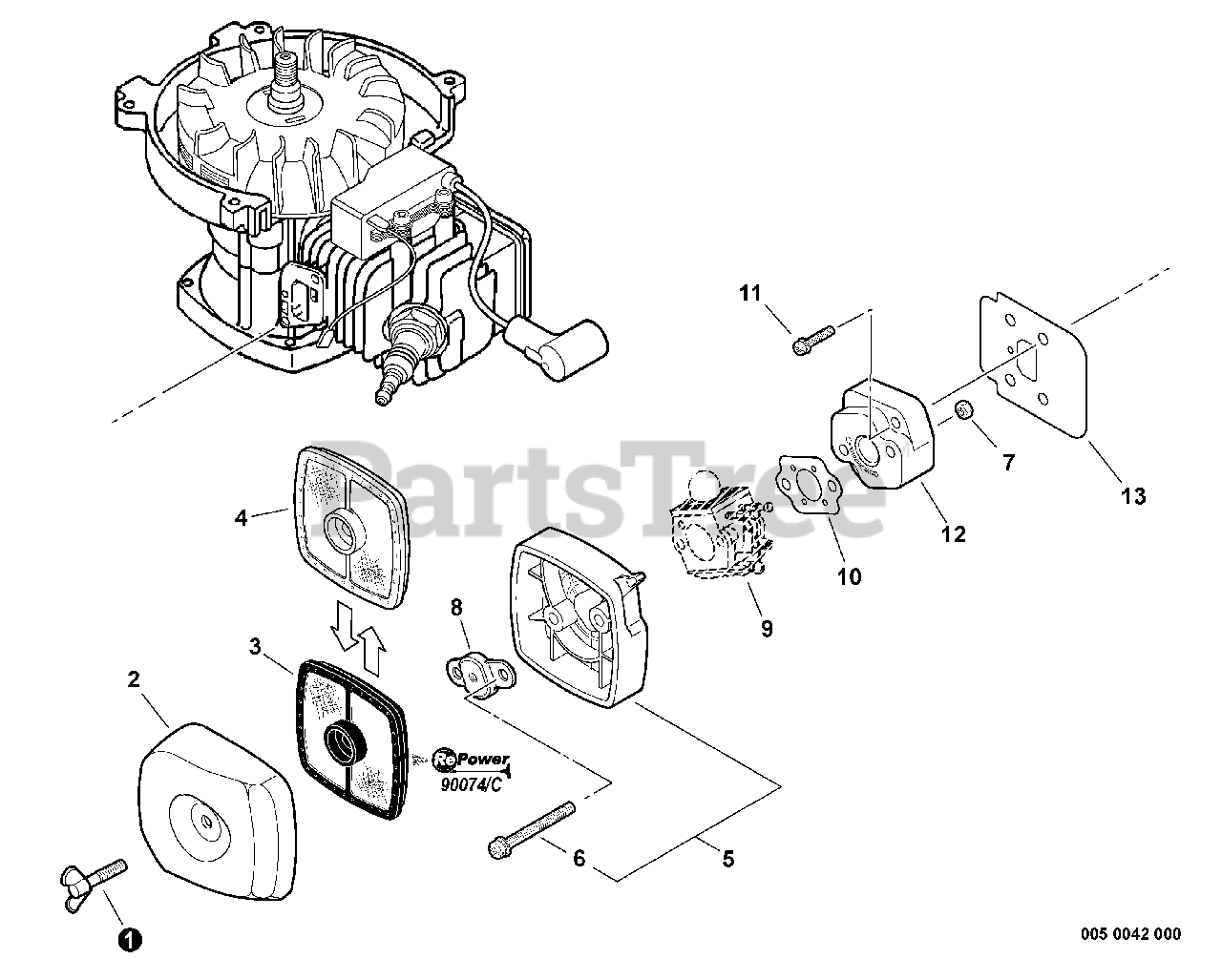

Intake Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 13

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

2

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$8.99

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: OPTIONAL

$8.99

$

In Stock, Qty 20+

0

5

Echo P021002921

CASE, AIR FILTER - GRAY

Note: Includes ITEM 6

$14.99

$

In Stock, Qty 15

0

5

Echo P021015760

CASE SET, AIR FILTER

Note: Includes ITEM 6

$14.99

$

In Stock, only 2 left!

0

6

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

7

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

9

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

10

Echo 130016-42031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

11

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

12

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

13

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 7

0

14

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

14

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

Note: CANADA MODELS

$21.99

$

In Stock, Qty 20+

0
