TC-210 - Echo Tiller Cultivator (SN: E13912001001 - E13912999999) Fuel System S/N: E13912017537 - E13912999999 Parts Diagram

Tiller Cultivator

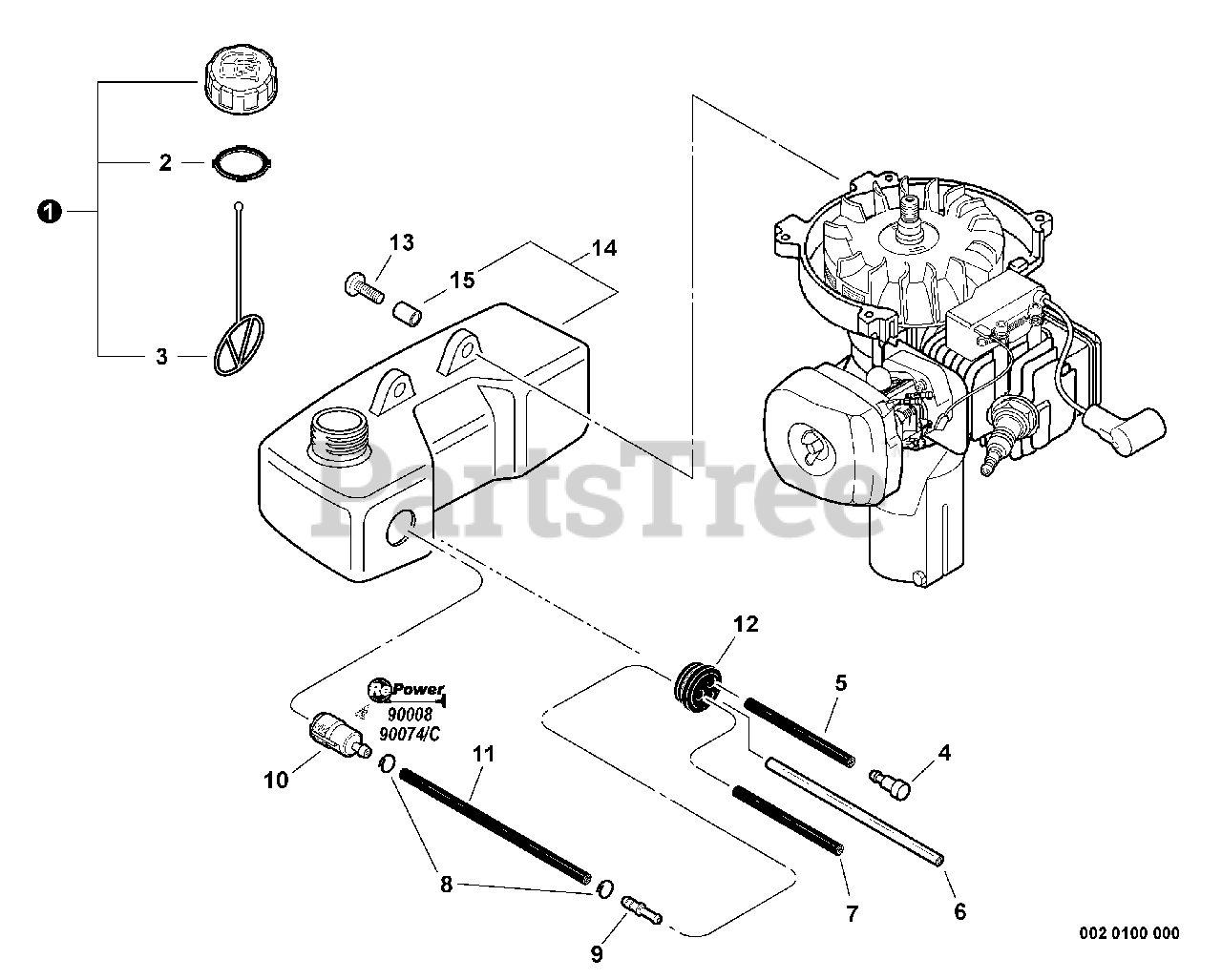

Fuel System S/N: E13912017537 - E13912999999 Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY - ORANGE

Note: Includes ITEMS 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo A356000030

VENT, FUEL TANK
(Superseded to A356000031)

$7.99

$

In Stock, Qty 20+

0

5

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

6

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

7

Echo V471003720

PIPE - 3X5X70 -- BLACK
(Superseded to V471005610)

Note: RePower BULK OPTION: N/A

$3.49

$

In Stock, only 3 left!

0

8

Echo V490001240

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

10

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

11

Echo V471003730

PIPE - 3X5X140 -- BLACK
(Superseded to V471003731)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, only 3 left!

0

12

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

13

Echo 90027505015

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 19

0

14

Echo A350000300

FUEL TANK ASSY

Note: Includes ITEM 15

$22.99

$

In Stock, Qty 11

0

15

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

16

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

16

Echo 90074C

RePower TUNE-UP KIT
(Superseded to 90152)

Note: CANADA MODELS

$20.99

$

In Stock, Qty 20+

0

17

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0
