TC-210 - Echo Tiller Cultivator (SN: E14714001001 - E14714999999) Fuel System Parts Diagram

Tiller Cultivator

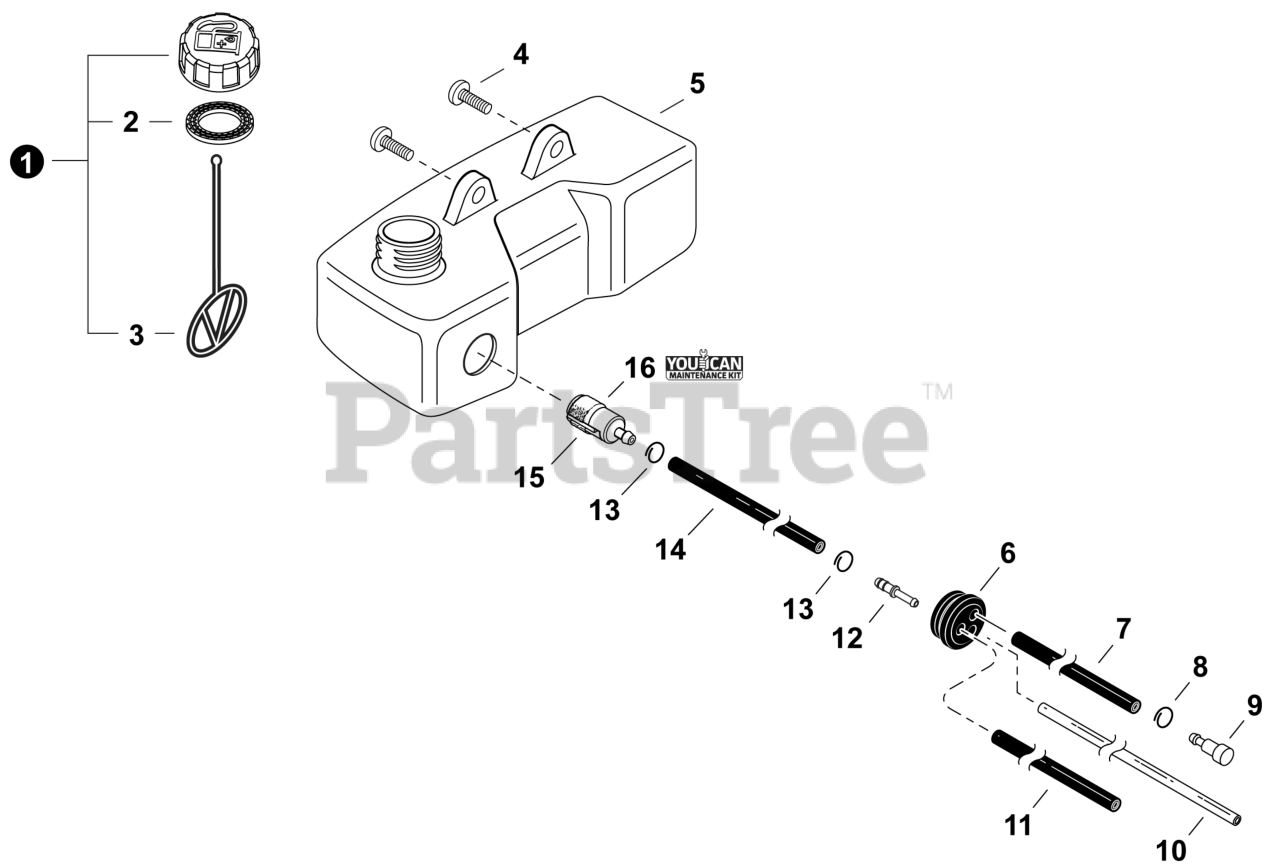

Fuel System Parts Diagram

  • Title

1

Echo P021034481

CAP ASSY, FUEL

Note: Includes Items 2-3

$6.49

$

Usually ships in 2-4 days

0

2

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

4

Echo 90027505015

SCREW 5x15

$0.99

$

In Stock, Qty 19

0

5

Echo A350002651

TANK ASSY, FUEL

$17.99

$

Usually ships in 2-4 days

0

6

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 20+

0

7

Echo V471001201

PIPE, FUEL 3x5x70 BLACK

$1.99

$

In Stock, Qty 20+

0

8

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

9

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 20+

0

10

Echo 13201049030

PIPE, FUEL 3x6x50 YELLOW

$1.99

$

In Stock, Qty 20+

0

11

Echo V471005610

PIPE, FUEL 3x5.5x70 BLACK

$3.49

$

In Stock, only 2 left!

0

12

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

13

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

14

Echo V471003731

PIPE, FUEL 3x5x140 BLACK

$1.49

$

In Stock, only 2 left!

0

15

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

16

Echo 90152Y

TUNE-UP KIT - YOUCANT

$20.99

$

In Stock, Qty 20+

0
