TC-2100 - Echo Tiller Cultivator (Type 1) (SN: 001001 - 999999) Carburetor -- C1U-K27A S/N: 001001-011089 Parts Diagram

Tiller Cultivator (Type 1)

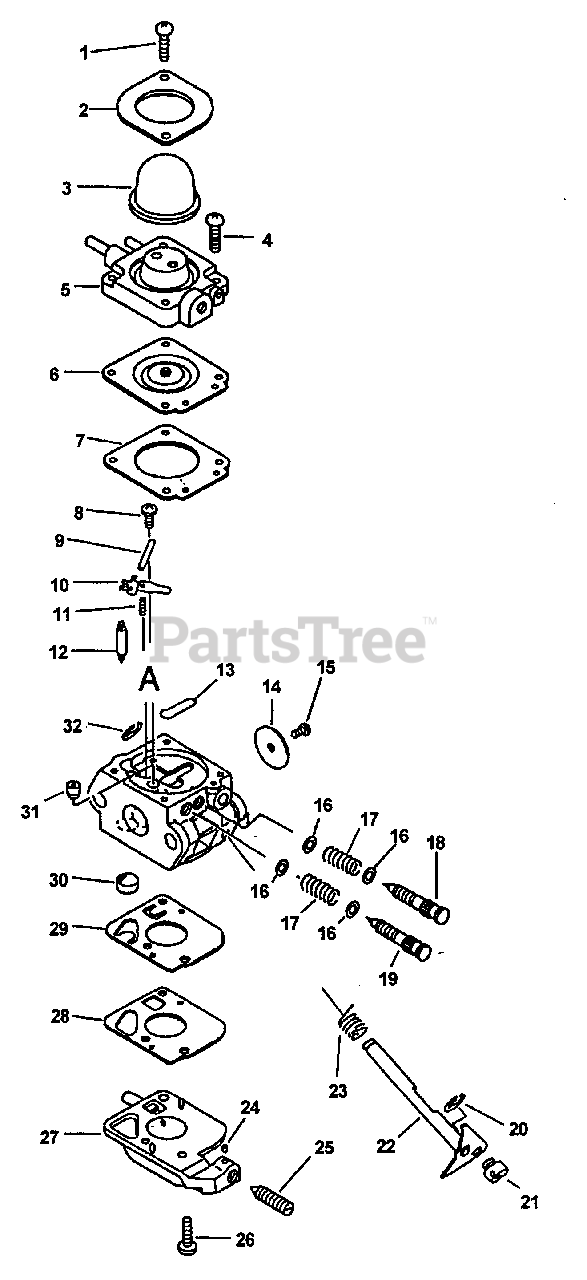

Carburetor -- C1U-K27A S/N: 001001-011089 Parts Diagram

  • Title

Echo 12520011821

CARBURETOR C1U-K27A
(Superseded to 12520011822)

Note: Includes ITEMS 1-32

$92.99

$

In Stock, only 3 left!

0

1

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536308360

RETAINER, PURGE BULB

$2.49

$

In Stock, only 1 left!

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

5

Echo 12538305360

BASE, PURGE

$21.99

$

Usually ships in 2-4 days

0

6

Echo A B

DIAPHRAGM, METERING

$

$

Currently unavailable

7

Echo A B

GASKET, METERING DIAPHRAGM

$

$

Currently unavailable

8

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

9

Echo A

BASE, PURGE

$

$

Currently unavailable

10

Echo A

BASE, PURGE

$

$

Currently unavailable

10

Echo 12530012820

REPAIR KIT

$15.99

$

In Stock, Qty 12

0

11

Echo A

BASE, PURGE

$

$

Currently unavailable

12

Echo A

BASE, PURGE

$

$

Currently unavailable

13

Echo A

BASE, PURGE

$

$

Currently unavailable

14

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

15

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

16

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

17

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

18

Echo 12531851330

NEEDLE - MIXTURE
(Superseded to Discontinued)

$

$

Not available

19

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

20

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

21

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

22

Echo 12531711820

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

23

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

24

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

26

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

28

Echo A B

GASKET, FUEL PUMP

$

$

Currently unavailable

29

Echo A B

DIAPHRAGM, PUMP

$

$

Currently unavailable

30

Echo A B

STRAINER

$

$

Currently unavailable

30

Echo 12530012820

REPAIR KIT

$15.99

$

In Stock, Qty 12

0

31

Echo 12537642030

NOZZLE, CHECK VALVE

$4.99

$

In Stock, only 1 left!

0

32

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

A

Echo 12530005360

REPAIR KIT
(Superseded to 12530006560)

$18.99

$

Usually ships in 2-4 days

0

B

Echo 12530305360

DIAPHRAGM/GASKET KIT
(Superseded to 12530306560)

$9.49

$

In Stock, only 1 left!

0
