TC-2100 - Echo Tiller Cultivator (Type 1) (SN: 001001 - 999999) Carburetor -- C1U-K54 S/N: 014147 - 999999 Parts Diagram

Tiller Cultivator (Type 1)

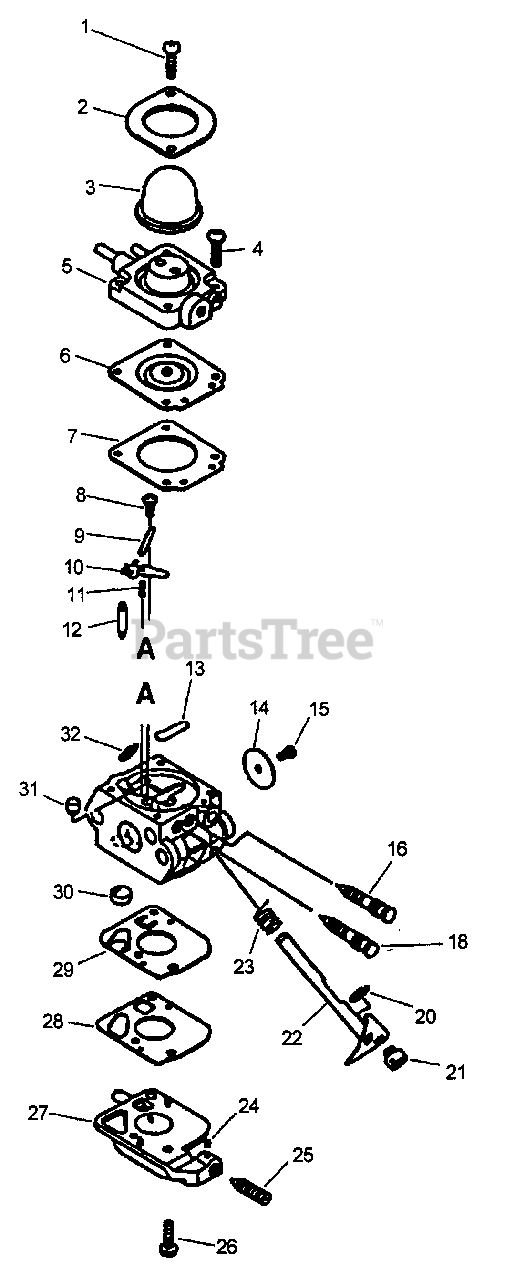

Carburetor -- C1U-K54 S/N: 014147 - 999999 Parts Diagram

  • Title

Echo 12520013120

CARBURETOR - C1U-K54
(Superseded to 12520013121)

Note: Includes ITEMS 1-32

$110.99

$

In Stock, Qty 8

0

1

Echo P005000980

SCREW

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536308560

RETAINER, PURGE BULB

$2.49

$

In Stock, only 1 left!

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW

$0.99

$

In Stock, Qty 8

0

5

Echo 12538305360

BODY ASSY, PURGE

$25.99

$

In Stock, only 2 left!

0

6

Echo A B

DIAPHRAGM, METERING

$

$

Currently unavailable

7

Echo A B

GASKET, METERING DIAPHRAGM

$

$

Currently unavailable

8

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

9

Echo A

BASE, PURGE

$

$

Currently unavailable

10

Echo A

BASE, PURGE

$

$

Currently unavailable

11

Echo A

BASE, PURGE

$

$

Currently unavailable

12

Echo A

BASE, PURGE

$

$

Currently unavailable

13

Echo A

BASE, PURGE

$

$

Currently unavailable

14

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

15

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

16

Echo 12531813120

NEEDLE, MIXTURE

$5.99

$

Usually ships in 2-4 days

0

18

Echo 12532013310

NEEDLE, HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

20

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

21

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

22

Echo 12531713310

SHAFT, THROTTLE

$7.99

$

In Stock, only 1 left!

0

23

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

24

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

26

Echo 12531012820

SCREW

$1.49

$

Usually ships in 2-4 days

0

27

Echo 125324-12820

COVER, FUEL PUMP

$12.99

$

Usually ships in 2-4 days

0

28

Echo A B

GASKET, FUEL PUMP

$

$

Currently unavailable

29

Echo A B

DIAPHRAGM, PUMP

$

$

Currently unavailable

30

Echo A

BASE, PURGE

$

$

Currently unavailable

31

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

32

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

A

Echo 12530013120

REBUILD KIT

$20.99

$

In Stock, only 2 left!

0

B

Echo 12530320560

GASKET / DIAPHRAGM KIT

$10.99

$

In Stock, only 2 left!

0
