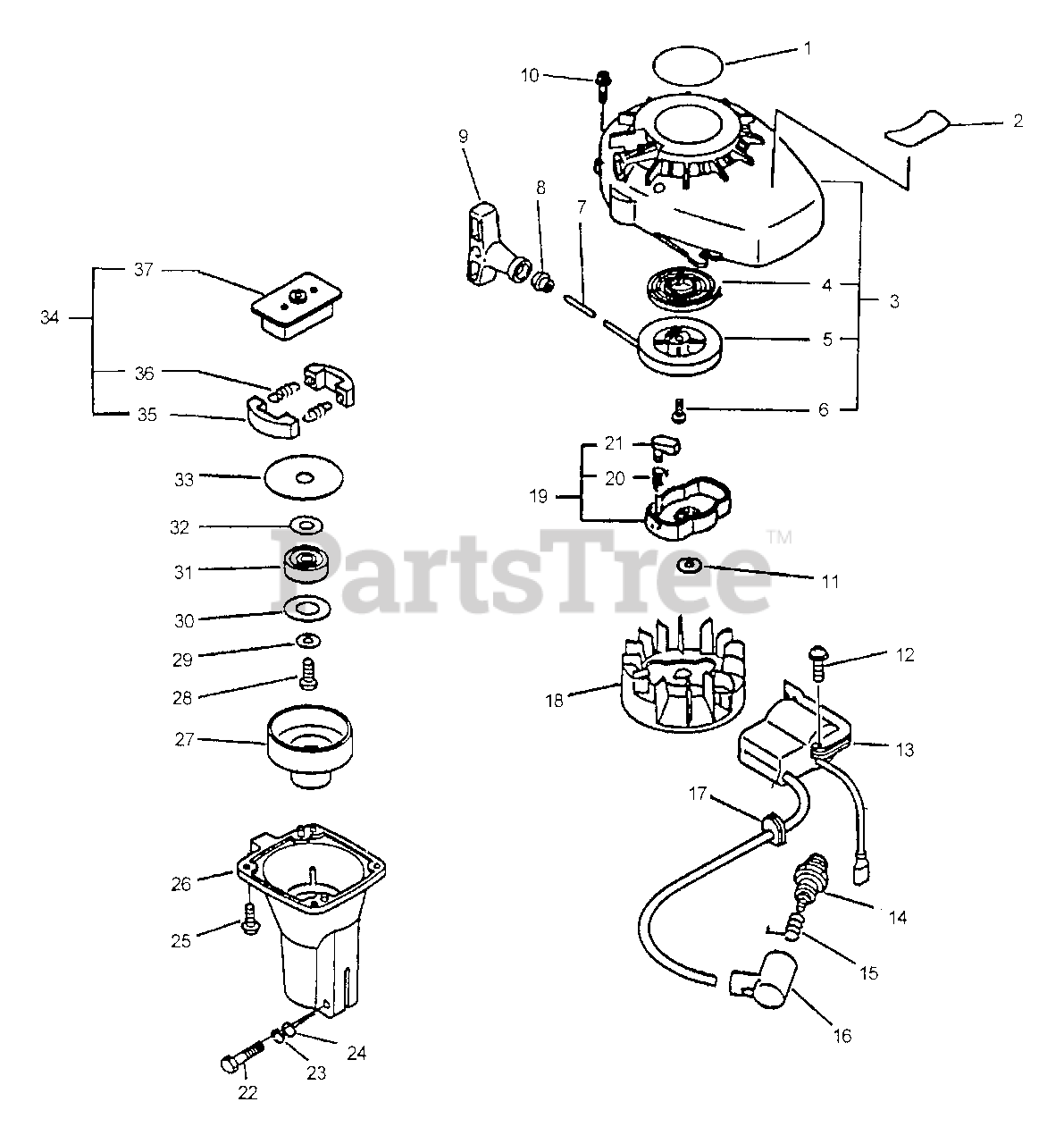

TC-2100 - Echo Tiller Cultivator (Type 1) (SN: 001001 - 999999) Clutch, Ignition, Starter Parts Diagram

Tiller Cultivator (Type 1)

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

2

Echo 89011211760

LABEL, TC-2100

$4.49

$

Usually ships in 2-4 days

0

3

Echo 17720006562

STARTER ASSY
(Superseded to 17720012220)

Note: INCLUDES ITEMS 4-9 S/N: 001001 - 011089

$105.99

$

In Stock, only 1 left!

0

3

Echo 17720012220

STARTER ASSY
(Superseded to 17720006563)

Note: INCLUDES ITEMS 4-9 S/N: 011090 - 999999

$105.99

$

In Stock, only 1 left!

0

4

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

5

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

Note: S/N: 001001 - 011089

$10.99

$

In Stock, Qty 7

0

5

Echo 177215-44430

REEL, ROPE

Note: S/N: 011090 - 999999

$10.99

$

In Stock, Qty 7

0

6

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

7

Echo 99944440000

BULK STARTER ROPE - Ø 3.0 MM×61 M

$35.99

$

In Stock, only 2 left!

0

8

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

9

Echo 177228-06530

GRIP, STARTER

Note: S/N: 001001 - 011089

$5.99

$

In Stock, Qty 5

0

9

Echo 17722811120

GRIP, STARTER

Note: S/N: 011090 - 999999

$6.99

$

Usually ships in 2-4 days

0

10

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

11

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

13

Echo 15062611521

COIL, IGNITION
(Superseded to 15662611820)

Note: S/N: 001001 - 006089

$

$

Not available

13

Echo 15662611520

COIL, IGNITION
(Superseded to 15062611521)

Note: S/N: 006090 - 320441

$

$

Not available

13

Echo 15662611820

COIL, IGNITION
(Superseded to Discontinued)

Note: S/N: 320442 - 999999

$

$

Not available

14

Echo 15901012330

SPARK PLUG - BPM6A
(Superseded to Discontinued)

$

$

Not available

14

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

15

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

16

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

17

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

18

Echo 15080144330

FLYWHEEL
(Superseded to 15680144330)

Note: S/N: 001001 - 006089

$135.99

$

Usually ships in 2-4 days

0

18

Echo 15680144330

FLYWHEEL

Note: S/N: 006090 - 999999

$135.99

$

Usually ships in 2-4 days

0

19

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 20-21 S/N: 001001 - 014146

$11.99

$

In Stock, Qty 9

0

19

Echo 17720212220

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 20-21 S/N: 014147 - 999999

$19.99

$

In Stock, only 2 left!

0

20

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

21

Echo 177218-44330

PAWL, STARTER - BLACK

Note: S/N: 014147 - 999999 - QTY = 2

$4.49

$

In Stock, Qty 20+

0

22

Echo 90011505025

BOLT - 5×25
(Superseded to 13041611520)

Note: S/N: 001001 - 013593

$

$

Not available

22

Echo 13041611520

BOLT 5
(Superseded to Discontinued)

Note: S/N: 013594 - 999999

$

$

Not available

23

Echo 900605-00005

WASHER, SPRING 5

Note: S/N: 001001 - 013593

$0.99

$

In Stock, Qty 9

0

24

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: S/N: 001001 - 013593

$0.99

$

In Stock, Qty 20+

0

25

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 6

0

26

Echo 61022311520

CASE, CLUTCH

$73.99

$

Usually ships in 2-4 days

0

27

Echo 17501004633

DRUM, CLUTCH
(Superseded to 17501004634)

$36.99

$

Usually ships in 2-4 days

0

28

Echo 90023806012

SCREW 6×12

$0.99

$

Usually ships in 2-4 days

0

29

Echo 17501411520

WASHER, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

30

Echo 17504404630

SPACER

$1.99

$

Usually ships in 2-4 days

0

31

Echo 90080836000

BEARING, BALL 6000-2RLB

$18.99

$

Usually ships in 2-4 days

0

32

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

33

Echo 17501904630

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

34

Echo 17500007531

CLUTCH ASSY

Note: INCLUDES ITEMS 35 - 37

$70.99

$

Usually ships in 2-4 days

0

35

Echo 17500905131

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

36

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

37

Echo 17501605020

HUB, CLUTCH

$12.99

$

Usually ships in 2-4 days

0
