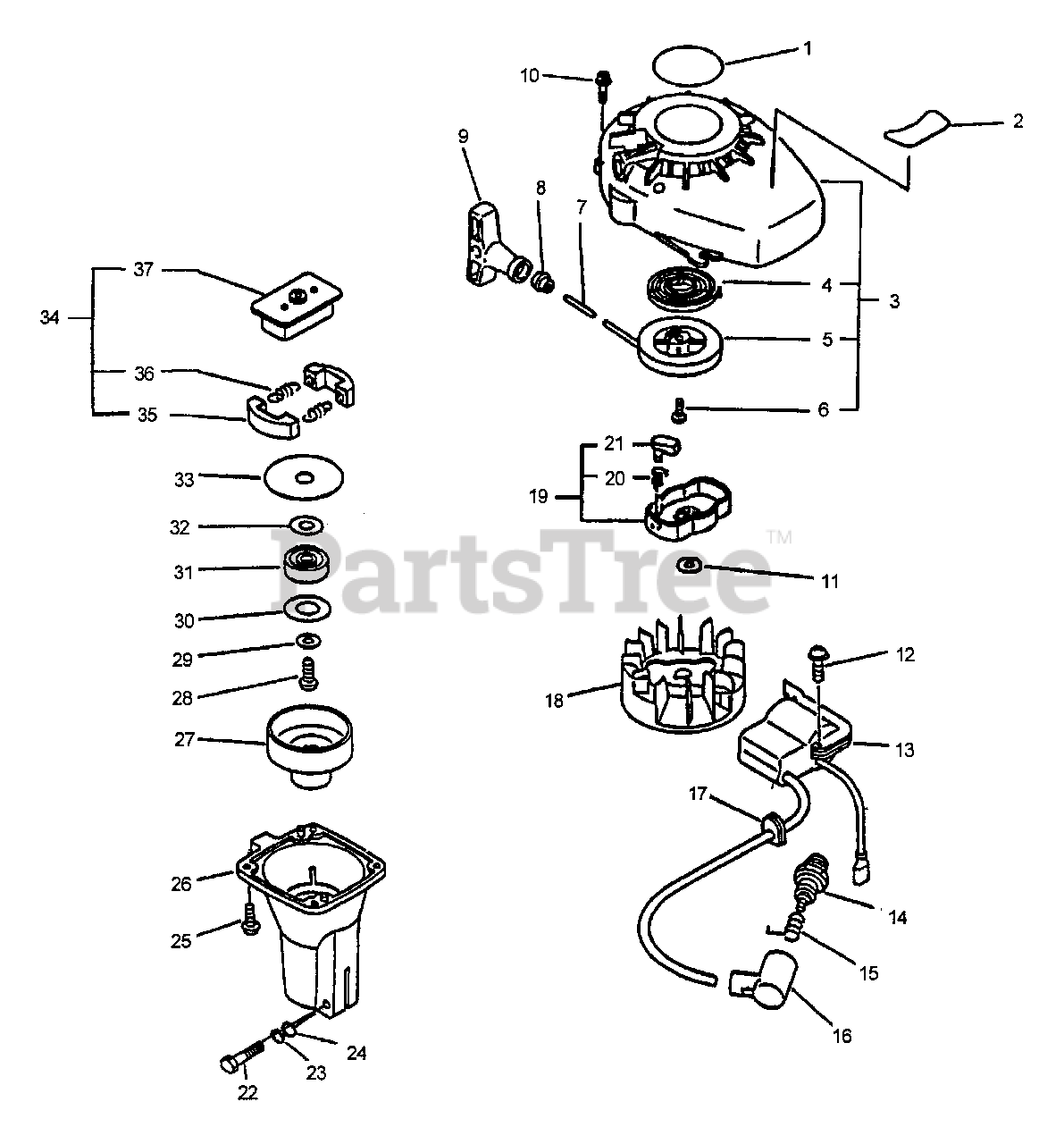

TC-2100 - Echo Tiller Cultivator (Type 1) (SN: 001001 - 999999) Clutch, Ignition, Starter Parts Diagram

Tiller Cultivator (Type 1)

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

2

Echo 89011211760

LABEL - MODEL TC-2100 TYPE 1E

$3.99

$

Usually ships in 2-4 days

0

3

Echo 17720006562

STARTER ASSY
(Superseded to 17720012220)

Note: INCLUDES ITEMS 4-9

$97.99

$

In Stock, only 2 left!

0

3

Echo 17720012220

STARTER ASSY
(Superseded to 17720006563)

Note: INCLUDES ITEMS 4-9

$97.99

$

In Stock, only 2 left!

0

4

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

5

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$9.99

$

In Stock, only 3 left!

0

5

Echo 17721544430

REEL, ROPE

$9.99

$

In Stock, only 3 left!

0

6

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 10

0

7

Echo 99944440000

RePower BULK ROPE - 200 FEET

$33.99

$

In Stock, only 4 left!

0

8

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

9

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 8

0

9

Echo 17722811120

GRIP, STARTER

$6.49

$

Usually ships in 2-4 days

0

10

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

11

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

13

Echo 15062611521

COIL, IGNITION
(Superseded to 15662611820)

$

$

Not available

13

Echo 15662611520

COIL, IGNITION
(Superseded to 15062611521)

$

$

Not available

13

Echo 15662611820

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

14

Echo 15901012330

SPARK PLUG -- BPM-6A
(Superseded to Discontinued)

$

$

Not available

14

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

15

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

16

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 8

0

17

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

18

Echo 15080144330

FLYWHEEL
(Superseded to 15680144330)

$125.99

$

Usually ships in 2-4 days

0

18

Echo 15680144330

FLYWHEEL

$125.99

$

Usually ships in 2-4 days

0

19

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 20-21

$18.99

$

In Stock, Qty 7

0

19

Echo 17720212220

STARTER PAWL ASSY

Note: INCLUDES ITEMS 20-21

$18.99

$

In Stock, Qty 7

0

20

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

21

Echo 17721844330

PAWL, STARTER - BLACK

$3.99

$

In Stock, Qty 20+

0

22

Echo 90011505025

BOLT - 5X25
(Superseded to 13041611520)

$

$

Not available

22

Echo 13041611520

BOLT - 5X25
(Superseded to Discontinued)

$

$

Not available

23

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 2 left!

0

24

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 19

0

26

Echo 61022311520

CASE, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

27

Echo 17501004633

DRUM, CLUTCH
(Superseded to 17501004634)

$33.99

$

Usually ships in 2-4 days

0

28

Echo 90023806012

SCREW - 6X12

$0.99

$

Usually ships in 2-4 days

0

29

Echo 17501411520

WASHER, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

30

Echo 17504404630

WASHER, CLUTCH

$1.49

$

Usually ships in 2-4 days

0

31

Echo 90080836000

BEARING, BALL - 6000

$17.99

$

Usually ships in 2-4 days

0

32

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 17

0

33

Echo 17501904630

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

34

Echo 17500007531

CLUTCH ASSY

Note: INCLUDES ITEMS 35 - 37

$65.99

$

Usually ships in 2-4 days

0

35

Echo 17500905131

SHOE, CLUTCH

$23.99

$

In Stock, only 2 left!

0

36

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

37

Echo 17501605020

HUB, CLUTCH

$11.99

$

Usually ships in 2-4 days

0
