TC-2100 - Echo Tiller Cultivator (Type 1) (SN: 001001 - 999999) Crankcase, Cylinder Cover, Engine, Muffler Parts Diagram

Tiller Cultivator (Type 1)

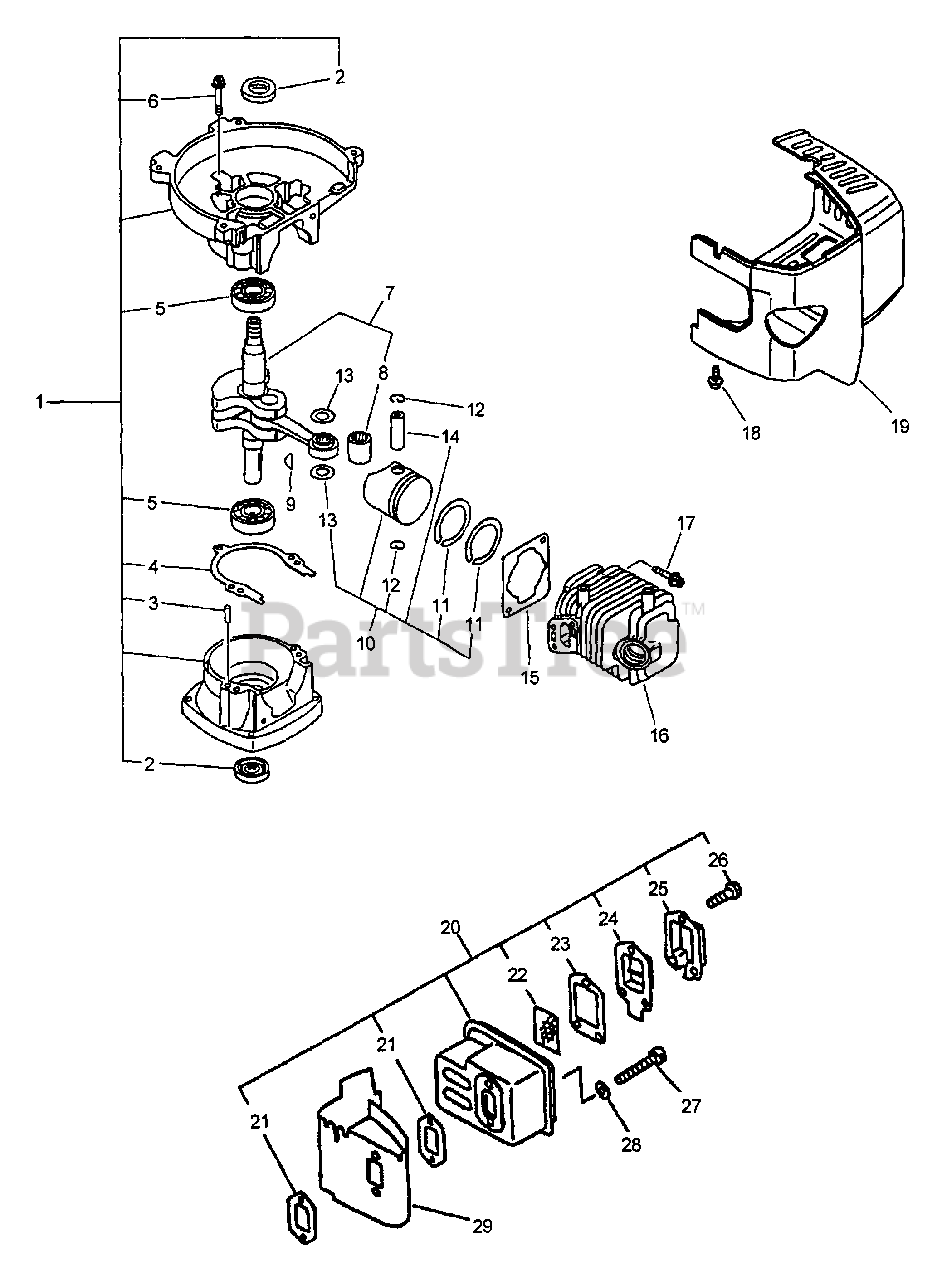

Crankcase, Cylinder Cover, Engine, Muffler Parts Diagram

  • Title

Echo SB1021

SHORT BLOCK TC-2100
(Superseded to Discontinued)

$

$

Not available

1

Echo 10020411520

CRANKCASE KIT
(Superseded to 10020411521)

Note: INCLUDES ITEMS 2 - 6

$155.99

$

Usually ships in 2-4 days

0

2

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

3

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

4

GASKET, CRANKCASE

Note: Included in GASKET KIT 88900045131

$

$

Not available

5

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

6

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

7

Echo 10010011521

CRANKSHAFT ASSY
(Superseded to 10010011522)

Note: Includes ITEM 8 S/N: 001001 - 011089

$

$

Not available

7

Echo 10010013120

CRANKSHAFT ASSY
(Superseded to 10010013121)

Note: Includes ITEM 8 S/N: 011090 - 999999

$

$

Not available

8

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

9

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

10

Echo 10000011520

PISTON KIT
(Superseded to 10000011521)

Note: Includes ITEMS 11-14

$77.99

$

In Stock, only 2 left!

0

11

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

12

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

13

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

14

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

15

Echo 101010-44332

GASKET, CYLINDER

Note: Included in GASKET KIT 88900045131

$4.99

$

In Stock, Qty 7

0

16

Echo 101011-45230

CYLINDER

Note: S/N: 001001 - 011089

$153.99

$

Usually ships in 2-4 days

0

16

Echo 10101106562

CYLINDER

Note: S/N: 011090 - 999999

$130.99

$

Usually ships in 2-4 days

0

17

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

18

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

19

Echo 10150613121

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

20

Echo 14580011820

MUFFLER ASSY
(Superseded to 14580011821)

Note: INCLUDES ITEMS 21-26

$

$

Not available

21

Echo V104000160

GASKET, EXHAUST

Note: Included in GASKET KIT 88900045131

$2.49

$

In Stock, Qty 20+

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

23

Echo 145866-42031

GASKET, EXHAUST

Note: Included in GASKET KIT 88900045131

$2.99

$

In Stock, only 2 left!

0

24

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

25

Echo 14586306960

GUIDE, EXHAUST - INNER
(Superseded to 14586311520)

$5.49

$

Usually ships in 2-4 days

0

26

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

27

Echo 90010505050

BOLT M5×50

$1.99

$

In Stock, Qty 11

0

28

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

29

Echo 14587105360

COVER, MUFFLER

$11.99

$

Usually ships in 2-4 days

0
