TC-2100 - Echo Tiller Cultivator (Type 1) (SN: 001001 - 999999) Crankcase, Cylinder Cover, Engine, Muffler Parts Diagram

Tiller Cultivator (Type 1)

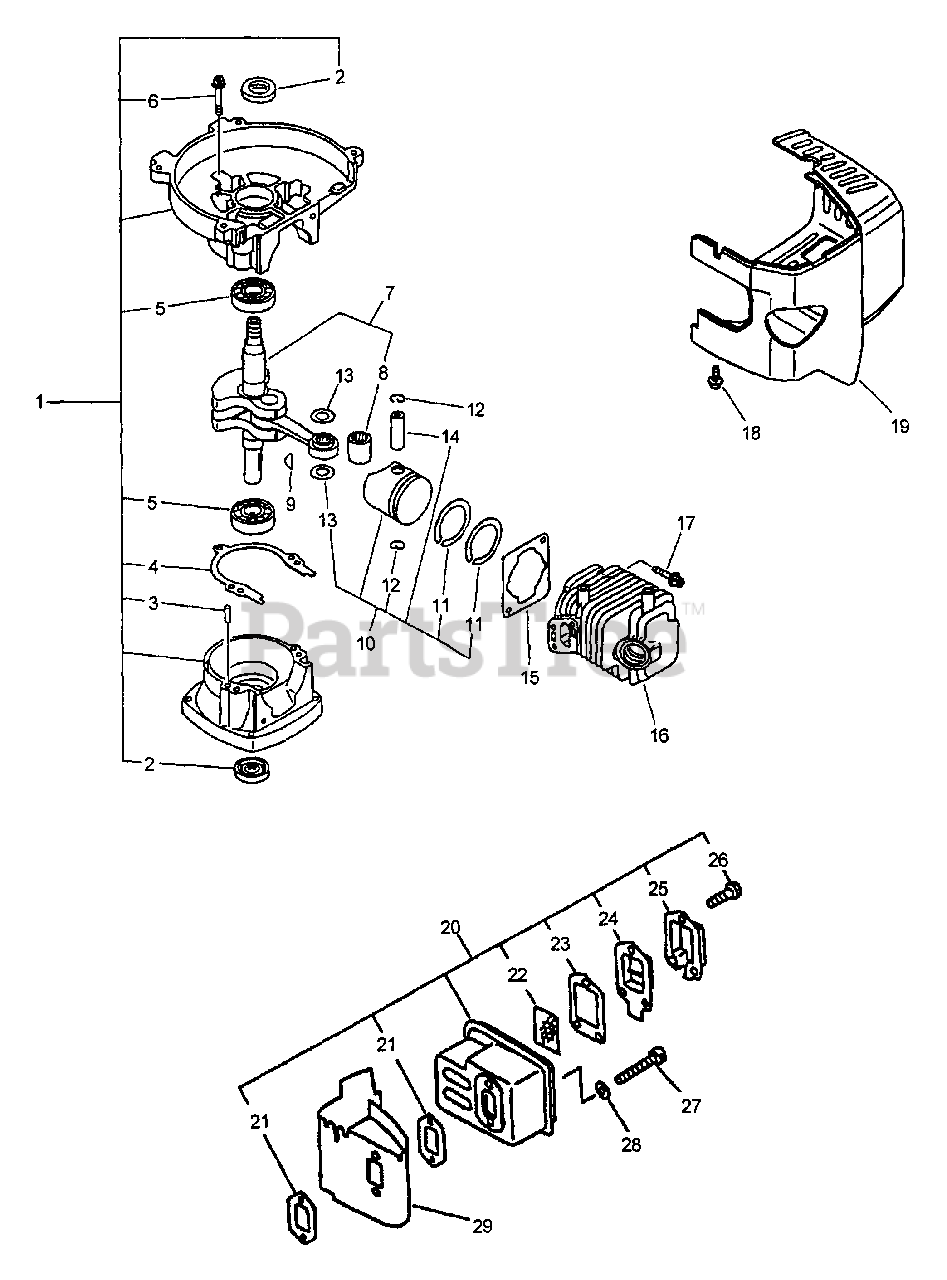

Crankcase, Cylinder Cover, Engine, Muffler Parts Diagram

  • Title

Echo SB1021

SHORT BLOCK -- SB1021
(Superseded to Discontinued)

$

$

Not available

1

Echo 10020411520

CRANKCASE KIT
(Superseded to 10020411521)

Note: INCLUDES ITEMS 2 - 6

$129.99

$

Usually ships in 2-4 days

0

2

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

3

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

4

------------------

GASKET, CRANKCASE

$

$

Not available

5

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

6

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

7

Echo 10010011521

CRANKSHAFT ASSY
(Superseded to 10010011522)

Note: Includes ITEM 8

$

$

Not available

7

Echo 10010013120

CRANKSHAFT ASSY
(Superseded to 10010013121)

Note: Includes ITEM 8

$

$

Not available

8

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

9

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

10

Echo 10000011520

PISTON KIT
(Superseded to 10000011521)

Note: Includes ITEMS 11-14

$77.99

$

In Stock, only 1 left!

0

11

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

12

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

13

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

14

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

15

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 20+

0

16

Echo 10101145230

CYLINDER

$127.99

$

Usually ships in 2-4 days

0

16

Echo 10101106562

CYLINDER

$109.99

$

Usually ships in 2-4 days

0

17

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

18

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 13

0

19

Echo 10150613121

COVER, ENGINE - GRAY
(Superseded to Discontinued)

$

$

Not available

20

Echo 14580011820

MUFFLER ASSY
(Superseded to 14580011821)

Note: INCLUDES ITEMS 21-26

$

$

Not available

21

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

22

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

23

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

24

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 9

0

25

Echo 14586306960

GUIDE, EXHAUST - OUTER
(Superseded to 14586311520)

$4.49

$

Usually ships in 2-4 days

0

26

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

27

Echo 90010505050

SCREW - 5X50

$1.49

$

In Stock, Qty 6

0

28

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

29

Echo 14587105360

SHIELD, EXHAUST

$9.99

$

Usually ships in 2-4 days

0
