TC-2100 - Echo Tiller Cultivator (Type 1E) (SN: 001001 - 999999) Carburetor S/N: 001001-021232, Canada - 001001-018676 Parts Diagram

Tiller Cultivator (Type 1E)

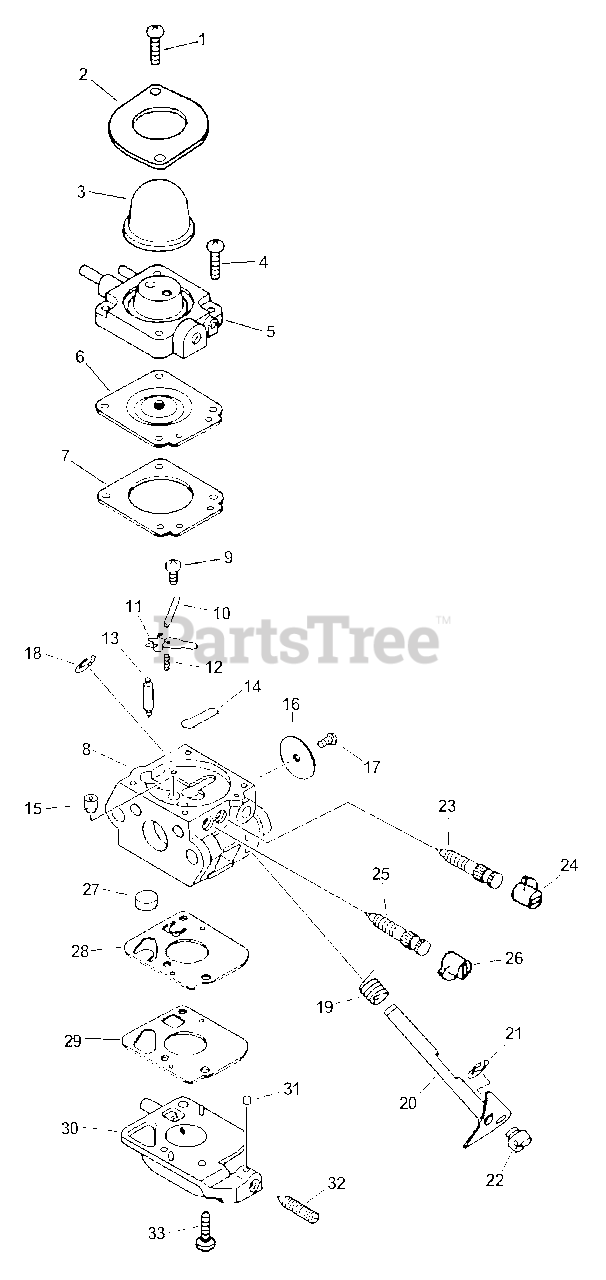

Carburetor S/N: 001001-021232, Canada - 001001-018676 Parts Diagram

  • Title

Echo 12520013122

CARBURETOR - C1U-K54
(Superseded to 12520013123)

Note: Includes ITEMS 1-33

$110.99

$

In Stock, Qty 8

0

1

Echo P005000980

SCREW

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536308560

RETAINER, PURGE BULB

$2.49

$

In Stock, only 1 left!

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW

$0.99

$

In Stock, Qty 8

0

5

Echo 12538305360

BODY ASSY, PURGE

$25.99

$

In Stock, only 2 left!

0

6

DIAPHRAGM, METERING

Note: USE REPAIR KIT P/N 12530013120 & GASKET/DIAPHRAGM KIT P/N 12530313120

$

$

Not available

7

GASKET, METERING

Note: USE REPAIR KIT P/N 12530013120 & GASKET/DIAPHRAGM KIT P/N 12530313120

$

$

Not available

8

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

9

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

10

PIN, METERING LEVER

Note: USE REPAIR KIT P/N 12530013120

$

$

Not available

11

LEVER, METERING

Note: USE REPAIR KIT P/N 12530013120

$

$

Not available

12

SPRING, METERING LEVER

Note: USE REPAIR KIT P/N 12530013120

$

$

Not available

13

VALVE, INLET NEEDLE

Note: USE REPAIR KIT P/N 12530013120

$

$

Not available

14

PLUG, WELCH

Note: USE REPAIR KIT P/N 12530013120

$

$

Not available

15

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

16

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

17

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

18

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

19

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

20

Echo 12531713310

SHAFT, THROTTLE

$7.99

$

In Stock, only 1 left!

0

21

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

22

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

23

Echo 12531813120

NEEDLE, MIXTURE

$5.99

$

Usually ships in 2-4 days

0

24

Echo 12532909860

CAP, LIMITER - WHITE

$2.49

$

In Stock, Qty 12

0

25

Echo 12532013310

NEEDLE, HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

26

Echo 12532939030

CAP, LIMITER - RED

$1.99

$

In Stock, Qty 11

0

27

STRAINER

Note: USE REPAIR KIT P/N 12530013120

$

$

Not available

28

DIAPHRAGM, PUMP

Note: USE REPAIR KIT P/N 12530013120 & GASKET/DIAPHRAGM KIT P/N 12530313120

$

$

Not available

29

GASKET, PUMP

Note: USE REPAIR KIT P/N 12530013120 & GASKET/DIAPHRAGM KIT P/N 12530313120

$

$

Not available

30

Echo 125324-12820

COVER, FUEL PUMP

$12.99

$

Usually ships in 2-4 days

0

31

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

32

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

33

Echo 12531012820

SCREW

$1.49

$

Usually ships in 2-4 days

0

Echo 12530013120

REBUILD KIT

$20.99

$

In Stock, only 2 left!

0

Echo 12530313120

GASKET / DIAPHRAGM KIT

$10.99

$

In Stock, only 2 left!

0
