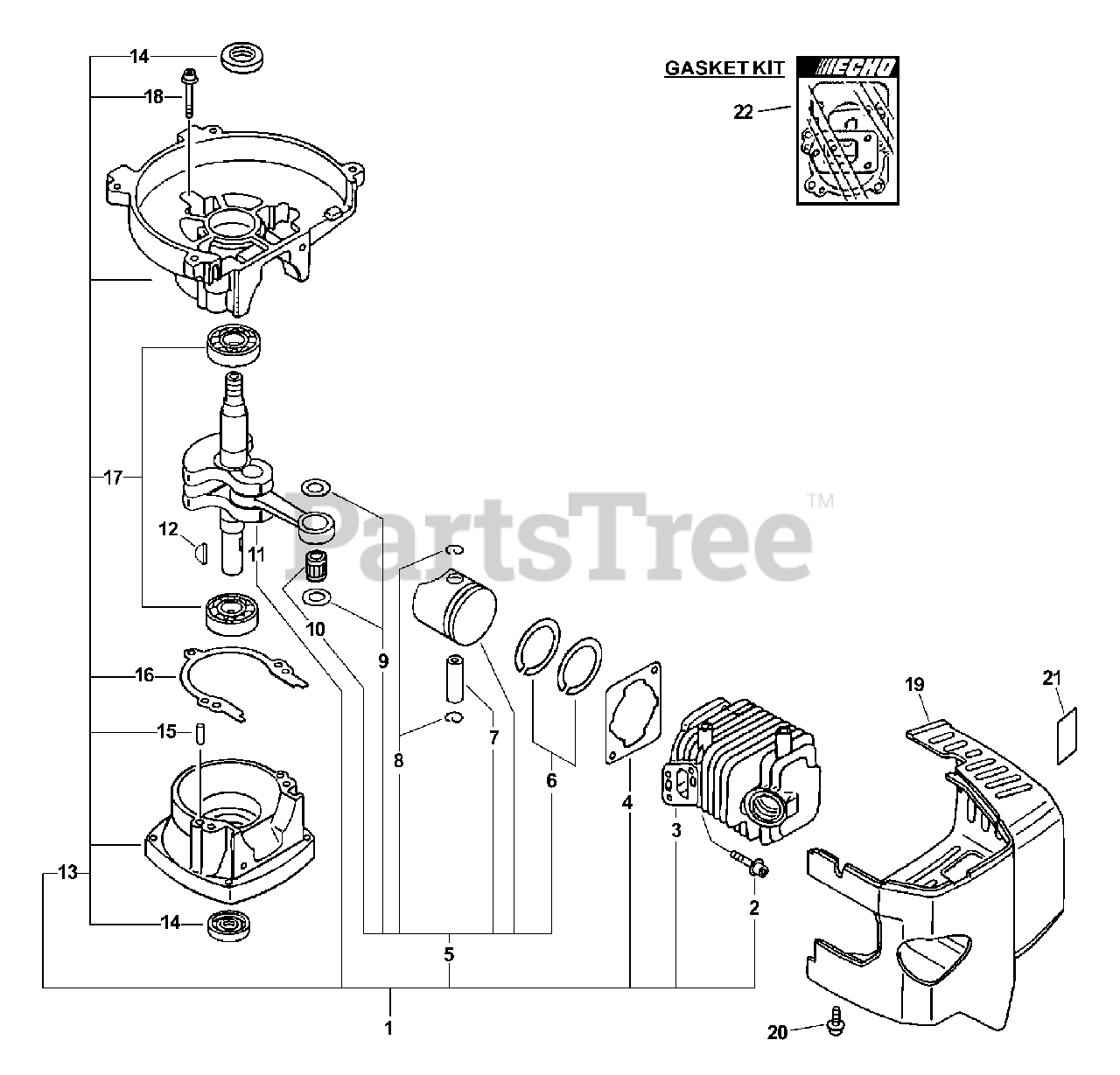

TC-2100 - Echo Tiller Cultivator (Type 1E) (SN: 001001 - 999999) Engine, Crankcase, Cylinder Cover Parts Diagram

Tiller Cultivator (Type 1E)

Engine, Crankcase, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1021

SHORT BLOCK TC-2100
(Superseded to Discontinued)

Note: Includes ITEM 2-18; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 10101106562

CYLINDER

$130.99

$

Usually ships in 2-4 days

0

4

Echo 101010-44332

GASKET, CYLINDER

Note: Included In GASKET KIT

$4.99

$

In Stock, Qty 6

0

5

Echo 10000048732

PISTON KIT

Note: Includes ITEMS 6-10

$77.99

$

In Stock, only 2 left!

0

6

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

Echo 10010013120

CRANKSHAFT ASSY
(Superseded to 10010013121)

$

$

Not available

12

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

13

Echo 10020411520

CRANKCASE KIT
(Superseded to 10020411521)

Note: Includes ITEMS 14-18

$155.99

$

Usually ships in 2-4 days

0

14

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

15

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

16

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

17

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

18

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

19

Echo 10150613121

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

20

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

21

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0

22

Echo 88900045131

GASKET KIT

$34.99

$

Usually ships in 2-4 days

0
