TC-2100 - Echo Tiller Cultivator (Type 1E) (SN: 001001 - 999999) Intake, Exhaust S/N: 001001-021232, Canada: 001001-018676 Parts Diagram

Tiller Cultivator (Type 1E)

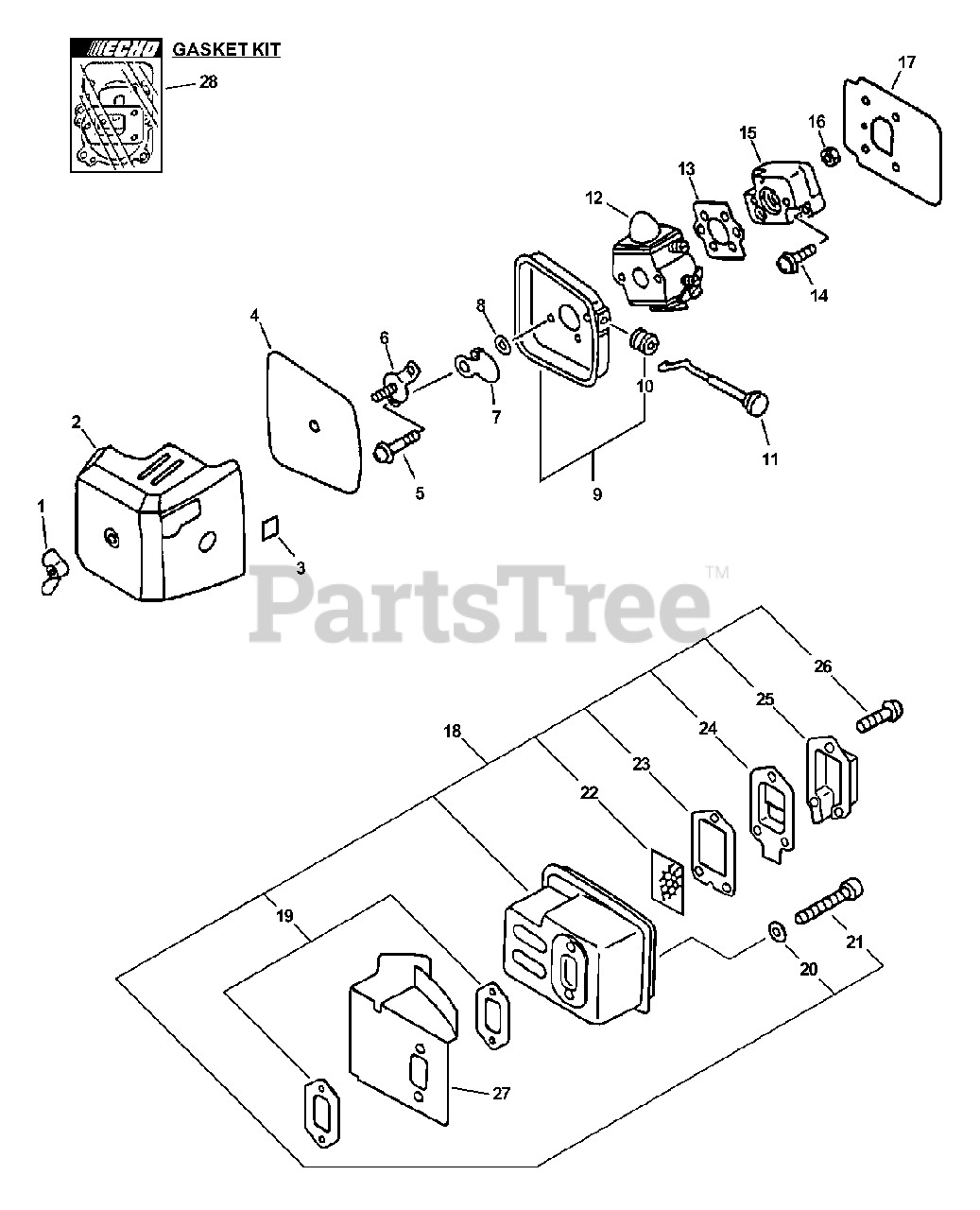

Intake, Exhaust S/N: 001001-021232, Canada: 001001-018676 Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 15

0

2

Echo 13032612822

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

3

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

3

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

4

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 7

0

5

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, Qty 13

0

6

Echo 13041005360

PLATE, PREVENT

$11.99

$

In Stock, only 2 left!

0

7

Echo 17851504560

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 10

0

8

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

9

Echo 13030104560

CASE, AIR FILTER

Note: Includes ITEM 10

$10.99

$

In Stock, only 2 left!

0

10

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

11

Echo 17851048830

ROD, CHOKE

$8.99

$

In Stock, only 2 left!

0

12

Echo 12520013122

CARBURETOR - C1U-K54
(Superseded to 12520013123)

$110.99

$

In Stock, Qty 7

0

13

Echo 130016-42031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

14

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, only 2 left!

0

15

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 20+

0

16

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

17

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 20+

0

18

Echo 14580011820

MUFFLER ASSY
(Superseded to 14580011821)

$

$

Not available

19

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

20

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010505050

BOLT M5×50

$1.99

$

In Stock, Qty 11

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

23

Echo 145866-42031

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 20+

0

24

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

25

Echo 14586306960

GUIDE, EXHAUST - INNER
(Superseded to 14586311520)

$5.49

$

Usually ships in 2-4 days

0

26

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

27

Echo 14587105360

COVER, MUFFLER

$11.99

$

Usually ships in 2-4 days

0

28

Echo 88900045131

GASKET KIT

$34.99

$

Usually ships in 2-4 days

0
