TC 238 (960510137-00) - Husqvarna 38" Garden Tractor (2015-03) MOWER DECK / CUTTING DECK Parts Diagram

38" Garden Tractor

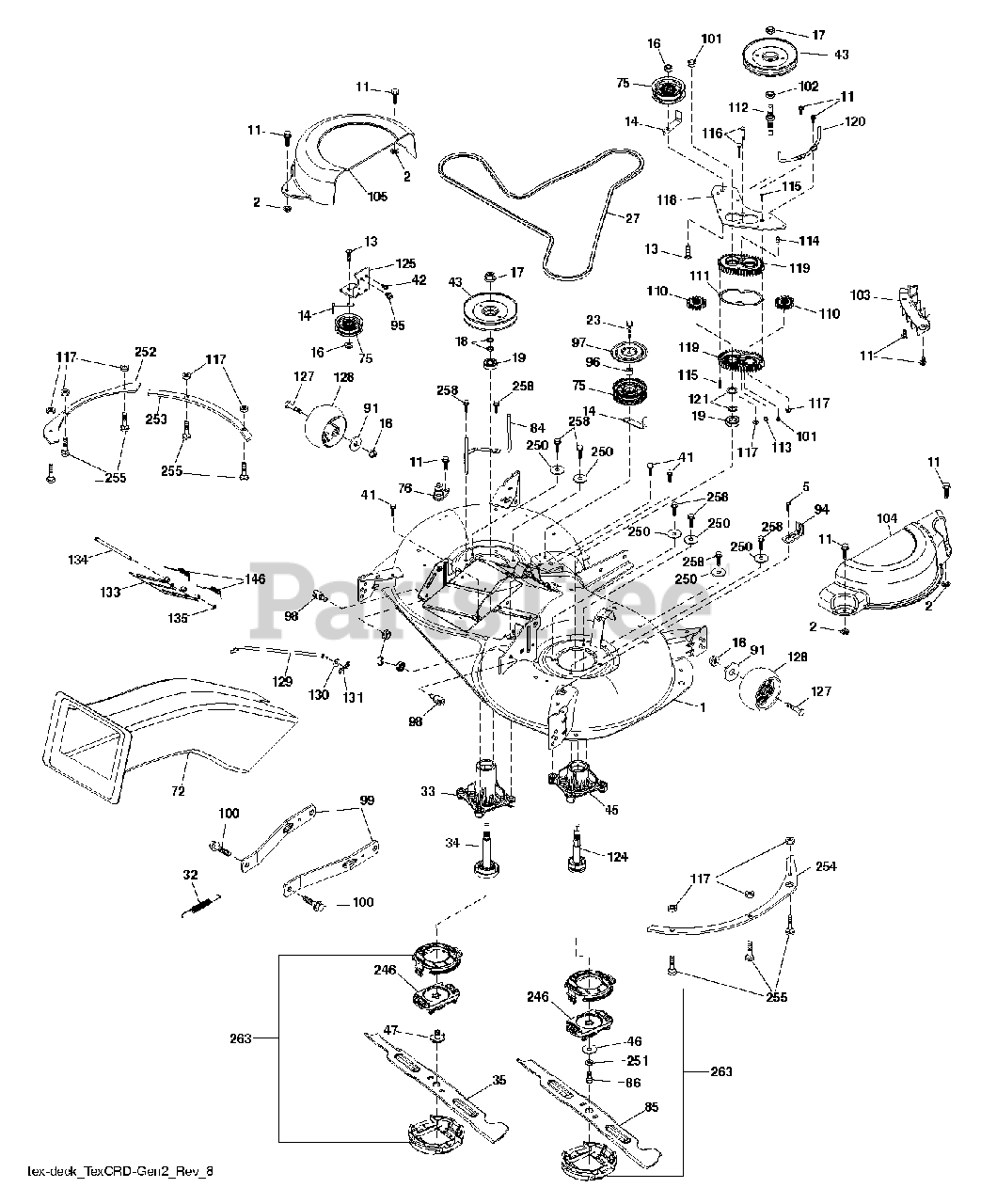

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 580465302

DECK.SVC.WLDT.97EL.TCRD.EZ.498
(Superseded to 583766801)

$302.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

Note: RH

$

$

Not available

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

23

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532445834

BELT 97CM ELECTRIC
(Superseded to 583581401)

$91.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532446205

SPRING 107CM & 97CM ELECTRIC D
(Superseded to 583584001)

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 580796101

HOUSING.MANDREL.REV.TALL.N/GRS
(Superseded to 587820201)

$37.99

$

Usually ships in 3-10 days

0

34

Husqvarna 580854701

SHAFT ASM.REV.TALL.N/GREASEBL
(Superseded to 587820201)

$37.99

$

Usually ships in 3-10 days

0

35

Husqvarna 580983301

BLADE.REVOLUTION.97CM.LHS

$36.99

$

Usually ships in 3-10 days

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

43

Husqvarna 532199789

PULLEY.MANDREL.5.0.PD.38"

$21.99

$

In Stock, only 1 left!

0

45

Husqvarna 581650801

RP HOUSING.MANDREL.REV.REVS.
(Superseded to 581650501)

$72.99

$

In Stock, only 1 left!

0

46

Husqvarna 585729901

3/8 FLAT WASHER

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD

$3.99

$

Usually ships in 3-10 days

0

72

Husqvarna 581454102

RB CHUTE 107/97 TEX GENII
(Superseded to 581454103)

$84.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

76

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

84

Husqvarna 532400140

BELT KEEPER.MANDREL.38"COATED

$53.99

$

Usually ships in 3-10 days

0

85

Husqvarna 580983401

BLADE.REVOLUTION.97CM.RHS

$36.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

91

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

94

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$6.49

$

In Stock, Qty 12

0

95

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

96

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

98

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

99

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

100

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

101

Husqvarna 873680900

NUT.CROWNLOCK.9/16 -18.UNC
(Superseded to 583612301)

$4.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

103

Husqvarna 532436992

GUARD GUARD FRONT VENT
(Superseded to 583514601)

$8.99

$

Usually ships in 3-10 days

0

104

Husqvarna 532438968

97.CRD.RH.MANDREL.COVER

$14.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532438744

MANDREL MANDREL COVER LH
(Superseded to 583534001)

$27.99

$

In Stock, only 1 left!

0

110

Husqvarna 587934801

CRD.SPUR.GEAR

$11.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532436979

GASKET GASKET GEARCASE
(Superseded to 583514001)

$6.49

$

Usually ships in 3-10 days

0

112

Husqvarna 532443852

SHAFT SHAFT. CRD GEARCASE ADAP
(Superseded to 583571601)

$17.99

$

In Stock, only 1 left!

0

113

Husqvarna 532438533

PLUG PLUG OIL
(Superseded to 583533001)

$

$

Not available

114

Husqvarna 532438534

VALVE VALVE RELIEF
(Superseded to 583533101)

$12.99

$

Usually ships in 3-10 days

0

115

Husqvarna 818031016

SCREW
(Superseded to 583608901)

$4.99

$

Usually ships in 3-10 days

0

116

Husqvarna 872110414

BOLT.CARIGE.SS.1/4-20X1.75GR5
(Superseded to 583611101)

$

$

Not available

117

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

118

Husqvarna 532436989

ARM ARM CLUTCHING
(Superseded to 583514401)

$17.99

$

Usually ships in 3-10 days

0

119

Husqvarna 532438166

GEARCASE GEARCASE SUBASM
(Superseded to 583527601)

$74.99

$

Usually ships in 3-10 days

0

120

Husqvarna 532436991

BRACKET KEEPER BELT RH
(Superseded to 583514501)

$9.99

$

In Stock, only 1 left!

0

121

Husqvarna 532436985

WASHER WASHER
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Husqvarna 581650701

SUB.ASM.REVERSE.THREAD.REV
(Superseded to 581650501)

$72.99

$

In Stock, only 1 left!

0

125

Husqvarna 532440420

BRACKET
(Superseded to 583548001)

$40.99

$

Usually ships in 3-10 days

0

127

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

128

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

129

Husqvarna 532443237

ROD ROD. SWAY CRD GEN II
(Superseded to 583568101)

$26.99

$

Usually ships in 3-10 days

0

130

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

133

Husqvarna 532435538

DOOR
(Superseded to 583505301)

$10.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532435861

PIN PIN.HINGE
(Superseded to 583507401)

$8.99

$

Usually ships in 3-10 days

0

135

Husqvarna 532437988

E-RING.5/16"

$4.99

$

Usually ships in 3-10 days

0

146

Husqvarna 532445896

SPRING SPRING: EZ MULCH DOOR
(Superseded to 583582001)

$2.99

$

Usually ships in 3-10 days

0

246

Husqvarna 580954003

HOLDER.BLADE.REVOLUTION

$194.99

$

In Stock, Qty 15

0

250

Husqvarna 819111212

WASHER

$8.99

$

Usually ships in 3-10 days

0

251

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

252

Husqvarna 585308705

PLATE.REINFORCEMENT.X431

$7.49

$

Usually ships in 3-10 days

0

253

Husqvarna 585308805

PLATE.REINFORCEMENT.LHS.X431

$

$

Not available

254

Husqvarna 585309005

PLATE.REINFORCEMENT.LHS.X431

$9.99

$

Usually ships in 3-10 days

0

255

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

258

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

263

Husqvarna 586638501

CAP.REVOLUTION ASM

$31.99

$

In Stock, Qty 14

0

--

Husqvarna 587126105

MANDREL.INT.SPACER.NONGRS.REV

$53.99

$

In Stock, Qty 20+

0

--

Husqvarna 581650501

MANDREL.ASM.SHORT.LH/THD.

$72.99

$

In Stock, only 1 left!

0

--

Husqvarna 588782901

DECK.SVC.TX97B.EL.EZ.REV.498

Note: Includes housing shaft assembly and bearing only- pulley /nut /washer and blade bolt /washers not included

$

$

Not available
