TC 238 (960510137-02) - Husqvarna 38" Garden Tractor (2016-10) SEAT Parts Diagram

38" Garden Tractor

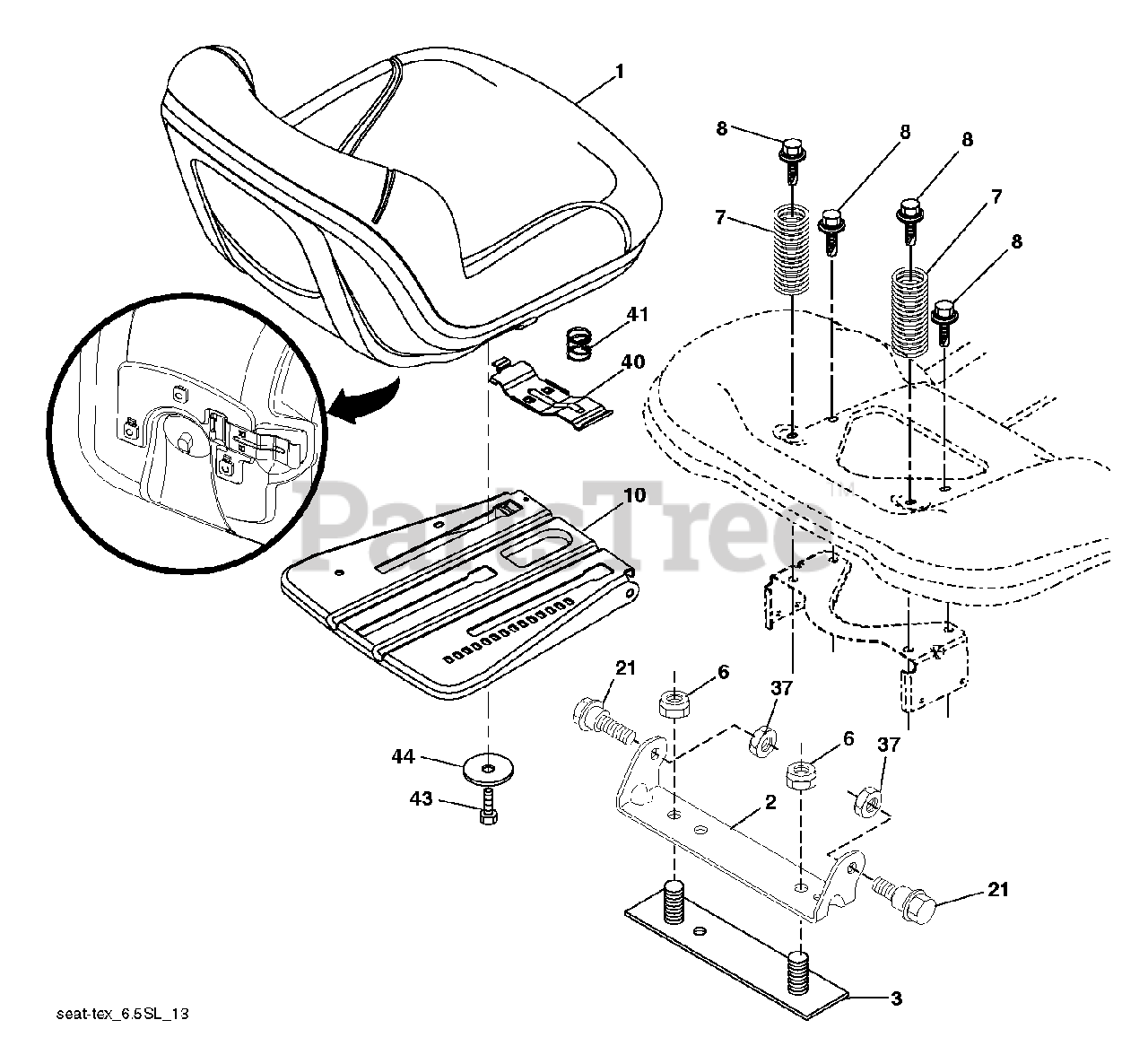

SEAT Parts Diagram

  • Title

1

Husqvarna 532439822

SEAT.TH150.MS498.GRY.HUSQ.TEX

$227.99

$

In Stock, Qty 6

0

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532140675

STRAP
(Superseded to 588090401)

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

7

Husqvarna 589483501

SPRING.COMPRESS.SEAT.

$9.49

$

In Stock, Qty 6

0

8

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$62.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587907801

BOLT.5/16-18X5/8.SHOULDER

$3.49

$

In Stock, Qty 8

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

40

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

41

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$3.49

$

In Stock, Qty 9

0

43

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 13

0

44

Husqvarna 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available
