TC 238 (960510185-00) - Husqvarna 38" Garden Tractor (2018-10) CHASSIS / FRAME Parts Diagram

38" Garden Tractor

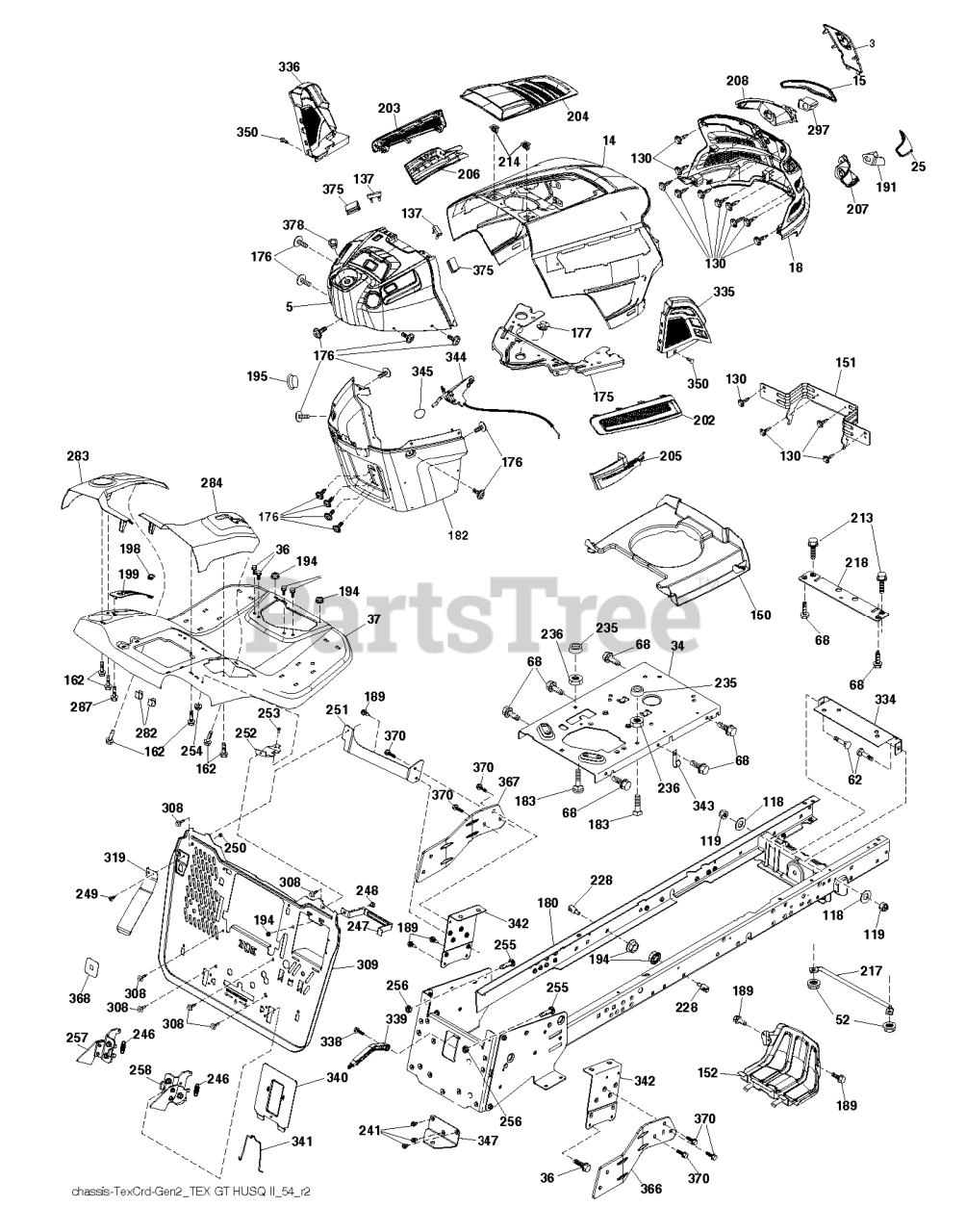

CHASSIS / FRAME Parts Diagram

  • Title

370

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

241

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

344

Husqvarna 532438970

CONTROL.EZ.MULCH.TEX/CRD
(Superseded to 583536701)

$133.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532447220

CONSOLE.PEDAL.HYDRO

$56.99

$

Usually ships in 3-10 days

0

283

Husqvarna 532447212

CONSOLE.DECKLIFT.CRDII.498

$85.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 590748811

DASH.UPR.GT2.SM.PTO.MC.HR.498

$47.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532438967

DASH DASH LOWER
(Superseded to 583536501)

$72.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$17.99

$

In Stock, Qty 13

0

34

Husqvarna 580910901

PLATE.ENGINE.10GA.CRD.GENII

$

$

Not available

15

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

Note: LH

$13.99

$

Usually ships in 3-10 days

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, Qty 8

0

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$80.99

$

Usually ships in 3-10 days

0

191

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

62

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$3.99

$

In Stock, Qty 10

0

208

Husqvarna 587464501

HEADLIGHT.CUP.BEZEL.HUS.GT2.LH

Note: LH

$6.99

$

In Stock, only 3 left!

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

249

Husqvarna 586936001

SCREW.BUTTONHD.10-24X1/2.(2 2)

$4.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$13.99

$

Usually ships in 3-10 days

0

252

Husqvarna 581992204

BRACKET.PNT.RH.SUPP.BKPLT.EDIP

$6.49

$

Usually ships in 3-10 days

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$13.99

$

Usually ships in 3-10 days

0

198

Husqvarna 532441552

INDICATOR.DECK.LIFT.RED

$15.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532418739

PLATE DECK LIFT
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

343

Husqvarna 532440749

CLIP CLIP
(Superseded to 582671501)

$2.99

$

Usually ships in 3-10 days

0

68

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

119

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

258

Husqvarna 589746702

LATCH.ASM.BGR.RH.GEN2.5.STMPD

$24.99

$

Usually ships in 3-10 days

0

255

Husqvarna 589392203

Bolts

$3.99

$

Usually ships in 3-10 days

0

254

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 20+

0

251

Husqvarna 589318904

BRACKET.PNT.LH.SUPP.BKPLT.EDIP

$12.99

$

Usually ships in 3-10 days

0

247

Husqvarna 582552602

STRAP.BATTERY.TCRD.GEN2.5X431

$20.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$4.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

180

Husqvarna 593898801

CHASSIS WELDMENT.CRD2.BKP_BLTS

$121.99

$

Usually ships in 3-10 days

0

18

Husqvarna 587523401

GRILLE SUBASM.GT.II.LOW.HDLGHT
(Superseded to 597247201)

$100.99

$

Usually ships in 3-10 days

0

342

Husqvarna 582826802

SUPPORT.PNT.FENDER.CRD.TEX

$6.49

$

Usually ships in 3-10 days

0

366

Husqvarna 581314602

BRACKET.RH.FRONT.BAGGER.BLACK

$34.99

$

Usually ships in 3-10 days

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

In Stock, Qty 7

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

309

Husqvarna 582552502

BACKPLATE.TEXCRD2.5.BAGGER.479

$125.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

339

Husqvarna 532436641

LEVER LEVER BAGGER
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

$4.99

$

In Stock, Qty 20+

0

256

Husqvarna 532197033

NUT.HEX.3/8-16

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$40.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

340

Husqvarna 582552702

BATTERY.DOOR.TCRD.GEN2.5.MS479

$31.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

347

Husqvarna 532442887

HITCH HITCH TOW TEX CRD GEN 2
(Superseded to 583566701)

$10.99

$

Usually ships in 3-10 days

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$37.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$17.99

$

In Stock, Qty 7

0

338

Husqvarna 594093901

Bolts

$2.49

$

Usually ships in 3-10 days

0

257

Husqvarna 589746602

LATCH.ASM.BGR.LH.GEN2.5.STMPD

$24.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

368

Husqvarna 581424801

FULL.LEVER.BAGGER.TEX.CRD

$6.49

$

Usually ships in 3-10 days

0

118

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

250

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

25

Husqvarna 532443385

LENS.HEADLIGHT.RH.GTII.2011

Note: RH

$13.99

$

In Stock, only 2 left!

0

334

Husqvarna 532442537

BRACKET.ENGINE
(Superseded to 583564401)

$12.99

$

Usually ships in 3-10 days

0

345

Husqvarna 532440639

RP KNOB.OVAL.TAPERED.3/8-16BLK
(Superseded to 539132624)

$7.49

$

In Stock, Qty 12

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 9

0

175

Husqvarna 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$24.99

$

Usually ships in 3-10 days

0

378

Husqvarna 590849801

BUSHING FLANGE; PLASTIC

$4.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532435714

VENT.TOP.HUSQ.GT2
(Superseded to 587485801)

$18.99

$

Usually ships in 3-10 days

0

253

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

248

Husqvarna 872110504

BOLT.CARR.5/16-18X1/2
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

Usually ships in 3-10 days

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$12.99

$

In Stock, Qty 20+

0

213

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441419

FENDER.TEX.SRD.CRD.BASE

$159.99

$

Usually ships in 3-10 days

0

246

Husqvarna 591449001

SPRING.LTCH.BGR.GEN2.5.CRD.TEX

$2.49

$

Usually ships in 3-10 days

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

367

Husqvarna 581314502

BRACKET.LH.FRONT.BAGGER.BLACK

$34.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532400944

BUMPER.FRONT.BLACK
(Superseded to 531307007)

$83.99

$

Usually ships in 3-10 days

0

319

Husqvarna 581313907

LEVER.PRSNC.BGR.TEX.CRD.GEN2.1

$14.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

150

Husqvarna 532439731

AIR DUCT.GTV2(1.66"RING HEIGHT

$48.99

$

Usually ships in 3-10 days

0

207

Husqvarna 587464801

HEADLIGHT.CUP.BEZEL.HUS.GT2.RH

Note: RH

$6.99

$

In Stock, Qty 12

0

341

Husqvarna 582060801

LATCH.BATTERY.DOOR.TCRD

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0
