TC 242 T (960510191-00) - Husqvarna 42" Garden Tractor (2019-06) ENGINE Parts Diagram

42" Garden Tractor

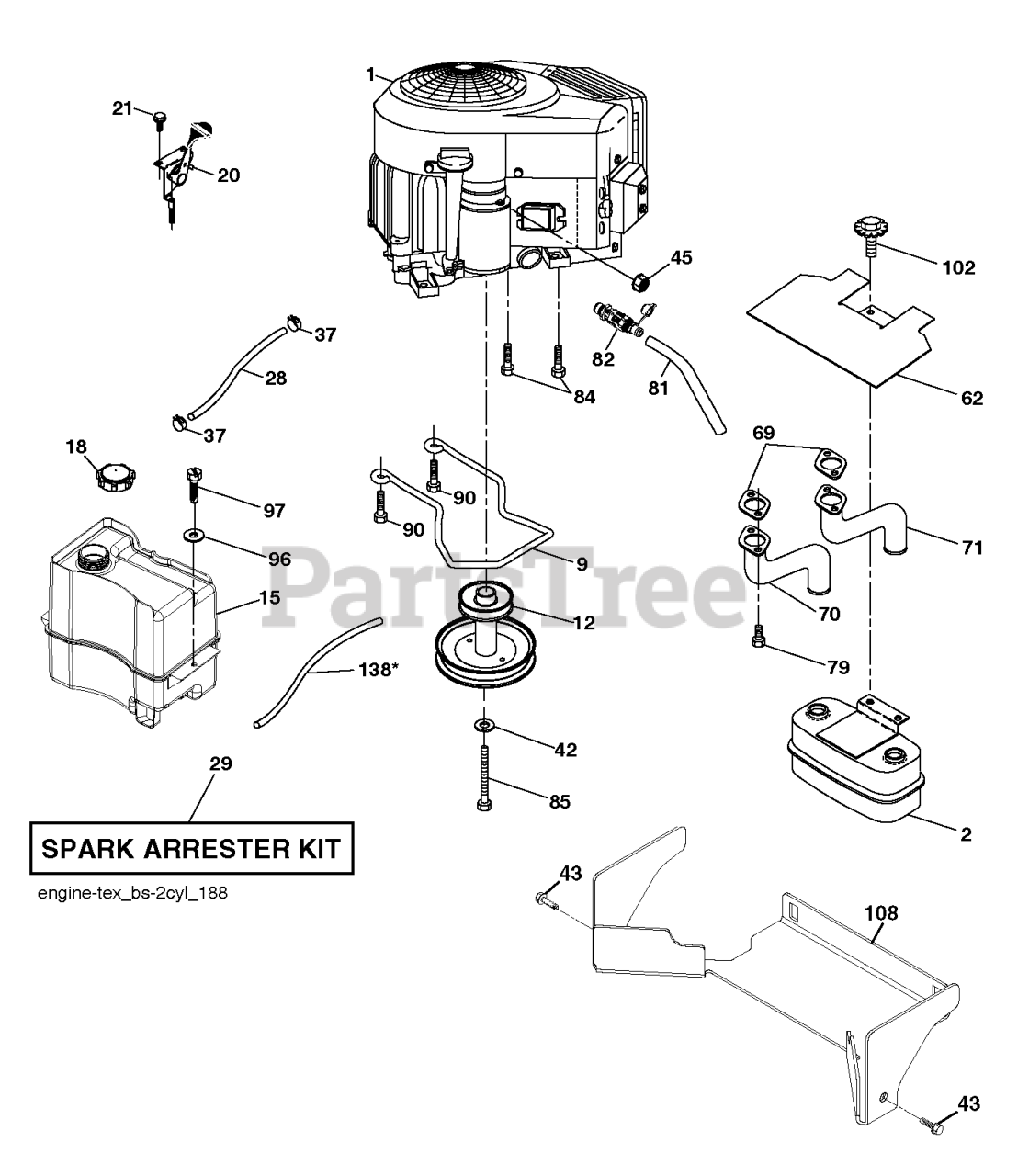

ENGINE Parts Diagram

  • Title

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 9

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

43

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

79

Husqvarna 596134202

Screws

$3.99

$

In Stock, Qty 9

0

20

Husqvarna 587242501

THROTTLE.COBRA.38"READSTART.BK
(Superseded to 587242504)

$41.99

$

Usually ships in 3-10 days

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

108

Husqvarna 594026402

Shields

$39.99

$

Usually ships in 3-10 days

0

15

Husqvarna 597954502

FUEL TANKS

Note: EPA TANK

$

$

Not available

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 586728901

PULLEY.ENGINE
(Superseded to 532405472)

$37.99

$

In Stock, only 3 left!

0

1

000000000

Note: B&S Model No. 40N777-0009-B5 (597818301)

$

$

Not available

45

Husqvarna 596133601

Hardware

$3.99

$

In Stock, only 2 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

15

Husqvarna 581290101

TANK.ASSEMBL.2.5GAL.NON-EPA

Note: NON-EPA TANK

$131.99

$

In Stock, Qty 6

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$29.99

$

In Stock, only 3 left!

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$35.99

$

In Stock, only 3 left!

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$3.99

$

In Stock, only 2 left!

0

138*

Husqvarna 587044531

NEEDS DESCRIPTION

$5.99

$

Usually ships in 3-10 days

0
