TC 242 TX - Husqvarna 42" Garden Tractor (Original) STEERING Parts Diagram

42" Garden Tractor

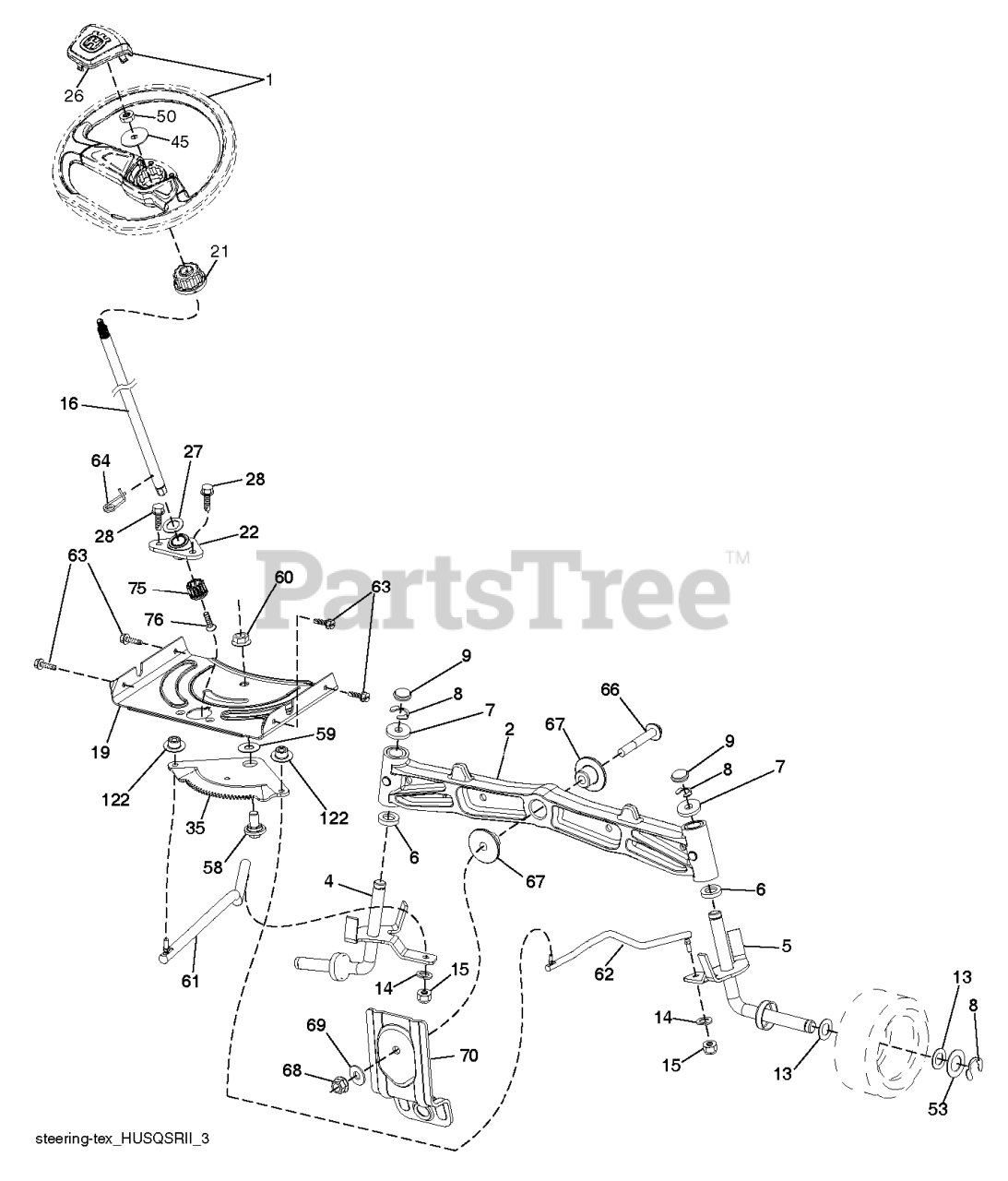

STEERING Parts Diagram

  • Title

60

Husqvarna 583612801

NUT.FLANGE.LOCK.5/8-11

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 594949101

Steering

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 585338802

BRACKET FRONT DECK SUSPENSION

$9.49

$

In Stock, Qty 15

0

13

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

63

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 536052802

SPINDLE.WLDMT.RH.15INTIRE.X431

Note: RH

$13.40

$

Usually ships in 3-10 days

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, Qty 7

0

19

Husqvarna 531169101

SERVICE KIT PLATE PLATE.STEER.

$15.99

$

In Stock, Qty 6

0

16

Husqvarna 587738904

KIT.SRVC.STEERINGSHAFT.2HISHFT

$40.99

$

In Stock, Qty 20+

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, Qty 8

0

50

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$8.99

$

In Stock, Qty 16

0

2

Husqvarna 532413591

AXLE.SVC.ASM CAST IRON.TEX

$145.99

$

In Stock, only 1 left!

0

8

Husqvarna 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 587016401

WASHER.3/8ID.2-3/8OD.12GA.PLTD

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 596238701

Washers

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 587738905

KIT.SRVC.STEERINGSHAFT.ADAPTER

$7.99

$

In Stock, Qty 20+

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0

75

Husqvarna 587738906

KIT.SRVC.STEERINGSHAFT.PINION

$5.99

$

In Stock, Qty 9

0

61

Husqvarna 597070202

Links

Note: LH

$53.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 536052902

SPINDLE.WLDMT.LH.15INTIRE.X431

Note: LH

$

$

Currently unavailable

122

Husqvarna 583576601

CAP.GEAR.SECTOR.TEX

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 596933401

Washers

$3.99

$

In Stock, Qty 8

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 20+

0

76

Husqvarna 580683601

SCREW HEAD SOCKET LRVB

$4.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 20+

0

1

Husqvarna 597866101

Service Kit

$66.99

$

Usually ships in 3-10 days

0

62

Husqvarna 597070302

Links

Note: RH

$53.99

$

Usually ships in 3-10 days

0

67

Husqvarna 529496301

BUSHING

$7.49

$

In Stock, Qty 20+

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 587738901

KIT.SRVC.STEERINGSHAFT.LWRBSHG

$17.99

$

In Stock, Qty 20+

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532006266

WASHER THRUST

$7.99

$

In Stock, Qty 20+

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

7

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0
