TE 400 CXL - Poulan String Trimmer, Type 1 (2007-07) Engine - Type 1 Parts Diagram

String Trimmer, Type 1

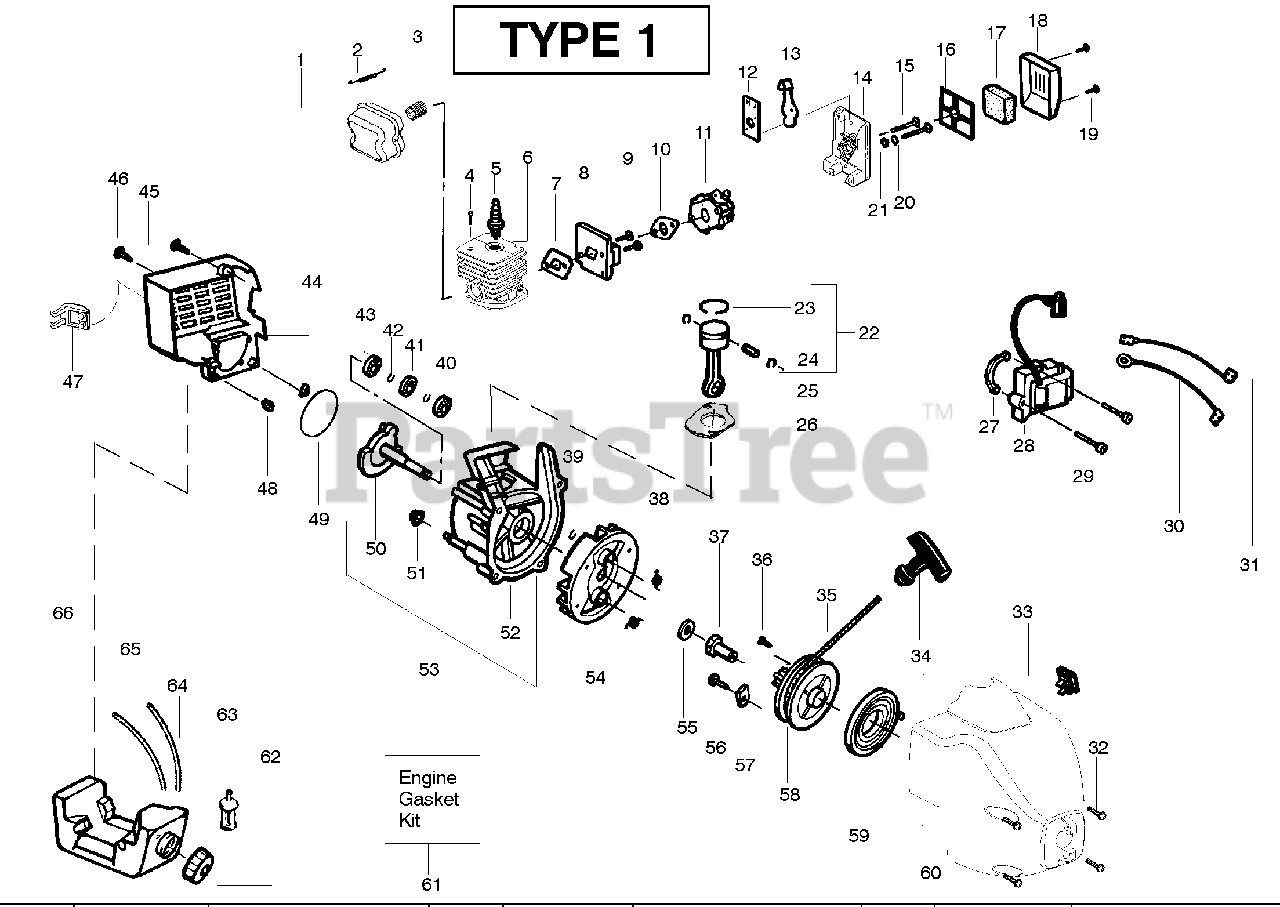

Engine - Type 1 Parts Diagram

  • Title

1

Electrolux/AYP 530071390

Kit-Muffler

Note: (Incl. 2,3)

$18.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530042088

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 530071391

Screen-Spark Arrestor

$

$

Not available

4

Electrolux/AYP 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

5

Electrolux/AYP 952030201

Spark Plug (RCJ 8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530069757

Kit - Cylinder
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530071329

Gasket-Cylind./Carb.

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530069758

Kit - Carb. Adaptor

$

$

Not available

9

Electrolux/AYP 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530071329

Gasket-Carb.

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530069754

Kit - Carburetor Ass'y
(Superseded to 530071635)

Note: (Incl. Limiter Cap)

$

$

Not available

12

Electrolux/AYP 530038747

Choke Plate Mounting

$3.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 530035499

Choke Shutter

$

$

Not available

14

Electrolux/AYP 530052431

Air Box

$

$

Not available

15

Electrolux/AYP 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 530036569

Plate - Filter Support

$

$

Not available

17

Electrolux/AYP 530036575

Air Filter Foam

$4.99

$

In Stock, Qty 14

0

18

Electrolux/AYP 530036568

Air Filter Cover

$

$

Not available

19

Electrolux/AYP 530015957

Screw

$4.99

$

In Stock, Qty 7

0

20

Electrolux/AYP 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 530069987

Kit - Piston

Note: (Incl. 23, 24 & Pin)

$27.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530012472

Piston Ring
(Superseded to 545154009)

$3.99

$

In Stock, Qty 12

0

24

Electrolux/AYP 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530071329

Gasket-Cylinder

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

28

Electrolux/AYP 530039211

Ignition Module
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530054448

Ground Wire Ass'y.

$

$

Not available

31

Electrolux/AYP 530054449

Lead Wire Ass'y.

$

$

Not available

32

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

33

Electrolux/AYP 530069572

Kit - Switch

$8.99

$

In Stock, only 3 left!

0

34

Electrolux/AYP 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 530071325

Kit - Rope

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530016326

Screw

$

$

Not available

37

Electrolux/AYP 530027953

Drive Coupling

$

$

Not available

38

Electrolux/AYP 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

39

Electrolux/AYP 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530015945

Retainer Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530049233

Rear Shroud
(Superseded to 530056943)

$

$

Not available

45

Electrolux/AYP 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

47

Electrolux/AYP 530054536

Guard-Muffler

$

$

Not available

48

Electrolux/AYP 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530071329

O-Ring-C'case/Shrd

$7.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530012413

Crankshaft Ass'y.

$18.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530012414

Crankcase Ass'y.
(Superseded to 530071627)

Note: (Incl. 40-43)

$26.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 530071337

C'case & C'shaft Assy.

Note: (Incl. 39,50,52)

$

$

Not available

54

Electrolux/AYP 530069886

Flywheel Ass'y.
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

55

Electrolux/AYP 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

56

Electrolux/AYP 530016224

Screw

$4.99

$

In Stock, Qty 5

0

57

Electrolux/AYP 530053985

Retainer-Can

$1.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 530071324

Starter Pulley Kit

Note: (Incl. 36)

$9.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 530042086

Starter Spring
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

60

Electrolux/AYP 530071415

Assy. - Fan Housing

$18.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 530071329

Kit-Engine Gasket

Note: (Incl. 7,10,26,49)

$7.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

63

Electrolux/AYP 530095646

Fuel Pickup Ass'y.

$4.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 530069247

Kit-Fuel Line (Small)

$6.49

$

In Stock, Qty 20+

0

65

Electrolux/AYP 530069216

Kit-Fuel Line (Large)

$6.49

$

In Stock, Qty 20+

0

66

Electrolux/AYP 530049299

Fuel Tank Ass'y

Note: (Incl. cap,lines,filter)

$

$

Not available
