TE 400 CXL - Weed Eater String Trimmer, Type 4 Handle & Controls Type 1-5 Parts Diagram

String Trimmer, Type 4

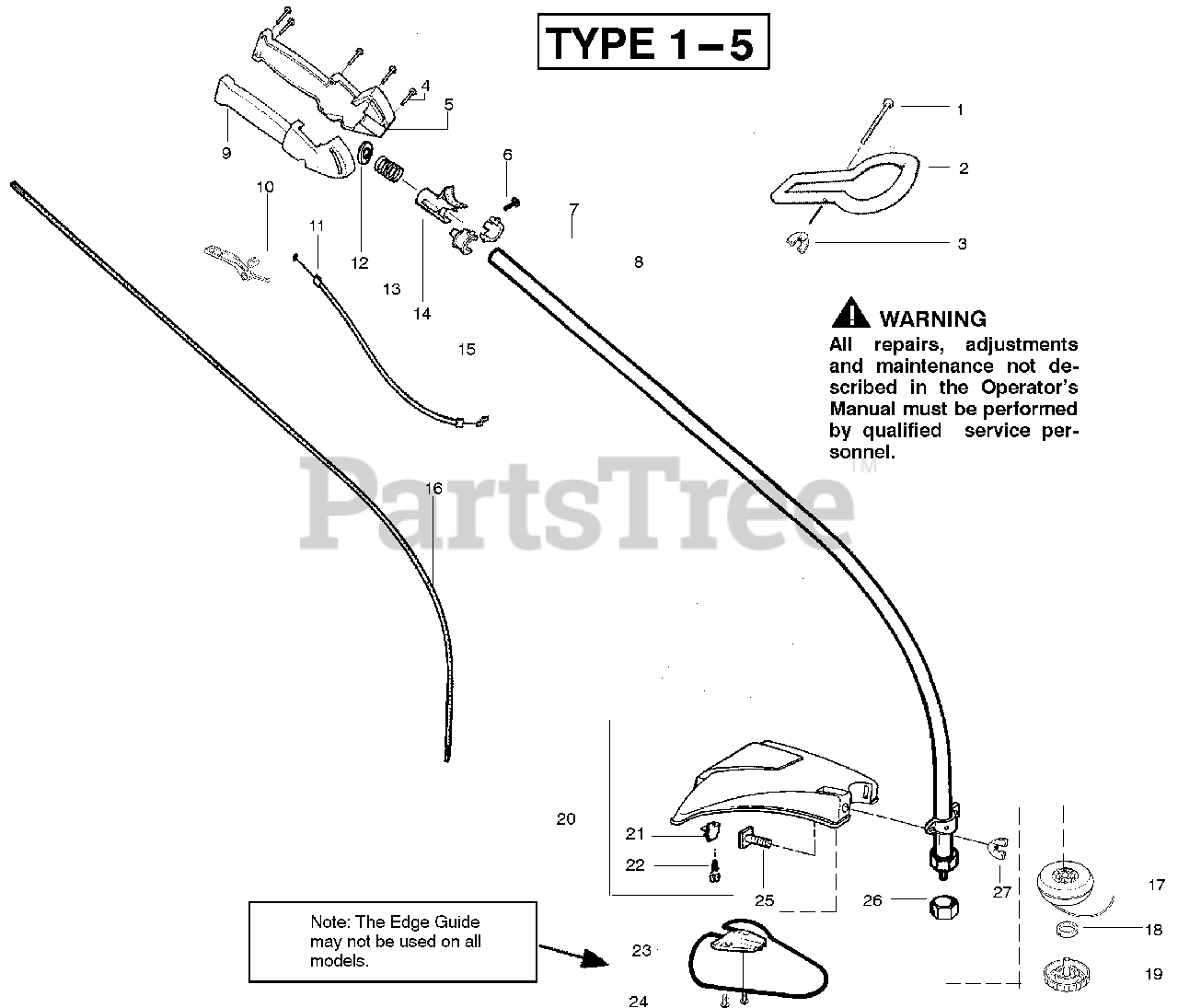

Handle & Controls Type 1-5 Parts Diagram

  • Title

1

Poulan 530016173

Bolt-Handle

$

$

Not available

2

Poulan 530047919

Assist Handle

$6.99

$

In Stock, only 2 left!

0

3

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

4

Poulan 530016179

Screw

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 530047924

Throttle Hsg. (Left)

$

$

Not available

6

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Poulan 530054159

Locator-Left

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 530071416

Drive Shaft Hsg. Ass'y

$38.99

$

Usually ships in 3-10 days

0

9

Poulan 530047923

Throttle Hsg. (Right)

$

$

Not available

10

Poulan 530038682

Trigger - Throttle

$3.99

$

In Stock, Qty 13

0

11

Poulan 530055546

Throttle Cable Ass'y.

$

$

Not available

12

Poulan 530016193

Washer

$

$

Not available

13

Poulan 530042084

Spring-Compression

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530047925

Actuator

$

$

Not available

15

Poulan 530054160

Locator-Right

$8.99

$

Usually ships in 3-10 days

0

16

Poulan 530095853

Drive Shaft - Flex

$15.99

$

Usually ships in 3-10 days

0

17

Poulan 952711574

Assy. - Wound Hub

Note: (incl.#18)

$

$

Not available

18

Poulan 530403949

Guide - Line

$6.49

$

In Stock, Qty 6

0

19

Poulan 530054223

Assy. - Cap 5/16"

$9.99

$

In Stock, Qty 7

0

20

Poulan 530071515

Kit-Shield Ass'y.

Note: (Incl. 21,22,25,27)

$

$

Not available

21

Poulan 530052287

Line Limiter

$4.99

$

In Stock, only 2 left!

0

22

Poulan 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 20+

0

23

Poulan 530054459

Assy-Edge Guide

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530016179

Screw

$4.99

$

Usually ships in 3-10 days

0

25

Poulan 530015820

Bolt-Shield

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530095574

Dust Cup

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530163711

Manual-Operator's (Type 4,5) w/o edge guide

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530163451

Manual-Operator's (Type 4,5) with edge guide

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530055350

Shaft Warning Decal

Note: Not Shown

$

$

Not available

27

Poulan 530055519

Decal-Start Inst.

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
