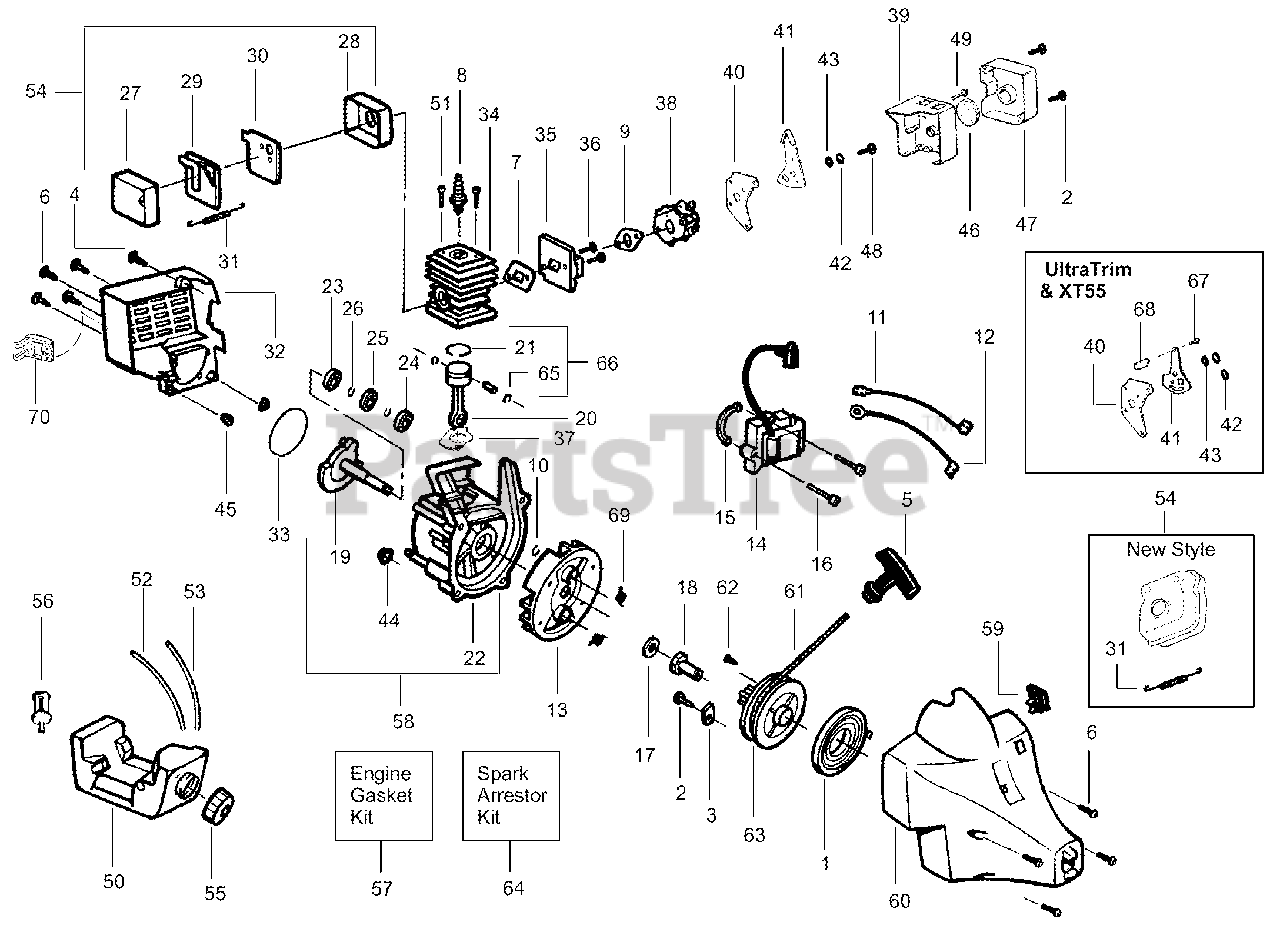

TE 400 - Weed Eater String Trimmer Power Unit Parts Diagram

String Trimmer

Power Unit Parts Diagram

  • Title

1

Poulan 530042086

Starter Spring
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

2

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530016226

Retainer-Can

$

$

Not available

4

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

5

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Poulan 530019243

Gasket-Cylind./Carb.

$6.49

$

In Stock, Qty 6

0

8

Poulan 952030201

Spark Plug (RCJ 8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

9

Poulan 530019194

Gasket-Carb.

$6.49

$

In Stock, Qty 5

0

10

Poulan 530015941

Retainer Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530049390

Lead Wire Ass'y.

$

$

Not available

12

Poulan 530049389

Ground Wire Ass'y.

$

$

Not available

13

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Poulan 530055160

Ignition Module

$46.99

$

Usually ships in 3-10 days

0

15

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

16

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

18

Poulan 530027953

Drive Coupling

$

$

Not available

19

Poulan 530054083

Assy-Crankshaft

$

$

Not available

20

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

21

Poulan 530049903

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

22

Poulan 530012414

Assy-Crankcase
(Superseded to 530071627)

Note: (Incl 23-26)

$26.99

$

Usually ships in 3-10 days

0

23

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 530015945

Retain. Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 530053500

Muffler Baffle-Exit

$0.99

$

Usually ships in 3-10 days

0

30

Poulan 530053499

Muffler Baffle-First

$1.99

$

Usually ships in 3-10 days

0

31

Poulan 530016197

Muffler Spring Old Style

$4.99

$

In Stock, Qty 6

0

31

Poulan 530042088

Muffler Spring New Style

$3.99

$

In Stock, only 1 left!

0

32

Poulan 530049233

Rear Shroud

$

$

Not available

33

O-ring-C'case/Shrd

Note: REFER TO SERVICE REFERENCE

$

$

Not available

34

Poulan 530069757

Cylinder Kit
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

35

Poulan 530069758

Carb. Adaptor Kit

$

$

Not available

36

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

37

Poulan 530019223

Gasket-Cylinder

$4.99

$

In Stock, Qty 6

0

38

Poulan 530069754

Carburetor Ass'y Kit-Twist'N Edge, XT35 & TE400

Note: (Incl. Limiter Cap)

$

$

Not available

38

Poulan 530069755

Carburetor Ass'y Kit-Ultra Trim & XT55

Note: (Incl. Limiter Cap)

$

$

Not available

39

Poulan 530047908

Air Box

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530047914

Choke Plate Mounting

$

$

Not available

41

Poulan 530047916

Choke Lever Twist'N Edge, XT35 & TE400

$

$

Not available

41

Poulan 530047915

Choke Lever Ultra Trim & XT55

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

43

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

44

Poulan 530036792

Isolator-C'Case

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

46

Poulan 530047932

Air Filter Foam

$4.99

$

In Stock, Qty 12

0

47

Poulan 530049095

Air Filter Cover Twist-N-Edge, XT35 & TE400

$

$

Not available

47

Poulan 530047927

Air Filter Cover Ultratrim & XT55

$2.49

$

Usually ships in 3-10 days

0

48

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

49

Poulan 530015557

Screw

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530049299

Fuel Tank Ass'y

Note: (Incl. 52, 53, 55 & 56)

$

$

Not available

51

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

52

Poulan 530069216

Fuel Line (Large)

$6.49

$

In Stock, Qty 20+

0

53

Poulan 530069247

Fuel Line (Small)

$6.49

$

In Stock, Qty 20+

0

54

Poulan 530069989

Muffler Kit Old Style

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 530071390

Muffler Kit New Style

$18.99

$

Usually ships in 3-10 days

0

55

Poulan 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

56

Poulan 530095646

Fuel Pickup Ass'y.

$4.99

$

In Stock, Qty 20+

0

57

Poulan 530069625

Engine Gasket Kit
(Superseded to 530069616)

Note: (Incl. 7,9,33,37)

$9.99

$

Usually ships in 3-10 days

0

58

Poulan 530014729

C'case & C'shaft Assy.

Note: (Incl. 10,19,22-26)

$

$

Not available

59

Poulan 530038114

Switch
(Superseded to 530071356)

$8.99

$

Usually ships in 3-10 days

0

60

Poulan 530049468

Assy-Fan Housing

$19.99

$

Usually ships in 3-10 days

0

61

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

62

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

63

Poulan 530069400

Starter Pulley Kit
(Superseded to 530071786)

Note: (Incl. 62)

$7.49

$

In Stock, Qty 12

0

64

Poulan 530069380

Spark Arrestor Kit Old Style

$6.49

$

Usually ships in 3-10 days

0

64

Poulan 530071391

Spark Arrestor Kit New Style

$

$

Not available

65

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 530069756

Piston Kit
(Superseded to 530071785)

Note: (Incl. 21, 65 & Pin)

$47.99

$

In Stock, only 1 left!

0

67

Poulan 530015780

Screw-Choke Knob

$6.49

$

In Stock, only 3 left!

0

68

Poulan 530047917

Choke Knob

$1.49

$

Usually ships in 3-10 days

0

69

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

70

Poulan 530054536

Guard-Muffler

$

$

Not available
