TE 450 CXL LE - Poulan String Trimmer, Type 1 Engine Type 1 Parts Diagram

String Trimmer, Type 1

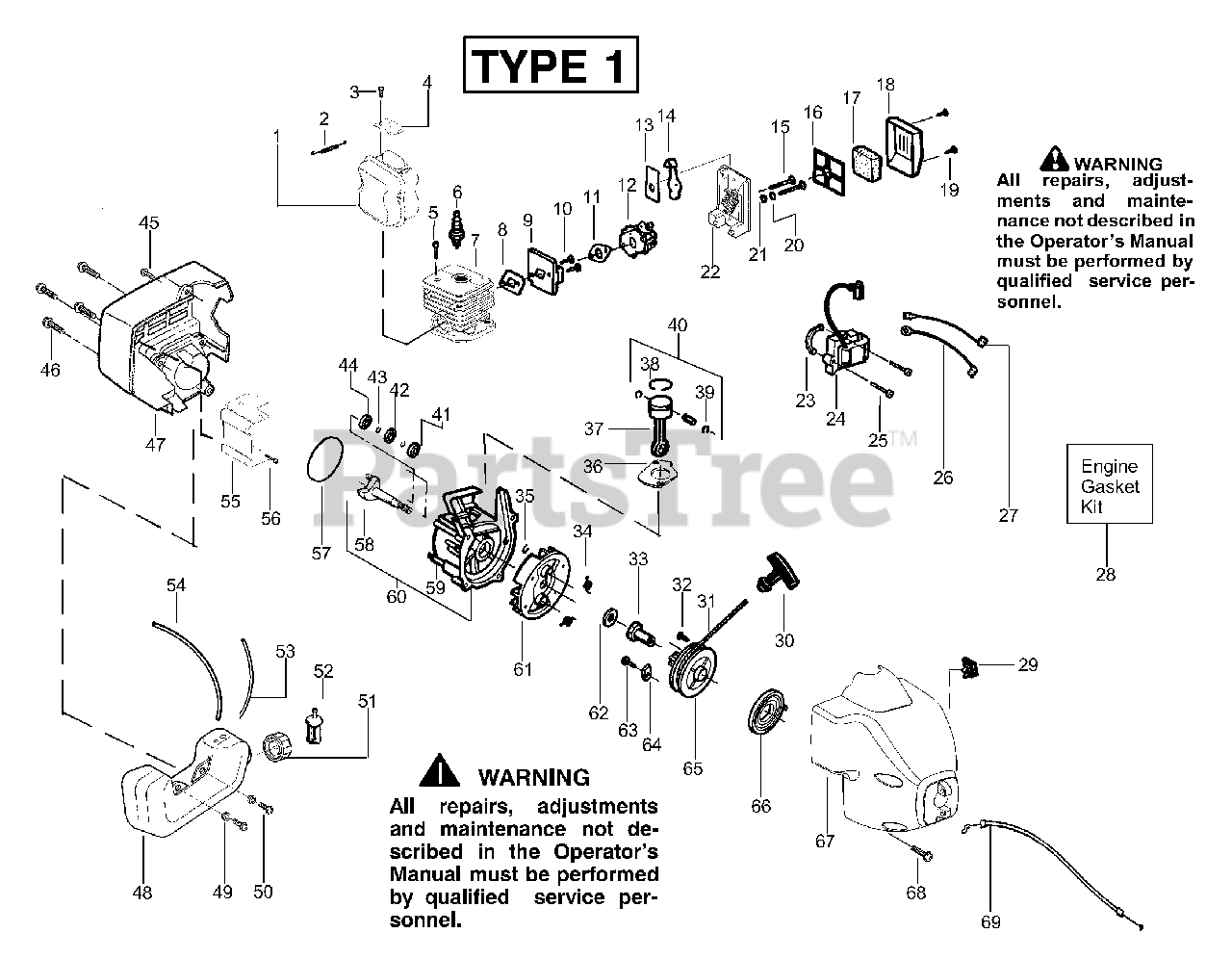

Engine Type 1 Parts Diagram

  • Title

1

Poulan 530071362

Kit-Muffler

Note: (Incl. 2,3,4)

$20.99

$

Usually ships in 3-10 days

0

2

Poulan 530042088

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530071361

Screen-Spark Arrestor

$

$

Not available

5

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

6

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

7

Poulan 530071359

Kit-Cylinder
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

8

Poulan 530071363

Gasket-Cylinder/Carb.

$9.99

$

Usually ships in 3-10 days

0

9

Poulan 530055535

Carb. Adapter

$

$

Not available

10

Poulan 530016014

Screw-Carb Adptr.

$6.49

$

In Stock, only 3 left!

0

11

Poulan 530071363

Gasket-Carb.

$9.99

$

Usually ships in 3-10 days

0

12

Poulan 530071443

Kit-Carb. Ass'y.

Note: (Incl. Limiter Cap)

$

$

Not available

13

Poulan 530038747

Choke Plate

$3.99

$

In Stock, only 3 left!

0

14

Poulan 530038686

Choke Shutter

$3.99

$

In Stock, Qty 7

0

15

Poulan 530016353

Screw-Carburetor

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530036569

Filter Support Plate

$

$

Not available

17

Poulan 530036575

Air FIlter Foam

$4.99

$

In Stock, Qty 12

0

18

Poulan 530054414

Air Filter Cover

$6.49

$

In Stock, only 1 left!

0

19

Poulan 530015892

Screw-Air Box

$6.49

$

In Stock, Qty 20+

0

20

Poulan 530015852

Choke Spacer

$2.49

$

In Stock, only 1 left!

0

21

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

22

Poulan 530052431

Air Box

$

$

Not available

23

Poulan 530036145

Spacer-Ignit. Module

$3.99

$

In Stock, only 3 left!

0

24

Poulan 530039214

Ignition Module
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

25

Poulan 530015954

Screw-Ignit. Module

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530054448

Ground Wire Ass'y.

$

$

Not available

27

Poulan 530054449

Lead Wire Ass'y.

$

$

Not available

28

Poulan 530071363

Kit-Engine Gasket

Note: (Incl. 8,11,36,57)

$9.99

$

Usually ships in 3-10 days

0

29

Poulan 530071356

Switch-Momentary

$8.99

$

Usually ships in 3-10 days

0

30

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530071325

Kit-Rope

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 530015882

Screw

$

$

Not available

33

Poulan 530027953

Drive Coupling

$

$

Not available

34

Poulan 530023817

Spring Starter Dog

$6.49

$

In Stock, Qty 5

0

35

Poulan 530015945

Ret. Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530071363

Gasket-Cylinder

$9.99

$

Usually ships in 3-10 days

0

37

Poulan 530069945

Connecting Rod Assy.
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

38

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

39

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530071357

Kit-Piston
(Superseded to 530071833)

Note: (Incls. 38,39 & Pin)

$37.99

$

In Stock, only 1 left!

0

41

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

43

Poulan 530015941

Ret. Ring/C'shaft

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

45

Poulan 530015934

Screw-Shd/Fan Hsg

$4.99

$

In Stock, only 1 left!

0

46

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

47

Poulan 530055177

Rear Shroud

$10.99

$

Usually ships in 3-10 days

0

48

Poulan 530049296

Fuel Tank Ass'y.
(Superseded to 545103802)

Note: (Incl. 51,52,fuel lines)

$

$

Not available

49

Poulan 530016131

Washer-fuel tank

$3.99

$

In Stock, only 1 left!

0

50

Poulan 530015886

Screw-Fuel Tank

$6.49

$

In Stock, Qty 16

0

51

Poulan 530014347

Fuel Cap Assy.

$8.99

$

In Stock, Qty 5

0

52

Poulan 530095646

Fuel Pickup Assy

$4.99

$

In Stock, Qty 20+

0

53

Poulan 530069247

Fuel Line (Small)

$6.49

$

In Stock, Qty 20+

0

54

Poulan 530069216

Fuel Line (Large)

$6.49

$

In Stock, Qty 20+

0

55

Poulan 530055351

Shield-Heat

$3.99

$

Usually ships in 3-10 days

0

56

Poulan 530015805

Screw-Heat Shield
(Superseded to 530015886)

$6.49

$

In Stock, Qty 16

0

57

Poulan 530071363

O-ring-C'case

$9.99

$

Usually ships in 3-10 days

0

58

Poulan 530012413

Crankshaft Ass'y.

$18.99

$

Usually ships in 3-10 days

0

59

Poulan 530012462

Crankcase Assy.

Note: (Incl. 41-44)

$10.99

$

Usually ships in 3-10 days

0

60

Poulan 530071337

C'case/C'shaft Assy.

Note: (Incl. 35,58,59)

$

$

Not available

61

Poulan 530069886

Flywheel Ass'y.
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

62

Poulan 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

63

Poulan 530016224

Screw-Pulley

$4.99

$

In Stock, Qty 5

0

64

Poulan 530053985

Retainer-Pulley

$1.49

$

In Stock, only 1 left!

0

65

Poulan 530071324

Kit-Starter Pulley

Note: (Incl. 32)

$9.99

$

Usually ships in 3-10 days

0

66

Poulan 530042086

Starter Spring
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

67

Poulan 530055510

Assy.-Fan Hsg.

$23.99

$

Usually ships in 3-10 days

0

68

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

69

Poulan 530055546

Assy-Throttle Cable

$

$

Not available
