TF 1036 AR - Electrolux/AYP Lawn Tractor ENGINE/BRIGGS AND STRATTON Parts Diagram

Lawn Tractor

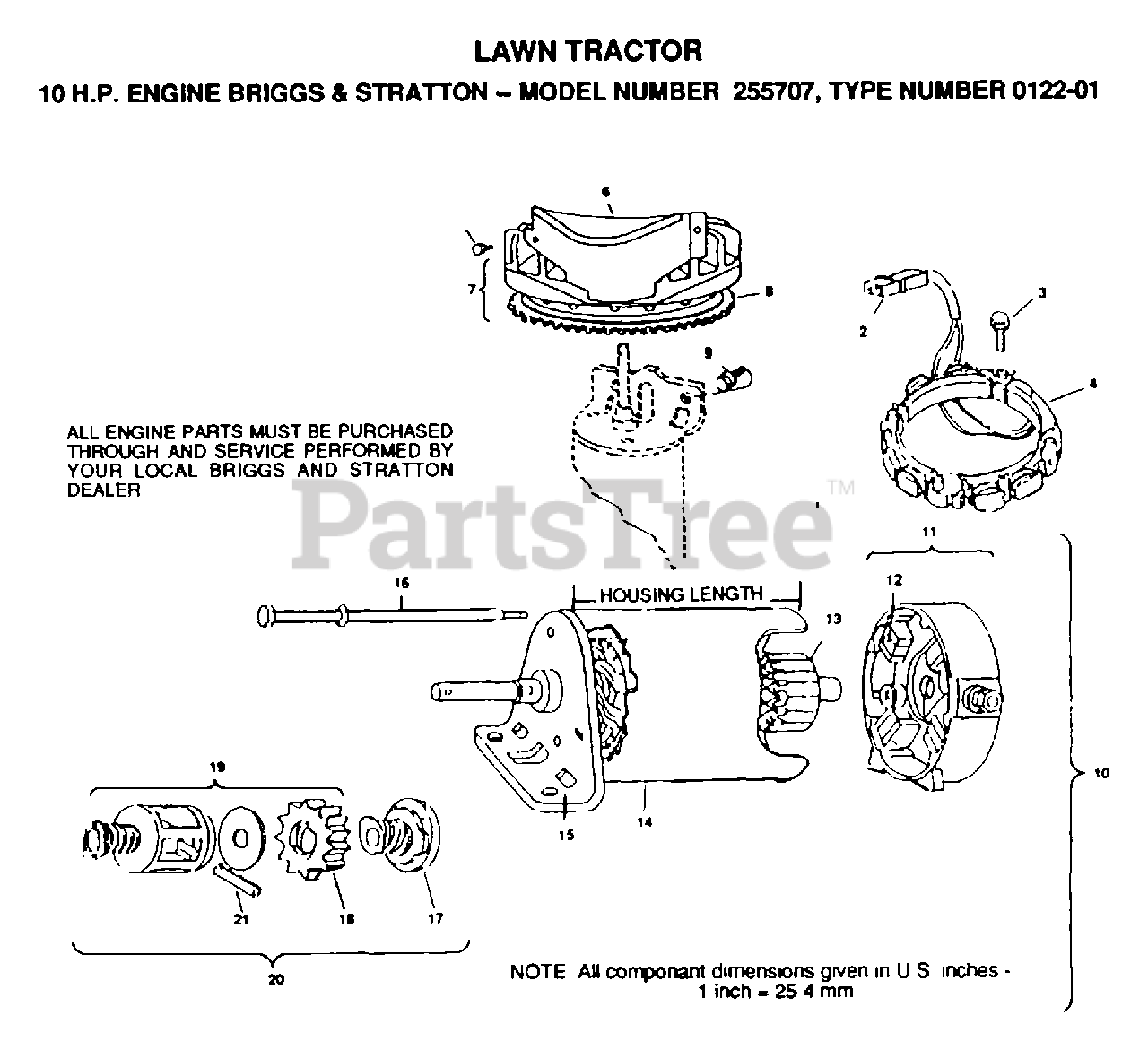

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title

2

Briggs & Stratton 393456

DIODE & CONNECTOR ASSY

$20.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 393474

STATOR, ALTERNATOR, DUAL CIRCUIT
(Superseded to 592831)

$101.99

$

In Stock, only 3 left!

0

5

Briggs & Stratton 93984

SCREW, SEMS
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

6

Briggs & Stratton 395405

COVER, STARTER

$

$

Not available

7

Briggs & Stratton 391988

FLYWHEEL & RING ASSY
(Superseded to 692048)

$193.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 392134

GEAR, RING
(Superseded to 696537)

$50.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 93523

SCREW
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

10

Briggs & Stratton 394805

MOTER AND DRIVE ASSY.
(Superseded to 497595)

$110.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 395537

END CAP ASS'Y. COMMUTATOR

$54.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 395538

BRUSH ASSEMBLY

$24.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 390837

ARRMATURE ASSEMBLY

$159.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 393825

HOUSING ASSEMBLY
(Superseded to 398159)

$80.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 394856

CAP, DRIVE
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 94003

BOLT
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

17

Briggs & Stratton 398003

CLUTCH ASSEMBLY
(Superseded to 692024)

$21.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, Qty 19

0

19

Briggs & Stratton 393254

RETAINER & PIN
(Superseded to 696540)

$29.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 396865

DRIVE ASSY
(Superseded to 696540)

$29.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 94192

ROLL PIN

$4.99

$

Usually ships in 2-12 days

0
