TF 1238 AR - Electrolux/AYP Lawn Tractor ENGINE/BRIGGS AND STRATTON Parts Diagram

Lawn Tractor

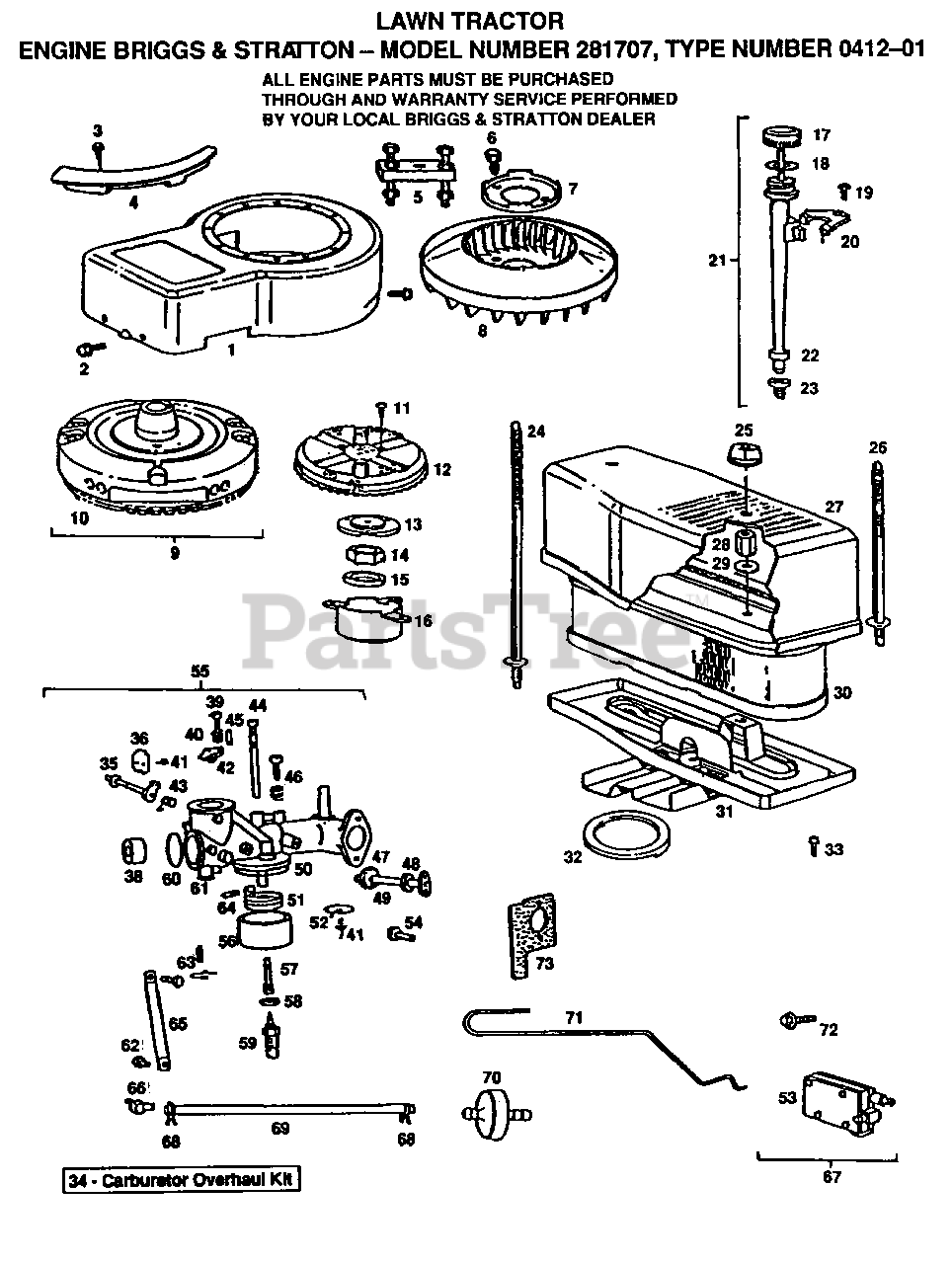

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title

1

Briggs & Stratton 490689

HOUSING, BLOWER

$97.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 93158

SCREW, SEMS
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 93705

SUB= 69485
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 223752

GUARD, FLYWHEEL
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 93535

SCREW, HEX HEAD
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

7

Briggs & Stratton 223726

RETAINER FAN
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 280687

FAN, FLYWHEEL
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 492326

FLYWHEEL & RING GEAR ASSY, MAGNETO
(Superseded to 693557)

$

$

Not available

10

Briggs & Stratton 392134

GEAR, RING
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93805

SCREW, SEMS
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 222562

SCREEN, FLUSH ROTATING
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 280848

SPACER
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92284

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 220865

WASHER, SPRING
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 222561

CUP, SCREEN MOUNTING
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 490327

CAP AND DIPSTICK, OIL FILLER
(Superseded to 692014)

$25.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 270920

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 93572

SCREW
(Superseded to 690664)

$5.49

$

In Stock, only 4 left!

0

20

Electrolux/AYP 222371

CLAMP

$

$

Not available

21

Briggs & Stratton 490474

FILL GROUP, OIL

$

$

Not available

22

Briggs & Stratton 280741

TUBE, OIL FILLER
(Superseded to 495768)

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68838

SEAL, FILLER TUBE
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

24

Briggs & Stratton 94248

STUD
(Superseded to 695830)

$12.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 212706

Desc:
(Superseded to 691668)

$5.49

$

In Stock, only 4 left!

0

26

Briggs & Stratton 94246

No Desciption for Part

$11.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 223700

COVER

$44.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 231532

NUT
(Superseded to 692297)

$10.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 94249

WASHER
(Superseded to 691668)

$5.49

$

In Stock, only 4 left!

0

30

Briggs & Stratton 491519

CARTRIDGE
(Superseded to 399806S)

$28.99

$

In Stock, only 4 left!

0

31

Briggs & Stratton 490332

BODY

$

$

Not available

32

Briggs & Stratton 270853

GASKET, AIR CLEANER

$9.49

$

In Stock, only 1 left!

0

33

Briggs & Stratton 94018

SCREW, AIR CLEANER
(Superseded to 690859)

$3.99

$

In Stock, Qty 9

0

34

Briggs & Stratton 394698

CARBURETOR OVERHAUL KIT

$32.99

$

In Stock, Qty 5

0

35

Briggs & Stratton 270382

WASHER, FOAM
(Superseded to 691869)

$3.99

$

In Stock, only 4 left!

0

36

Briggs & Stratton 222010

VALVE, CHOKE

$7.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 390684

SHAFT & LEVER, CHOKE

$16.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 211960

VENTURI, CARBURETOR

$6.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 91920

SCREW, MACHINE, FILLISTER HEAD
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 26157

SPRING, THROTTLE ADJUSTMENT
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 93499

SCREW
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

42

Briggs & Stratton 211712

STOP, THROTTLE

$8.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 261116

SPRING, CHOKE RETURN

$7.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 299740

NOZZLE CARBURETOR

$15.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 93043

PIN, THROTTLE STOP
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 292681

VALVE ASSEMBLY, CARBURETOR IDLE SCREW, SEMS

$11.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 271853

WASHER, THROTTLE SHAFT, FOAM
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 398970

SEAL, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

49

Electrolux/AYP 491106

SHAFT & LEVER

$

$

Not available

50

Briggs & Stratton 270511

GASKET, FLOAT BOWL

$3.49

$

In Stock, Qty 9

0

51

Briggs & Stratton 299707

FLOAT, CARBURETOR

$13.99

$

In Stock, Qty 8

0

52

Briggs & Stratton 222433

VALVE, THROTTLE

$9.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 390818

PUMP
(Superseded to 791885)

$90.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 93357

SCREW, SEMS, CARBURETOR MOUNTING
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

55

Briggs & Stratton 491031

CARBURETOR ASSY

$315.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 221995

BOWL, FLOAT

$8.99

$

In Stock, only 4 left!

0

57

Briggs & Stratton 231323

SCREW

$24.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 222014

WASHER
(Superseded to 690618)

$4.99

$

In Stock, Qty 11

0

59

Briggs & Stratton 396568

VALVE, NEEDLE

$20.99

$

In Stock, only 1 left!

0

60

Briggs & Stratton 221997

PLUG WELSH

$4.99

$

In Stock, only 1 left!

0

61

Briggs & Stratton 490473

BODY ASSY

$109.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93572

SCREW
(Superseded to 690664)

$5.49

$

In Stock, only 4 left!

0

63

Briggs & Stratton 394682

VALVE, NEEDLE

$9.99

$

In Stock, Qty 7

0

64

Briggs & Stratton 230896

PIN, FLOAT HINGE
(Superseded to 691775)

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 222311

BRACKET, CARBURETOR
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

66

Briggs & Stratton 67218

CONNECTOR, FUEL PIPE
(Superseded to 691609)

$7.49

$

In Stock, Qty 8

0

67

Briggs & Stratton 394462

REPAIR KIT, PUMP

$62.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

69

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

In Stock, only 1 left!

0

70

Electrolux/AYP 289090

FILTER

$

$

Not available

71

Briggs & Stratton 261610

LINK, CHOKE

$10.99

$

In Stock, only 2 left!

0

72

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 270872

GASKET, CARBURETOR
(Superseded to 498869)

$5.49

$

In Stock, Qty 5

0
