TF 335 (967101101) - Husqvarna Front-Tine Tiller (2016-09) TRANSMISSION Parts Diagram

Front-Tine Tiller

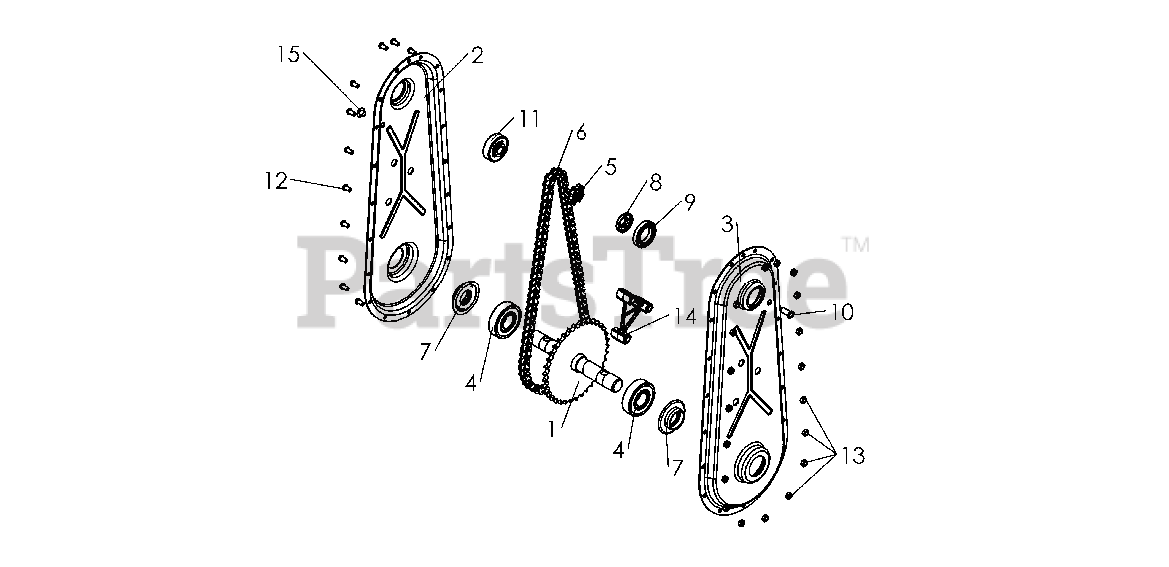

TRANSMISSION Parts Diagram

  • Title

3

Husqvarna 590214101

NEEDS DESCRIPTION

Note: TRANSMISSION HOUSING LEFT

$

$

Currently unavailable

11

Husqvarna 531008546

NEEDS DESCRIPTION

Note: SPECIAL BALL BEARING 6204 2RS

$

$

Not available

6

Husqvarna 580316301

NEEDS DESCRIPTION

Note: CHAIN (78 LINKS RSF) 08B 12.7

$

$

Currently unavailable

12

Husqvarna 580313701

NEEDS DESCRIPTION

Note: SCREW TORX M6X12

$

$

Currently unavailable

14

Husqvarna 585365501

NEEDS DESCRIPTION

Note: SPACER FOR TRANSMISSION

$

$

Currently unavailable

13

Husqvarna 732261601

Blocking nut M 6 Z

Note: BLOCKING NUT M 6 Z

$

$

Not available

1

Husqvarna 580317001

NEEDS DESCRIPTION

Note: BLADE SHAFT 37 TEETH 12.7

$

$

Currently unavailable

5

Husqvarna 519653057

PINION

Note: PIGNON 8 TEETH 12.7

$

$

Not available

9

Husqvarna 580315901

BALL BEARING

Note: BALL BEARING 6906 2RS

$

$

Not available

15

Husqvarna 590214301

NEEDS DESCRIPTION

Note: GREASE CAP

$

$

Currently unavailable

7

Husqvarna 531008576

NEEDS DESCRIPTION

Note: TRANSMISSION SEAL

$

$

Not available

8

Husqvarna 580315301

NEEDS DESCRIPTION

Note: TRANSMISSION SPACER

$

$

Currently unavailable

10

Husqvarna 580313901

NEEDS DESCRIPTION

Note: lNSERT M6

$

$

Currently unavailable

2

Husqvarna 590214001

NEEDS DESCRIPTION

Note: TRANSMISSION HOUSING RIGHT

$

$

Currently unavailable

4

Husqvarna 519653053

BEARING

Note: BALL BEARING 6305 2RS

$

$

Not available
