TF 435 (967101201) - Husqvarna Front-Tine Tiller (2016-09) HANDLE & CONTROLS Parts Diagram

Front-Tine Tiller

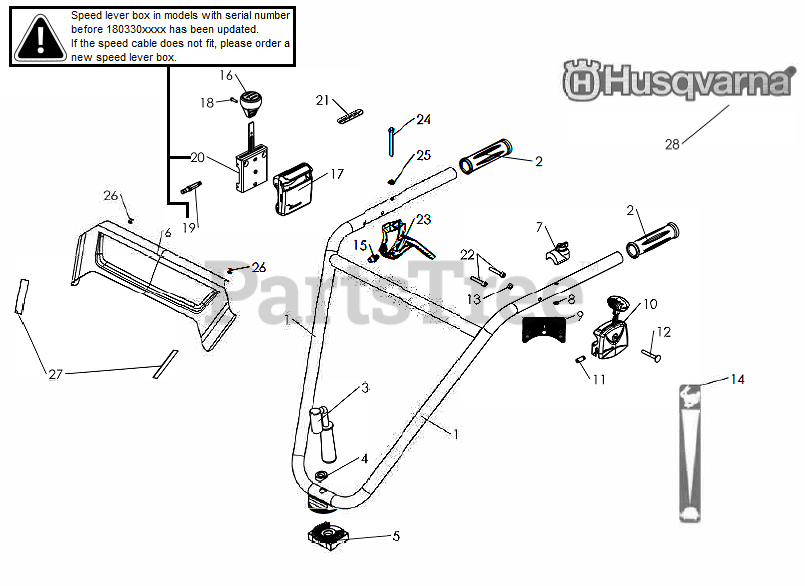

HANDLE & CONTROLS Parts Diagram

  • Title

16

Husqvarna 580318701

KNOB

Note: SPEED SELECTOR LEVER

$

$

Not available

17

Husqvarna 580318801

NEEDS DESCRIPTION

Note: GEAR CONTROL COVER

$

$

Currently unavailable

6

Husqvarna 590216101

NEEDS DESCRIPTION

Note: HANDLE PANEL ORANGE

$

$

Currently unavailable

22

Husqvarna 519653026

BOLT

Note: SCREW CHC M6X35 Z

$

$

Not available

1

Husqvarna 590362001

NEEDS DESCRIPTION

Note: HANDLEBAR GREY 627

$

$

Currently unavailable

5

Husqvarna 519653415

SPACER

Note: FILLER PIECE

$

$

Not available

27

Husqvarna 590216301

NEEDS DESCRIPTION

Note: FACES DOUBLE TAPED

$

$

Currently unavailable

11

Husqvarna 577525001

NEEDS DESCRIPTION

Note: THROTTLE CABLE

$

$

Currently unavailable

13

Husqvarna 732261601

Blocking nut M 6 Z

Note: BLOCKING NUT M 6 Z

$

$

Not available

26

Husqvarna 590216201

NEEDS DESCRIPTION

Note: RIVET 4X10

$

$

Currently unavailable

2

Husqvarna 519000113

HANDLE

Note: HAND SIDE GRIP 025

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 577453001

NEEDS DESCRIPTION

Note: THROTTLE LEVER

$

$

Currently unavailable

12

Husqvarna 577453801

NEEDS DESCRIPTION

Note: SCREW TRCC 6X45 Z

$

$

Currently unavailable

23

Husqvarna 577463601

NEEDS DESCRIPTION

Note: HANDLEVER

$

$

Currently unavailable

28

Husqvarna 590171801

NEEDS DESCRIPTION

Note: STICKER HUSQVARNA

$

$

Currently unavailable

15

Husqvarna 577463701

NEEDS DESCRIPTION

Note: CLUTCH CABLE

$

$

Currently unavailable

18

Husqvarna 580313801

NEEDS DESCRIPTION

Note: SCREW PT WN 1412 KB 40X14

$

$

Currently unavailable

14

Husqvarna 531008251

NEEDS DESCRIPTION

Note: STICKER THROTTLE CONTROL

$

$

Currently unavailable

7

Husqvarna 531008558

NEEDS DESCRIPTION

Note: SWITCH ENGINE CUT-OFF

$

$

Currently unavailable

9

Husqvarna 501963701

LABEL

Note: STICKER SWITCH ON-OFF

$

$

Not available

25

Husqvarna 531009403

NEEDS DESCRIPTION

Note: CONTACT WASHER 6

$

$

Currently unavailable

24

Husqvarna 519653113

NEEDS DESCRIPTION

Note: SCREW H 6X60 Z

$

$

Currently unavailable

20

Husqvarna 597375901

NEEDS DESCRIPTION

Note: GEAR LEVER CONTROL

$

$

Currently unavailable

4

Husqvarna 519653414

SPACER

Note: TIGHTENING LEVER SPACER

$

$

Not available

19

Husqvarna 597376001

NEEDS DESCRIPTION

Note: GEAR CABLE

$

$

Currently unavailable

3

Husqvarna 531008237

NEEDS DESCRIPTION

Note: HANDLEBAR TIGHTENING LEVER GREY

$

$

Currently unavailable

21

Husqvarna 580320301

NEEDS DESCRIPTION

Note: SPEED LABEL 2+N+R+N+1

$

$

Currently unavailable

8

Husqvarna 531008539

NEEDS DESCRIPTION

Note: WASHER M 3.2X10X1 Z

$

$

Currently unavailable
