TF 435 P (967101301) - Husqvarna Front-Tine Tiller (2016-09) TRANSMISSION 2 Parts Diagram

Front-Tine Tiller

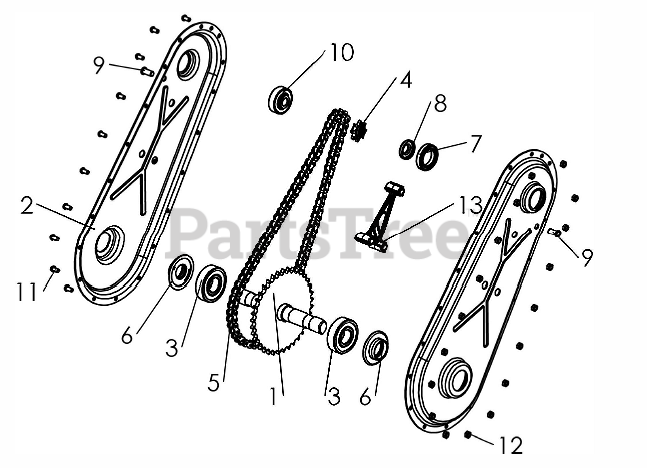

TRANSMISSION 2 Parts Diagram

  • Title

3

Husqvarna 519653053

BEARING

Note: BALL BEARING 6305 2RS

$

$

Not available

4

Husqvarna 519653057

PINION

Note: PIGNON 8 TOOTH 12.7

$

$

Not available

1

Husqvarna 580317001

NEEDS DESCRIPTION

Note: BLADE SHAFT 37 TEETH 12.7

$

$

Currently unavailable

13

Husqvarna 580315401

NEEDS DESCRIPTION

Note: TRANSMISSION SPACER

$

$

Currently unavailable

7

Husqvarna 580315901

BALL BEARING

Note: BALL BEARING 6906 2RS

$

$

Not available

5

Husqvarna 580316301

NEEDS DESCRIPTION

Note: CHAIN (78 LINKS RSF) 08B 12.7

$

$

Currently unavailable

6

Husqvarna 531008576

NEEDS DESCRIPTION

Note: TRANSMISSION SEAL

$

$

Not available

10

Husqvarna 531008546

NEEDS DESCRIPTION

Note: SPECIAL BALL BEARING 6204 2RS

$

$

Not available

2

Husqvarna 580321701

NEEDS DESCRIPTION

Note: TRANSMISSION HOUSING 8/37 BLACK RAL 9005

$

$

Currently unavailable

12

Husqvarna 732261601

Blocking nut M 6 Z

Note: BLOCKING NUT M 6 Z

$

$

Not available

11

Husqvarna 580313701

NEEDS DESCRIPTION

Note: SCREW TORX M6X12

$

$

Currently unavailable

9

Husqvarna 580313901

NEEDS DESCRIPTION

Note: lNSERT M6

$

$

Currently unavailable

8

Husqvarna 580315301

NEEDS DESCRIPTION

Note: TRANSMISSION SPACER

$

$

Currently unavailable
