TF 536 (967329901) - Husqvarna Front-Tine Tiller (2014-11) PRODUCT COMPLETE Parts Diagram

Front-Tine Tiller

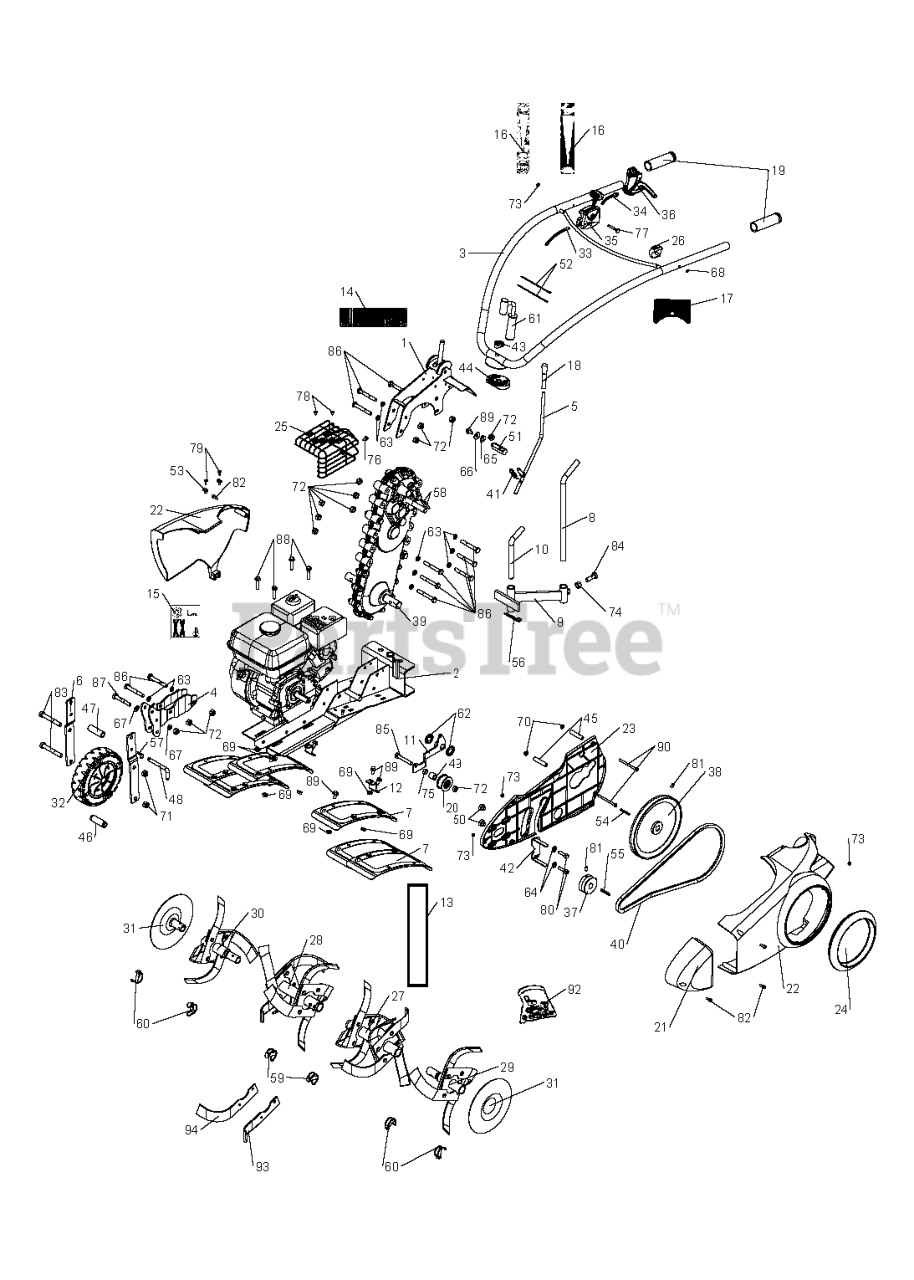

PRODUCT COMPLETE Parts Diagram

  • Title

69

Husqvarna 519653430

NUT

Note: NUT H M8 Z NOTCHED SHOULDER

$

$

Not available

70

Husqvarna 519653432

NUT

Note: NUT H M6 Z NOTCHED SHOULDER

$

$

Not available

75

Husqvarna 519653456

NUT

Note: NUT HM 10Z

$

$

Not available

68

Husqvarna 531008539

NEEDS DESCRIPTION

Note: Washer M 3.2x10x1 Z, GX

$

$

Currently unavailable

1

Husqvarna 587995101

NEEDS DESCRIPTION

Note: BRACKET QJV3 GRIS (627)

$

$

Currently unavailable

16

Husqvarna 519646680

NEEDS DESCRIPTION

Note: STICKER THROTTLE CONTROL STOP-MIN-MAX, EP

$

$

Not available

44

Husqvarna 580315101

NEEDS DESCRIPTION

Note: M0701 FILLER PIECE

$

$

Currently unavailable

74

Husqvarna 501992301

NUT 0300201202

Note: NUT HM 12Z

$

$

Not available

46

Husqvarna 575360801

NEEDS DESCRIPTION

Note: PLASTIC SPACER 20x12.5x61.5

$

$

Currently unavailable

38

Husqvarna 519653292

NEEDS DESCRIPTION

Note: TRANSMISSION PULLEY

$

$

Currently unavailable

37

Husqvarna 519653290

NEEDS DESCRIPTION

Note: ENGINE PULLEY D60 BORE 19,06

$

$

Currently unavailable

36

Husqvarna 577547801

NEEDS DESCRIPTION

Note: HANDLEVER LAKS C27 D25 CLUTCHING SYMBOL

$

$

Not available

41

Husqvarna 580536401

SPRING LOCKING

Note: LOCKING SPRING

$

$

Not available

64

Husqvarna 544314901

NEEDS DESCRIPTION

Note: CONTACT WASHER 8

$

$

Currently unavailable

76

Husqvarna 504052701

NEEDS DESCRIPTION

Note: Screw HM6x16 z Self-tapping, GX

$

$

Currently unavailable

92

Husqvarna 519006417

HOLDER

Note: BAG OF SCREWS (QUATRO)

$

$

Not available

12

Husqvarna 543309601

NEEDS DESCRIPTION

Note: BRACKET FOR TINE GUARD QJ

$

$

Currently unavailable

73

Husqvarna 732261601

Blocking nut M 6 Z

Note: BLOCKING NUT M 6 Z

$

$

Not available

71

Husqvarna 752255051

NEEDS DESCRIPTION

Note: BLOCKING NUT M 12 Z

$

$

Currently unavailable

21

Husqvarna 587995601

NEEDS DESCRIPTION

Note: FRONT COVER QJV3 ORANGE RAL2009

$

$

Currently unavailable

86

Husqvarna 580537701

SCREW

Note: Screw H M10x75 z

$

$

Not available

61

Husqvarna 531008237

NEEDS DESCRIPTION

Note: HANDLEBAR TIGHTENING LEVER

$

$

Currently unavailable

89

Husqvarna 531008202

NEEDS DESCRIPTION

Note: SCREW H M8X16 Z NOTCHED SHOULDER CL 6.8

$

$

Not available

85

Husqvarna 587996301

NEEDS DESCRIPTION

Note: SCREW H M10x65 Z DIN933

$

$

Currently unavailable

40

Husqvarna 519653242

NEEDS DESCRIPTION

Note: BAREBACK BELT A46 BBK

$

$

Currently unavailable

57

Husqvarna 519651220

COTTER PIN

Note: CLIP PIN BETA 2 Z

$

$

Not available

19

Husqvarna 544311401

NEEDS DESCRIPTION

Note: HAND SIDE GRIP

$

$

Currently unavailable

78

Husqvarna 585365401

NEEDS DESCRIPTION

Note: POZIDRIVE SCREW M5x10Z, GX

$

$

Currently unavailable

5

Husqvarna 587995401

NEEDS DESCRIPTION

Note: GEARSHIFT LEVER QJV3

$

$

Currently unavailable

51

Husqvarna 580537501

NEEDS DESCRIPTION

Note: PIN FOR GEARSHIFT LEVER

$

$

Currently unavailable

48

Husqvarna 544309801

NEEDS DESCRIPTION

Note: PIN TRANSPORT WHEEL ¯10

$

$

Currently unavailable

58

Husqvarna 580537601

NEEDS DESCRIPTION

Note: COTTER-PIN 6X40 HBK

$

$

Currently unavailable

16

Husqvarna 531008251

NEEDS DESCRIPTION

Note: Label throttle control without stop, GX

$

$

Currently unavailable

6

Husqvarna 501988401

WHEEL BRACKET

Note: QUATRO SENIOR SUPPORT WHEEL BLACK RAL9005

$

$

Not available

35

Husqvarna 577453001

NEEDS DESCRIPTION

Note: THROTTLE LEVER LGC BLACK KNOB RAL9005

$

$

Currently unavailable

29

Husqvarna 531008522

NEEDS DESCRIPTION

Note: LEFT ADDITIONAL TINE D25 HELICOID BLADE (40X4)

$

$

Currently unavailable

27

Husqvarna 544310901

NEEDS DESCRIPTION

Note: LEFT TWIN TINES D25 HELICOID BLADE (40X4)

$

$

Currently unavailable

32

Husqvarna 580318201

NEEDS DESCRIPTION

Note: RT wheel ¯200 bore 20

$

$

Currently unavailable

76

Husqvarna 576145201

NEEDS DESCRIPTION

Note: SHEET SCREW TCB 4.8 X 9.5, EP

$

$

Currently unavailable

78

Husqvarna 575361501

NEEDS DESCRIPTION

Note: SCREW HM6 X 10 Z CL6.8 SMTH SHOULD PILOT PNT NFE25019, EP

$

$

Currently unavailable

83

Husqvarna 501992001

SCREW 0300011213

Note: Screw HM12x85z

$

$

Not available

24

Husqvarna 580319201

NEEDS DESCRIPTION

Note: M0701 DRESS UP HOLLOW DISK GREY (627)

$

$

Currently unavailable

53

Husqvarna 580314101

NEEDS DESCRIPTION

Note: EASYBOSS CLIP 40X25X7

$

$

Currently unavailable

15

Husqvarna 587699901

NEEDS DESCRIPTION

Note: STICKER NOISE LEVEL '100 dB'

$

$

Currently unavailable

23

Husqvarna 587995901

NEEDS DESCRIPTION

Note: INTERIOR HIDE QJV3 BLACK RAL9005

$

$

Currently unavailable

14

Husqvarna 580538201

NEEDS DESCRIPTION

Note: SPEED LABEL QJV2

$

$

Currently unavailable

93

Husqvarna 531008547

NEEDS DESCRIPTION

Note: Left spiral blade

$

$

Currently unavailable

54

Husqvarna 519653201

NEEDS DESCRIPTION

Note: KEY 5X5X40 TOL h 9 - XC 48

$

$

Currently unavailable

11

Husqvarna 544309701

NEEDS DESCRIPTION

Note: PLATE FOR CLUTCH LEVER QJ

$

$

Currently unavailable

80

Husqvarna 531008586

NEEDS DESCRIPTION

Note: SCREW 5/16 TH 24 UNF LG 32

$

$

Currently unavailable

56

Husqvarna 519653166

NEEDS DESCRIPTION

Note: BETA PIN BETA 3 Z

$

$

Currently unavailable

65

Husqvarna 580538101

NEEDS DESCRIPTION

Note: ONDUFLEX SPRING WASHER D12

$

$

Currently unavailable

28

Husqvarna 544311001

NEEDS DESCRIPTION

Note: RIGHT TWIN TINES D25 HELICOID BLADE (40X4)

$

$

Currently unavailable

50

Husqvarna 531008236

NEEDS DESCRIPTION

Note: SPACER 13x9x15.5

$

$

Currently unavailable

55

Husqvarna 519653021

SCREW

Note: KEY 4.76X4.76X40 DRO TOL h 9 - XC 48

$

$

Not available

8

Husqvarna 544309301

NEEDS DESCRIPTION

Note: SPUR BLACK RAL9005

$

$

Currently unavailable

34

Husqvarna 587996001

NEEDS DESCRIPTION

Note: CLUTCH CABLE LG1200 CF222 LAKS LEVER x CLIP TIP

$

$

Currently unavailable

91

Husqvarna 576145401

NEEDS DESCRIPTION

Note: Screw HM 6x20 notched shoulder

$

$

Currently unavailable

49

Husqvarna 531008595

NEEDS DESCRIPTION

Note: SPACER 20x10.5x21

$

$

Currently unavailable

3

Husqvarna 587994901

NEEDS DESCRIPTION

Note: HANDLEBAR QJV3 GREY (627)

$

$

Currently unavailable

13

Husqvarna 587995501

NEEDS DESCRIPTION

Note: STICKER SECURITY

$

$

Currently unavailable

17

Husqvarna 501963701

LABEL

Note: STICKER SWITCH ON-OFF GX

$

$

Not available

59

Husqvarna 577453601

NEEDS DESCRIPTION

Note: CLIP PIN D10 x 36

$

$

Currently unavailable

62

Husqvarna 735587100

WASHER

Note: STARLOCK WASHER D16

$

$

Not available

72

Husqvarna 519653458

NUT

Note: BLOCKING NUT M 10 Z

$

$

Not available

25

Husqvarna 531008582

NEEDS DESCRIPTION

Note: EXHAUST GRILL EP

$

$

Not available

81

Husqvarna 728692300

SCREW

Note: SCREW ST HC M8X16 DIN 914 45H

$

$

Not available

18

Husqvarna 580536201

NEEDS DESCRIPTION

Note: GEAR SHIFT LEVER HANDLE

$

$

Currently unavailable

94

Husqvarna 531008548

NEEDS DESCRIPTION

Note: Right spiral blade

$

$

Currently unavailable

84

Husqvarna 519653130

NEEDS DESCRIPTION

Note: SCREW H M12X35 Z

$

$

Currently unavailable

7

Husqvarna 544307701

NEEDS DESCRIPTION

Note: Grey (627) tine guard

$

$

Currently unavailable

33

Husqvarna 577453101

NEEDS DESCRIPTION

Note: Throttle cable Lg 1250mm stroke 60mm

$

$

Currently unavailable

22

Husqvarna 587995701

NEEDS DESCRIPTION

Note: BELT COVER QJV3 ORANGE RAL2009

$

$

Currently unavailable

60

Husqvarna 577453501

NEEDS DESCRIPTION

Note: CLIP PIN D8 x 36

$

$

Currently unavailable

47

Husqvarna 501991101

SPACER 0302020070

Note: Spacer 20 x 13 x 61

$

$

Not available

87

Husqvarna 544313601

NEEDS DESCRIPTION

Note: Screw H M10x70 z

$

$

Currently unavailable

25

Husqvarna 531009418

NEEDS DESCRIPTION

Note: EXHAUST GRILL GX120/GX160

$

$

Currently unavailable

66

Husqvarna 580538001

WASHER

Note: WASHER 8X24X3

$

$

Not available

9

Husqvarna 544309201

NEEDS DESCRIPTION

Note: ADJUSTABLE SPUR ARM BLACK RAL9005

$

$

Currently unavailable

43

Husqvarna 580315201

SPACER

Note: Tightenning lever spacer height 16

$

$

Not available

63

Husqvarna 519653160

NEEDS DESCRIPTION

Note: Spring washer ¯10

$

$

Currently unavailable

67

Husqvarna 501992401

WASHER 0300401003

Note: Washer M 10x20x2z

$

$

Not available

30

Husqvarna 531008523

NEEDS DESCRIPTION

Note: RIGHT ADDITIONAL TINE D25 HELICOID BLADE (40X4)

$

$

Currently unavailable

2

Husqvarna 587995001

NEEDS DESCRIPTION

Note: QJV3 FRAME GREY (627)

$

$

Currently unavailable

31

Husqvarna 519653362

NEEDS DESCRIPTION

Note: DISK D25 BLACK RAL9005

$

$

Not available

90

Husqvarna 587996401

NEEDS DESCRIPTION

Note: SCREW H M6x80 Z

$

$

Currently unavailable

88

Husqvarna 519653413

SCREW

Note: SCREW H M8 X 40

$

$

Not available

22

Husqvarna 587995801

NEEDS DESCRIPTION

Note: RIGHT COVER QJV3 ORANGE RAL2009

$

$

Currently unavailable

77

Husqvarna 577453801

NEEDS DESCRIPTION

Note: SCREW TRCC 6 X 45 Z

$

$

Currently unavailable

26

Husqvarna 531008558

NEEDS DESCRIPTION

Note: Switch engine cut-off

$

$

Currently unavailable

79

Husqvarna 519653426

SCREW

Note: SCREW POZI 4.2X16Z

$

$

Not available

45

Husqvarna 587996201

NEEDS DESCRIPTION

Note: SPACER 6X12X55 Z

$

$

Currently unavailable

52

Husqvarna 544311101

NEEDS DESCRIPTION

Note: COLLAR

$

$

Currently unavailable

20

Husqvarna 519653457

PULLEY

Note: CLUTCH RUNNER ROUL 6200 ZZ

$

$

Not available

4

Husqvarna 587995301

NEEDS DESCRIPTION

Note: WHEEL + COUNTERWEIGHT SUPPORT BLACK

$

$

Currently unavailable

39

Husqvarna 580536101

NEEDS DESCRIPTION

Note: GEAR BOX 2 FRONT SPEED+1 REVERSE SPEED

$

$

Currently unavailable

42

Husqvarna 587996101

NEEDS DESCRIPTION

Note: DRIVE BELT PULLEY D60

$

$

Currently unavailable

10

Husqvarna 544309501

NEEDS DESCRIPTION

Note: SPUR PIN ¯16

$

$

Currently unavailable
