TF22G - Task Force Hedge Trimmer CARBURETOR BREAKDOWN (WT-221), HANDLE & BLADE Parts Diagram

Hedge Trimmer

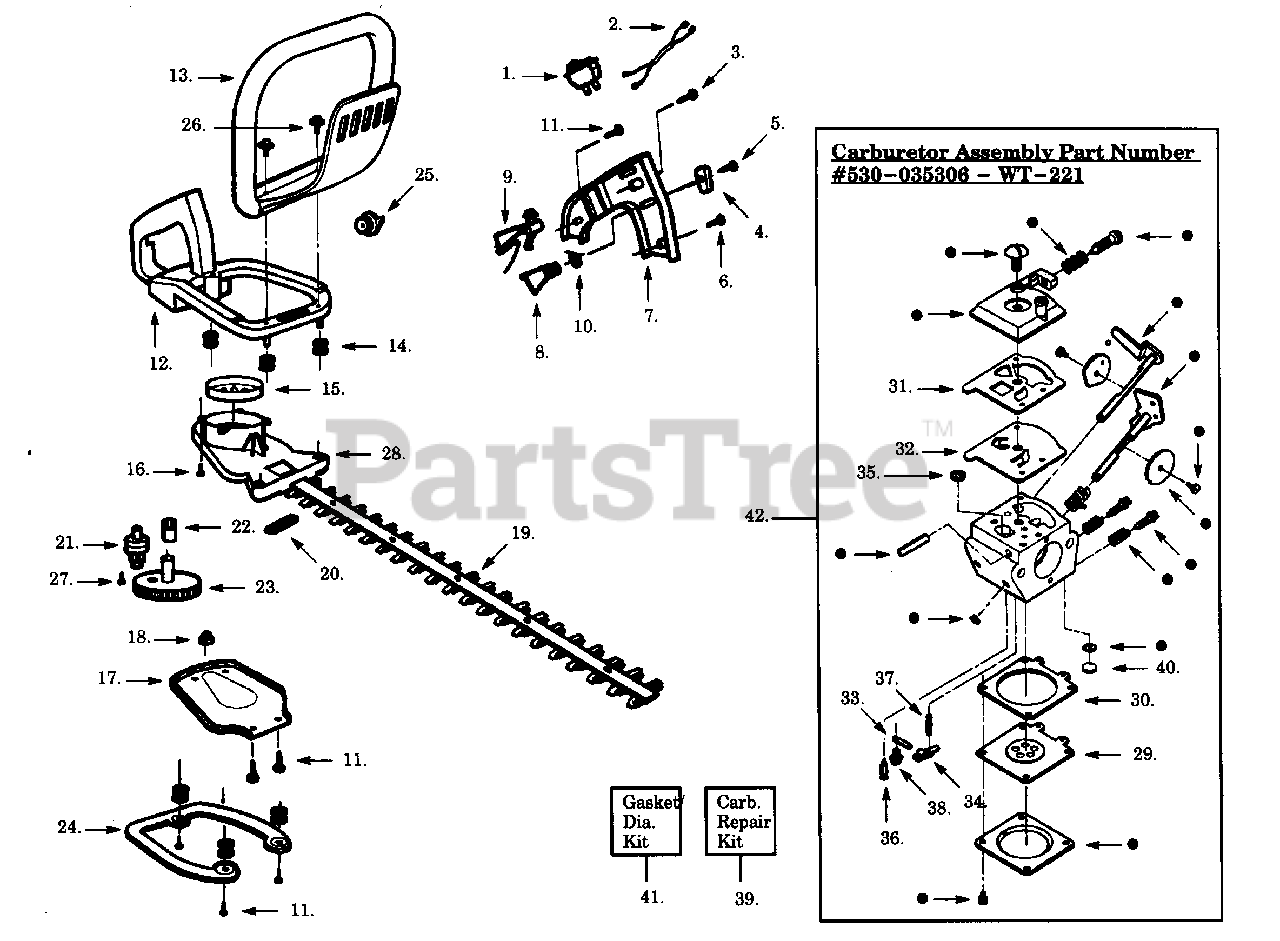

CARBURETOR BREAKDOWN (WT-221), HANDLE & BLADE Parts Diagram

  • Title

1

Poulan 530029954

Ignition Switch

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 530036443

Lead Wire Ass'y.
(Superseded to 545172901)

$13.84

$

Usually ships in 3-10 days

0

3

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530029958

Trigger Lever

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

6

Poulan 530015770

Screw

$

$

Not available

7

Poulan 530029960

Handle Cover

$

$

Not available

8

Poulan 530029956

Throttle Trigger
(Superseded to 530053884)

$3.99

$

In Stock, only 3 left!

0

9

Poulan 530036122

Throttle Lockout

$

$

Not available

10

Poulan 530036123

Trigger Spring

$3.99

$

In Stock, only 4 left!

0

11

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530029963

Rear Handle & Tank Ass'y.

$26.99

$

Usually ships in 3-10 days

0

13

Poulan 530094992

Front Handle

$

$

Not available

14

Poulan 530029946

Isolator Spring

$3.99

$

In Stock, only 4 left!

0

15

Poulan 530048113

Clutch Drum
(Superseded to 530056069)

$36.99

$

Usually ships in 3-10 days

0

16

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

17

Poulan 530029916

Gear Box Plate

$6.49

$

In Stock, only 2 left!

0

18

Poulan 530032121

Bushing Blade

$

$

Not available

19

Poulan 530095074

Blade Ass'y. (22")
(Superseded to 530403228)

$

$

Not available

20

Poulan 530029948

Blade Seal

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530036228

Pinion Ass'y.

$

$

Not available

22

Poulan 530016013

Drive Gear Bearings

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 530069355

Drive Gear Ass'y.

$

$

Not available

24

Poulan 530036046

Isolator Plate

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530014678

Fuel Cap Ass'y.

$

$

Not available

26

Poulan 530015955

Screw

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

28

Poulan 530014399

Gear Box Ass'y. (Inc. 21, 22 & 27)
(Superseded to 530071931)

$

$

Not available

29

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

30

Poulan 530035332

Metering Diaphragm Gasket
(Superseded to 530035320)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530035164

Pump Gasket
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

32

Poulan 530035166

Pump Diaphragm
(Superseded to 504130807)

$6.49

$

In Stock, Qty 11

0

33

Poulan 530035250

Metering Pin
(Superseded to 505520125)

$3.49

$

In Stock, only 3 left!

0

34

Poulan 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

35

Poulan 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530035223

Inlet Needle Valve
(Superseded to 503563401)

$6.49

$

In Stock, Qty 12

0

37

Poulan 530035139

Metering Lever Spring
(Superseded to 530035188)

$4.99

$

In Stock, Qty 11

0

38

Poulan 530035236

Metering Lever Pin Screw

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 530035312

Carburetor Repair Kit (Inc. 33,34,35,36,37, 38,40)

$30.99

$

Usually ships in 3-10 days

0

40

Poulan 530035319

Welch Plug

$

$

Not available

41

Poulan 530035313

Gasket/Diaphragm Kit (Inc. 29,30,31,32)

$

$

Not available

42

Poulan 530035306

Carburetor Ass'y. WT-221
(Superseded to 530035305)

Note: Parts indicated by an . in illustration are for clarity only, order complete assembly.

$

$

Not available
