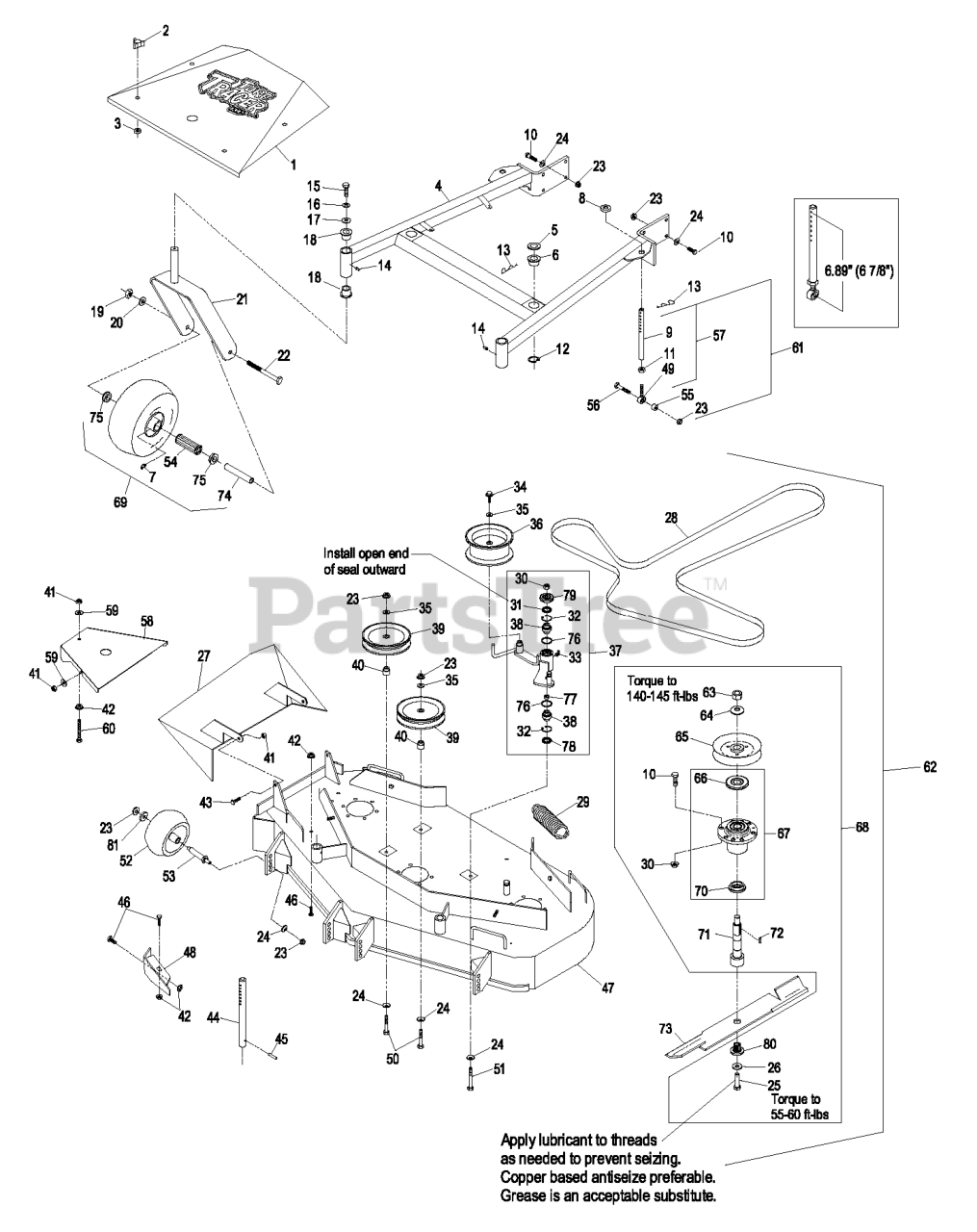

  • Title
1-414387

1

Shield, Belt (1-413101-01) W/Decals

Part# 1-414387 (Superseded to 116-2711)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $228.53

1-323385

2

Knob

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.75

1-323417

3

Washer

Part# 1-323417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.21

1-414310

4

Wld, Support (1-412110-01) W/Bushings & Decals

Part# 1-414310

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $801.13

1-413425

5

Spacer, Front Deck Support

Part# 1-413425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.82

1-513336

6

Bushing, Deck Support

Part# 1-513336

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.82

302-61

7

Zerk, 45deg 1/4-28

Part# 302-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.90

1-323539

8

Spacer

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.07

1-413525

9

Link, Deck Support

Part# 1-413525

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.37

323-7

10

Screw, Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3219-3

11

Nut, Hex 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

32120-33

12

Ring, Retaining

Part# 32120-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.43

1-806009

13

Hairpin, Cotter #206

Part# 1-806009

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

302-52

14

Zerk, 1/8-27 Str

Part# 302-52

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00

323-6

15

Screw, Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

3253-5

16

Washer, Lock 3/8 Heavy

Part# 3253-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

1-373034

17

Washer

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-303514

18

Bearing, Flange

Part# 1-303514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.46

3217-9

19

Nut, Hex 1/2-13

Part# 3217-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44

3253-7

20

Washer, Lock 1/2

Part# 3253-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

1-522143-01

21

Wld, Caster

Part# 1-522143-01 (Superseded to 116-7941-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $62.94

325-20

22

Screw, Hh 1/2-13 X 6

Part# 325-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.89

3290-357

23

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

98-5975

24

Washer, Spring Disk 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3213-5

25

Screw, Hh 1/2-20 X 2

Part# 3213-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.68

1-513435

26

Washer, Spring Disk 1/2

Part# 1-513435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

103-2431-01

27

Wld, Discharge Chute

Part# 103-2431-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $99.66

1-413093

28

Belt, Deck Drive

Part# 1-413093

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $106.19

103-3330

29

Spring, Extension

Part# 103-3330 (Superseded to 116-6317)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.39

3296-39

30

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

103-3506

31

Seal, Single Lip

Part# 103-3506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.27

32120-10

32

Ring, Retaining

Part# 32120-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

302-40

33

Zerk, 90deg 1/4-28

Part# 302-40

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.45

3234-11

34

Screw, Hh Flg 3/8-16 X 1

Part# 3234-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.22

3256-24

35

Washer, 3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

1-413099

36

Pulley, Idler

Part# 1-413099 (Superseded to 116-4666)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.47

103-8585

37

Kit, Idler Arm (103-7356-03) W/Brgs

Part# 103-8585

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $148.90

103-3504

38

Bearing, Spherical

Part# 103-3504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.68

1-613098

39

Pulley, Idler

Part# 1-613098

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

1-413113

40

Bushing, Idler

Part# 1-413113

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

3296-29

41

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

32128-20

42

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

322-5

43

Screw, Hh 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

1-603001

44

Rod, Deck Support

Part# 1-603001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.60

1-806332

45

Rollpin, 1/4 X 1 1/2

Part# 1-806332 (Superseded to 32121-15)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

322-2

46

Screw, Hh 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

1-414384

47

Wld, Deck (1-412106-01) W/Decals, Discharge Baffle & Support Rods

Part# 1-414384

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1828.39

1-522480-01

48

Baffle, Discharge

Part# 1-522480-01 (Superseded to 116-2297-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.65

1-613204

49

Balljoint

Part# 1-613204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.38

323-13

50

Screw, Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.91

98-5961

51

Screw, Hh 3/8-16 X 4 Gr8

Part# 98-5961

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.75

1-603299

52

Roller, Antiscalp

Part# 1-603299

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

99-2842

53

Spacer

Part# 99-2842 (Superseded to 126-2928)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.61

1-513809

54

Bearing. Roller Bearing

Part# 1-513809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.90

1-603050

55

Bushing Spacer

Part# 1-603050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.01

323-9

56

Screw, Hh 3/8-16x1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

1-414521

57

Link, Assembly

Part# 1-414521 (Superseded to 1-411532)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $101.40

103-2970-01

58

Shield, Belt

Part# 103-2970-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

3256-3

59

Washer, 5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

1-800017

60

Bolt, Hh 5/16-18 X 3 1/4 Tap

Part# 1-800017

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.65

1-411532

61

Kit, Link Assembly

Part# 1-411532

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $101.40

103-0321

62

Asm, Deck Complete

Part# 103-0321

OEM Warranty Repair Part for Exmark

Currently unavailable

3217-46

63

Nut, Hh 3/4-16 Heavy

Part# 3217-46

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

103-2802

64

Washer, Spring Disc 3/4

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.18

1-413424

65

Sheave W/ Hub

Part# 1-413424

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.47

103-1330

66

Guard, Bearing Top

Part# 103-1330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.14

103-8280

67

Asm, Cutter Housing W/Bearings

Part# 103-8280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $184.68

103-9081

68

Asm, Cutter Housing Complete

Part# 103-9081

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $319.74

103-2171

69

Kit, Tire & Wheel Asm W/Spacer

Part# 103-2171

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $92.34

103-2535

70

Spacer, Guard Bottom

Part# 103-2535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

103-9071

71

Kit, Spindle

Part# 103-9071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $152.71

1-807268

72

Key, Machine 1/4 X 3/16 X 1

Part# 1-807268

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

103-6401

73

Blade, 16.25 Notched

Part# 103-6401 (Superseded to 103-6401-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

103-6391

Blade, 16.25 Mulching

Part# 103-6391 (Superseded to 103-6391-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.08

103-6386

Blade, 16.25 Low Lift

Part# 103-6386 (Superseded to 103-6386-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

103-6381

Blade, 16.25 Solid

Part# 103-6381 (Superseded to 103-6381-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.23

103-6396

Blade, 16.25 Extreme

Part# 103-6396 (Superseded to 116-5177-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.08

1-513547

74

Spacer

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

1-513810

75

Bushing

Part# 1-513810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

106-7159

76

O-Ring

Part# 106-7159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

103-5677

77

Spacer

Part# 103-5677

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

103-3505

78

Seal, Double, Lip

Part# 103-3505

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-2916

79

Guard, Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

103-3037

80

Bushing, Splined

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.14

63-8410

81

Washer

Part# 63-8410

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.17
