THP20KAE483 - Exmark 48" Turf Tracer HP Walk-Behind Mower, 20HP Kawasaki (SN: 850000 - 919999) (2010)

48" Turf Tracer HP Walk-Behind Mower, 20HP Kawasaki

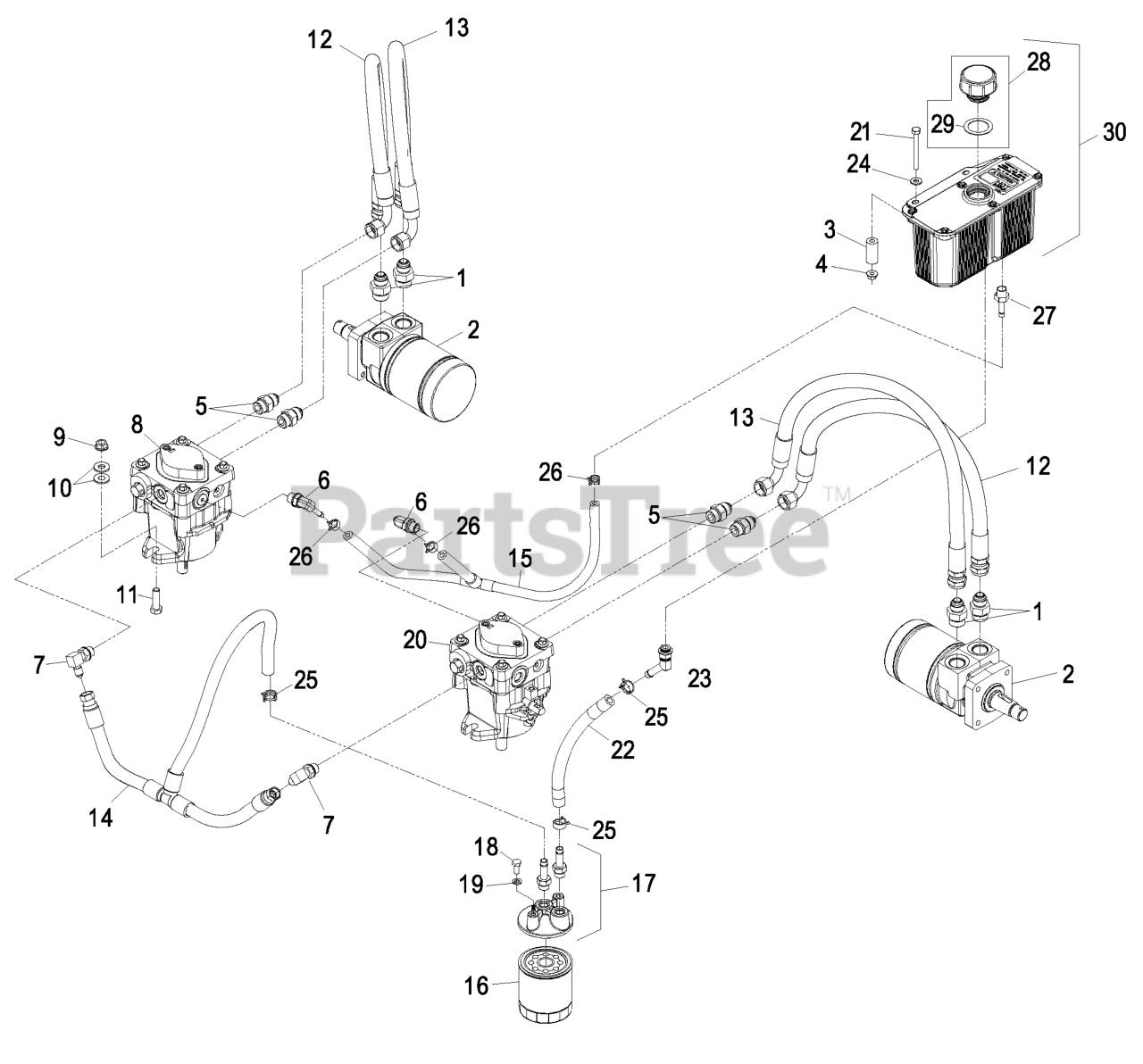

THP20KAE483 - Exmark 48" Turf Tracer HP Walk-Behind Mower, 20HP Kawasaki (SN: 850000 - 919999) (2010) > Parts Diagrams (12) > Hydraulic Group

  • Title
1-603991

1

Fitting, Straight Connector

Part# 1-603991

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.80

1-603919

O-Ring

Part# 1-603919

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

1-603992

O-Ring

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

1-603718

2

Wheel Motor

Part# 1-603718

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $842.65

1-000138

Kit, Bearing

Part# 1-000138

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $207.77

1-000119

Kit, Seal

Part# 1-000119

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $137.36

103-2191

3

Spacer, Hydraulic Tank

Part# 103-2191

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.01

32128-33

4

Nut, Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

1-603990

5

Adapter, Straight Thread

Part# 1-603990

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.53

1-603920

O-Ring

Part# 1-603920

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

103-1799

6

Elbow, 90deg

Part# 103-1799

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.36

1-603921

O-Ring

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

103-1802

7

Elbow, 90deg

Part# 103-1802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.42

116-0942

8

Pump, Hydro Lh

Part# 116-0942

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $792.68

103-2664

Kit, Input Shaft 10a

Part# 103-2664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $529.83

94-6922

Kit, Thrust Bearing 10a

Part# 94-6922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.70

103-2666

Kit, Cylinder Block 10a

Part# 103-2666

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $347.66

105-6184

Kit, Overhaul Seal

Part# 105-6184

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $57.70

3290-357

9

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

3256-3

10

Washer, 5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

323-7

11

Screw, Hh 3/8-16 X 1-1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-613034

12

Hose, Hydro

Part# 1-613034 (Superseded to 119-7827)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $58.86

1-323241

13

Hose, Hydro

Part# 1-323241

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $61.17

116-2123

14

Asm, Charge Hose

Part# 116-2123

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.39

116-0918

15

Asm, Case Drain Hose

Part# 116-0918

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.38

109-4180

16

Element, Oil Filter

Part# 109-4180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

1-523541

Element, Oil Filter(Winter)

Part# 1-523541

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

103-2889

17

Asm, Filter Head

Part# 103-2889

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $71.55

103-1912

Adapter, Straight

Part# 103-1912

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.91

321-3

18

Screw, Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

1-805004

19

Washer, Lock 1/4 Heavy

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

116-0943

20

Pump, Hydro Rh

Part# 116-0943

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $792.68

321-15

21

Screw, Hh 1/4-20 X 2 1/2

Part# 321-15

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.04

103-2959

22

Hose, Charge

Part# 103-2959

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.74

103-1807

23

Elbow, 45deg

Part# 103-1807

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.15

3256-22

24

Washer, 1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-1988

25

Clamp, Hose 11/16

Part# 103-1988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-1716

26

Clamp, Hose 17/32

Part# 103-1716

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.41

103-1801

27

Adapter, Straight

Part# 103-1801

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.76

103-7615

28

Asm, Cap W/Gasket

Part# 103-7615

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.61

103-1949

29

Gasket, Reservoir Cap

Part# 103-1949

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.53

103-1947

30

Asm, Reservoir W/Decal

Part# 103-1947

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $177.75
