TI 110 (CMXGVAM1144043) (21B-34M8793) - Craftsman 24" Tiller (2019) Belt Cover Parts Diagram

24" Tiller

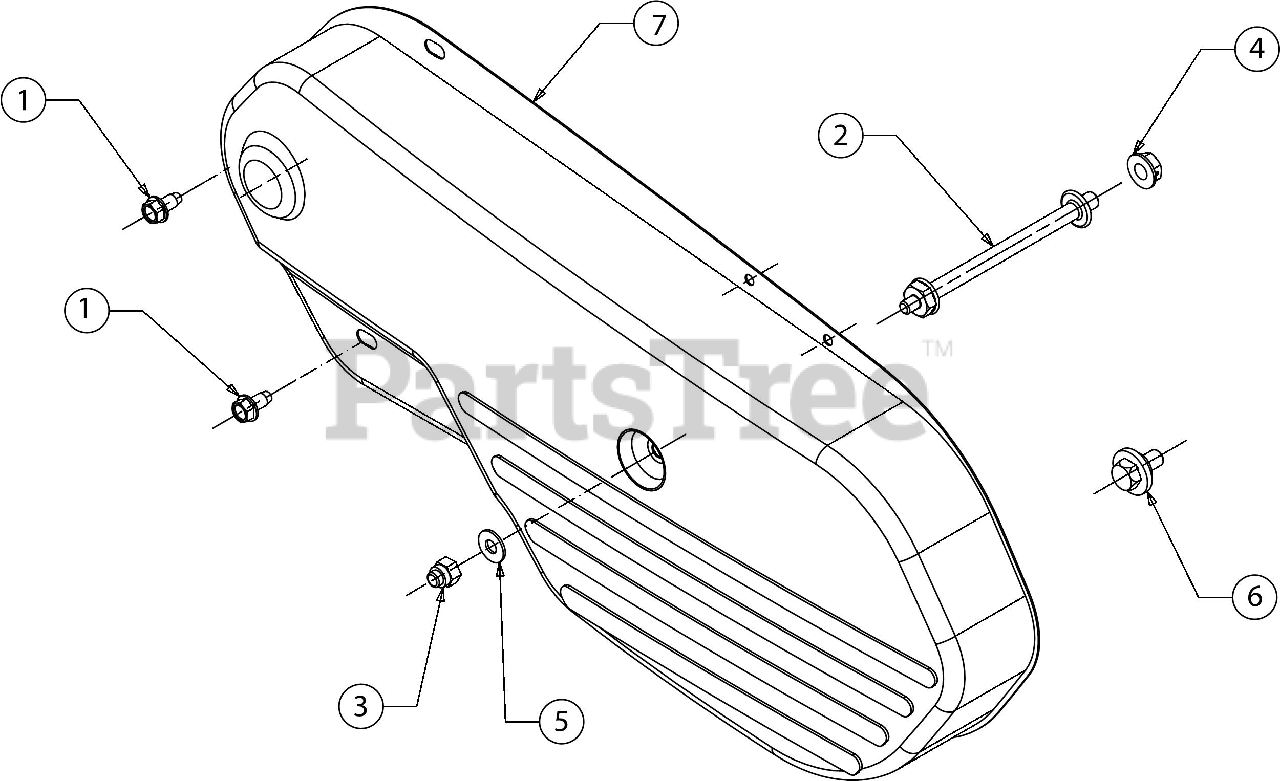

Belt Cover Parts Diagram

  • Title

1

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

2

MTD 711-0919

BELT COVER BOLT

$20.99

$

Usually ships in 3-6 days

0

3

MTD 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

4

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

6

MTD 738-0930

SHOULDER SCREW .560X.165: 5/16-18

$7.49

$

In Stock, only 1 left!

0

7

MTD 786-0056

BELT COVER W/O REV.

Note: (Choose Color When Ordering)

Variations

MTD 786-0056-0638

COVER-BELT W/O REV - MTD/TROY-BILT RED (0638)

$98.99

$

In Stock, only 1 left!

0

MTD 786-0056-0662

COVER-BELT W/O REV - OYSTER GRAY (0662)

$91.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0498

COVER-BELT W/O REV - OLD CUB YELLOW (0498)

$98.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0637

COVER-BELT W/O REV - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0650

COVER-BELT W/O REV - RED METALLIC (0650)

$91.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0665

COVER-BELT W/O REV - YARDMAN GREEN (0665)

$91.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0709

COVER-BELT W/O REV - MASTERCRAFT GREEN (0709)

$91.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0721

COVER-BELT W/O REV - SEARS RED (0721)

$91.99

$

Usually ships in 3-6 days

0

MTD 786-0056-4021

COVER-BELT W/O REV - CUB YELLOW 2 (4021)

$98.99

$

Usually ships in 3-6 days

0

MTD 786-0056-4044

COVER-BELT W/O REV - CRAFTSMAN RED (4044)

$91.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0480

W/O REV. BELT COVE - BRILLIANT GREEN (0480)

$

$

Not available

$79.99

$

Usually ships in 3-6 days

0
