Tiller 1 - Cub Cadet Tiller Attachment Chain Drive and Related Parts Parts Diagram

Tiller Attachment

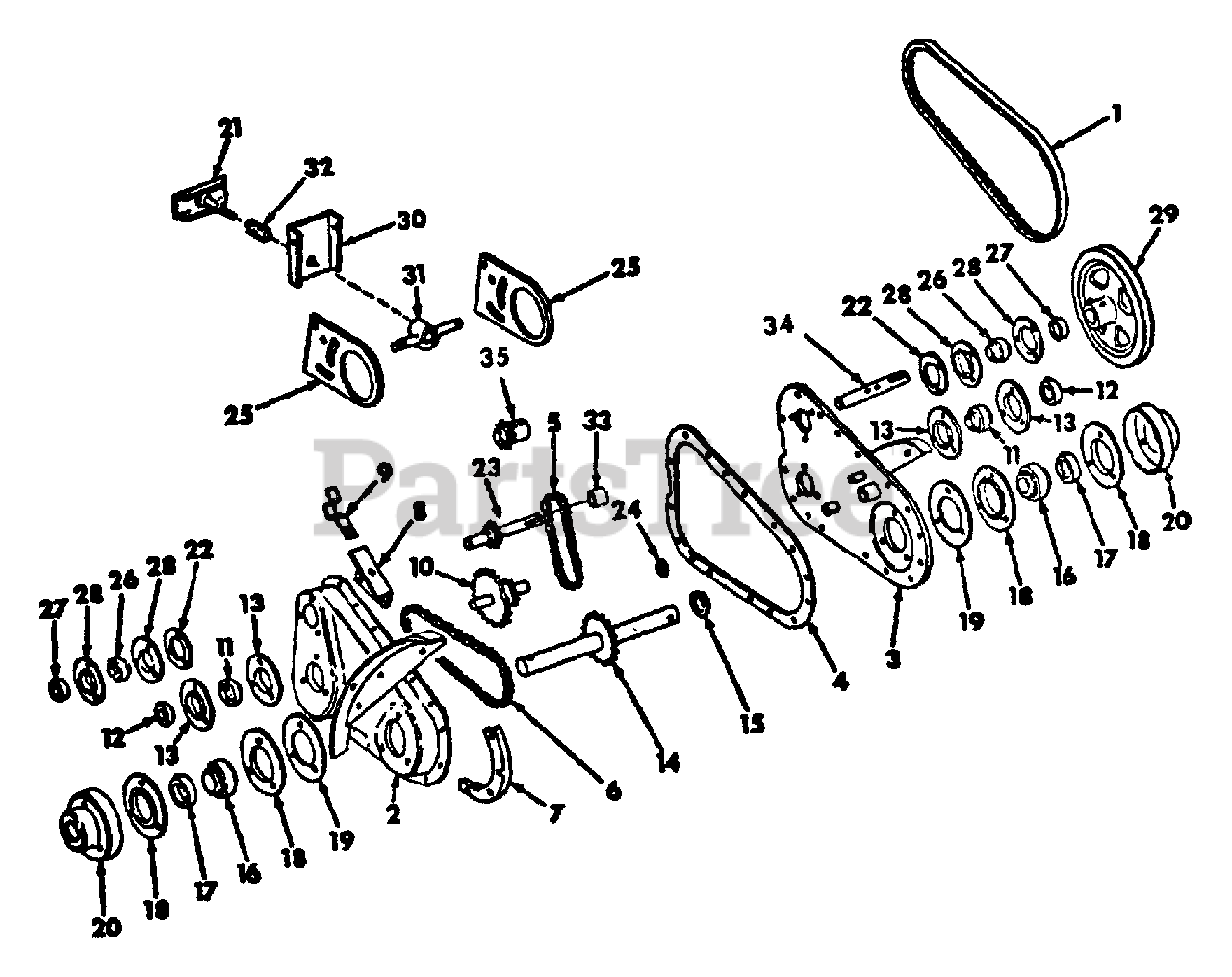

Chain Drive and Related Parts Parts Diagram

  • Title

1

Cub Cadet IH-487044-R1

BELT, DRIVE
(Superseded to IH-62235-C1)

$48.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-485248-R1

HOUSING ASSY, CHAIN DRIVE

$

$

Currently unavailable

3

485249-R1

PLATE, HOUSING BACK

$

$

Not available

Cub Cadet IH-181566

BOLT, 1/4-28 x 3/4 C-Z HEX-HD CAP
(Superseded to 710-0412)

$5.49

$

In Stock, Qty 9

0

Cub Cadet IH-485350-R1

NUT, 1/4-28 C-Z HEX. FLANGE LOCK

$

$

Currently unavailable

4

485264-R1

GASKET, CHAIN DRIVE HOUSING

$

$

Not available

5

Cub Cadet IH-485691-R1

CHAIN, MAIN DRIVE

$

$

Not available

6

Cub Cadet IH-485692-R1

CHAIN, TINE DRIVE

$

$

Not available

7

Cub Cadet IH-485265-R1

SHOE, FORMED

$

$

Not available

8

Cub Cadet IH-485266-R1

CLIP, MOUNTING BRACKET

$

$

Not available

9

Cub Cadet IH-485285-R1

CLIP, RETAINER

$

$

Not available

Cub Cadet IH-9412083

NUT 5/16-18 C-Z HEX. LOCK
(Superseded to 912-3009)

$

$

Not available

Cub Cadet IH-180077

SCREW, 5/16-18 x 3/4 C-Z HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

120386

WASHER, 5/16 x 3/4 x .051 C-Z

$

$

Not available

10

Cub Cadet IH-485255-R2

SPROCKET ASSY, IDLER 10 & 28 T (TEETH)

$

$

Not available

11

Cub Cadet IH-666589-R91

BEARING ASSY. w/o LOCKING COLLAR

$

$

Not available

12

Cub Cadet IH-455102-R21

COLLAR, LOCKING w/SET SCREW
(Superseded to IH-455102-R22)

$

$

Not available

Cub Cadet IH-102572

SCREW, 1/4-20 x 5/8 SOC-HD SET

$

$

Not available

13

Cub Cadet IH-462360-R1

FLANGE, BEARING

$

$

Not available

Cub Cadet IH-16897-R1

BOLT, 5/16-18 x 3/4 C-Z SQ-NK CRG
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet IH-485256-R2

SHAFT ASSY, MAIN DRIVE 18 T (TEETH)

$

$

Not available

15

485257-R1

SPACER

$

$

Not available

16

485259-R91

BEARING w/o LOCKING COLLAR

$

$

Not available

17

Cub Cadet IH-455104-R11

COLLAR, LOCKING w/SET SCREW

$

$

Not available

Cub Cadet IH-102572

SCREW, 1/4-20 x 5/8 SOC-HD SET

$

$

Not available

18

Cub Cadet IH-485261-R1

FLANGE, BEARING

$

$

Not available

Cub Cadet IH-634979-R1

BOLT, 3/8-16 x 1-1/2 C-Z SQ-NK CRG
(Superseded to 710-0431)

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 120382

WASHER, 3/8 C-Z MED LOCK

$

$

Currently unavailable

19

Cub Cadet IH-485262-R1

GASKET, FLANGE
(Superseded to WM-63151)

$

$

Not available

20

Cub Cadet IH-485263-R1

DUST EXCLUDER

$

$

Not available

Cub Cadet IH-63720-C1

SEAL, FELT
(Superseded to WM-63715)

$

$

Not available

21

Cub Cadet IH-485271-R1

TEE ASSY, BELT ADJUSTMENT

$

$

Currently unavailable

22

Cub Cadet IH-485253-R1

SPACER

$

$

Currently unavailable

23

Cub Cadet IH-492952-R2

SHAFT, INPUT

Note: FOR 1A TILLER

$

$

Not available

24

Cub Cadet IH-485250-R1

SEAL, ADHESIVE DUST

$

$

Not available

25

Cub Cadet IH-485254-R1

PLATE, PIVOT

$

$

Not available

26

Cub Cadet IH-471895-R91

BEARING w/o LOCKING COLLAR

$

$

Not available

27

Cub Cadet IH-455958-R11

COLLAR LOCKING

$

$

Not available

Cub Cadet IH-102572

SCREW, 1/4-20 x 5/8 SOC-HD SET

$

$

Not available

28

Cub Cadet IH-455961-R1

FLANGE BEARING

$

$

Not available

12872-R1

BOLT, 5/16-18 x 1 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet IH-485267-R1

PULLEY, DRIVE

$

$

Not available

21324-R1

KEY, 3/16 x 1-5/8 SQ PARALLEL

$

$

Not available

102581

SCREW, 5/16-18 x 3/8 SOC-HD CUP PT

$

$

Not available

30

485268-R1

CHANNEL, BELT TIGHTENER

$

$

Not available

18627-R1

BOLT, 1/4-20 x 3/4 C-Z SQ-NK

$

$

Not available

Cub Cadet IH-273924

NUT, 1/4-20 C-Z HEX. LOCK

$

$

Currently unavailable

31

Cub Cadet IH-485269-R1

ADJUSTMENT ASSY

$

$

Not available

Cub Cadet IH-480523-R1

PIN, QUICK ATTACHING COT.
(Superseded to 714-0117)

$3.99

$

In Stock, Qty 11

0

32

Cub Cadet IH-485270-R1

SPRING, COMPRESSION

$

$

Currently unavailable

Cub Cadet IH-120169

PIN, 5/32 x 1 COT.

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 x 1-1/16 x .074 C-Z
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet IH-61914-C1

SPACER, INPUT SHAFT

Note: FOR 1A TILLER

$

$

Not available

34

Cub Cadet IH-485251-R1

SHAFT, INPUT

Note: FOR 1 TILLER

$

$

Not available

35

Cub Cadet IH-485252-R1

SPROCKET 12 T FOR 1 TILLER

$

$

Not available

Cub Cadet IH-591184-R1

PIN, 3/16 x 1-1/4 SPIROL

$

$

Not available
