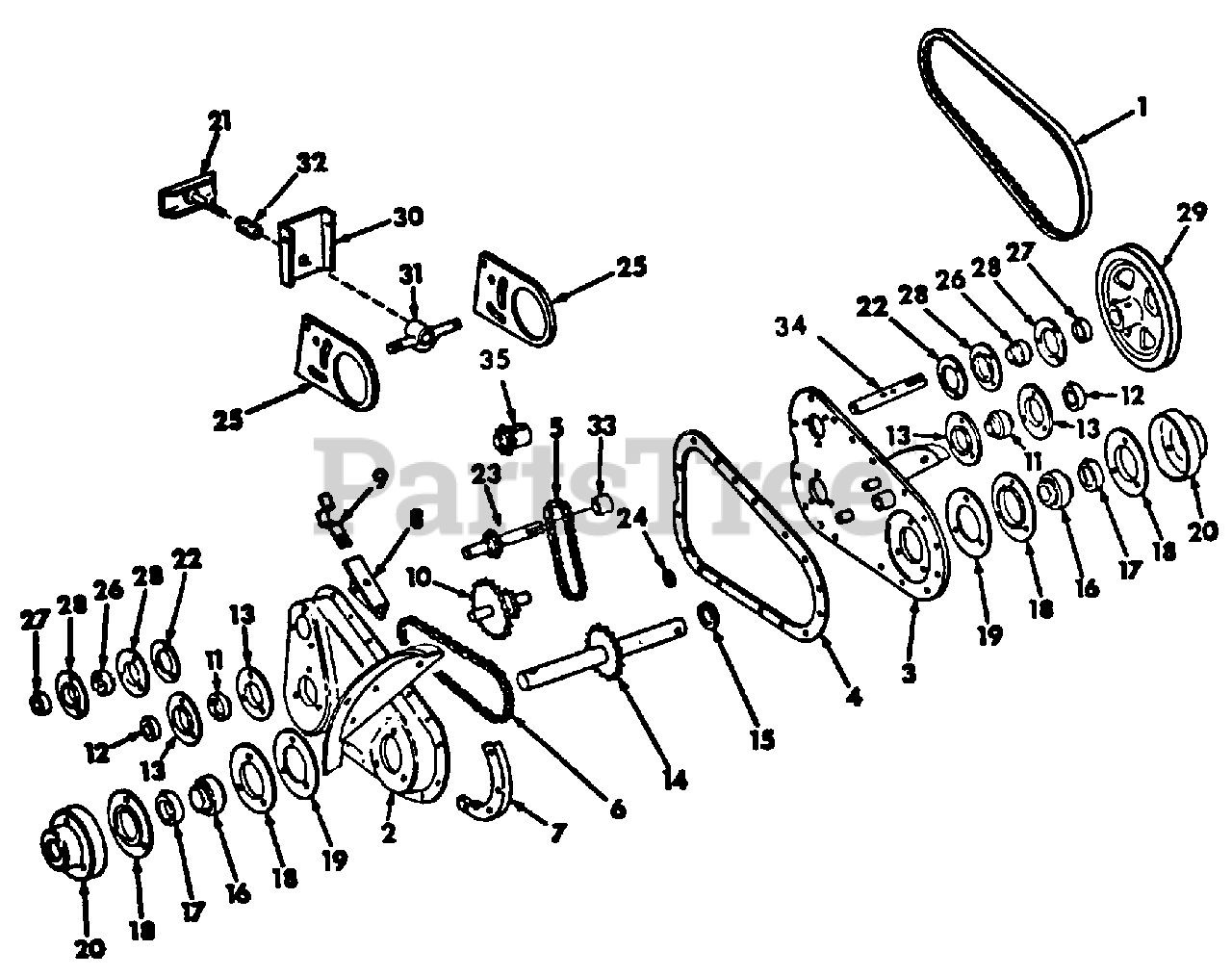

Tiller 1 - Cub Cadet Tiller Attachment Chain Drive & Related Parts Parts Diagram

Tiller Attachment

Chain Drive & Related Parts Parts Diagram

  • Title

1

Cub Cadet 487-044-R1

Belt, Drive

$

$

Currently unavailable

2

Cub Cadet 485-248-R1

Housing Assy, Chain Drive

$

$

Currently unavailable

3

Cub Cadet 485-249-R1

Plate, Housing Back

$

$

Currently unavailable

Cub Cadet IH-181566

Bolt, 1/4-28 X 3/4 C-Z Hex-Hd Cap
(Superseded to 710-0412)

$5.49

$

In Stock, Qty 9

0

Cub Cadet 485-350-R1

Nut, 1/4-28 C-Z Hex flange Lock

$

$

Currently unavailable

4

Cub Cadet 485-264-R1

Gasket, Chain Drive Housing

$

$

Currently unavailable

5

Cub Cadet 485-691-R1

Chain, Main Drive

$

$

Currently unavailable

6

Cub Cadet 485-692-R1

Chain, Tine Drive

$

$

Currently unavailable

7

Cub Cadet 485-265-R1

Shoe, Formed

$

$

Currently unavailable

8

Cub Cadet 485-266-R1

Clip, Mounting Bracket

$

$

Currently unavailable

9

Cub Cadet 485-285-R1

Clip, Retainer

$

$

Currently unavailable

Cub Cadet IH-9412083

Nut, 5/16-18 C-Z Hex Lock
(Superseded to 912-3009)

$

$

Not available

Cub Cadet IH-180077

Screw, 5/16-18 X 3/4 C-Z Hex-Hd Cap
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 120-386

Washer, 5/16 X 3/4 X .051 C-Z

$

$

Currently unavailable

10

Cub Cadet 485-255-R2

Sprocket Assy, Idler -10 & 28 T

$

$

Currently unavailable

11

Cub Cadet 666-589-R91

Bearing Assy, w/o Locking Collar

$

$

Currently unavailable

12

Cub Cadet 455-102-R21

Collar, Locking w/Set Screw

$

$

Currently unavailable

Cub Cadet IH-102572

Screw, 1/4-20 X 5/8 Soc-Hd Set

$

$

Not available

13

Cub Cadet 462-360-R1

Flange, Bearing

$

$

Currently unavailable

Cub Cadet 16-897-R1

Bolt, 5/16-18 X 3/4 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 485-256-R2

Shaft Assy, Main Drive -18 T

$

$

Currently unavailable

15

Cub Cadet 485-257-R1

Spacer

$

$

Currently unavailable

16

Cub Cadet 485-259-R91

Bearing w/o Locking Collar

$

$

Currently unavailable

17

Cub Cadet 455-104-R11

Collar, Locking w/Set Screw

$

$

Currently unavailable

Cub Cadet IH-102572

Screw, 1/4-20 X 5/8 Soc-Hd Set

$

$

Not available

18

Cub Cadet 485-261-R1

Flange, Bearing

$

$

Currently unavailable

Cub Cadet 634-979-R1

Bolt, 3/8-16 X 1-1/2 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 485-262-R1

Gasket, Flange

$

$

Currently unavailable

20

Cub Cadet 485-263-R1

Dust Excluder

$

$

Currently unavailable

Cub Cadet 63-720-C1

Seal, Felt

$

$

Currently unavailable

21

Cub Cadet 485-271-R1

Tee Assy, Belt Adjustment

$

$

Currently unavailable

22

Cub Cadet 485-253-R1

Spacer

$

$

Currently unavailable

23

Cub Cadet 492-952-R2

Shaft, Input -For 1A Tiller

$

$

Currently unavailable

24

Cub Cadet 485-250-R1

Seal, Adhesive Dust

$

$

Currently unavailable

25

Cub Cadet 485-254-R1

Plate, Pivot

$

$

Currently unavailable

26

Cub Cadet 471-895-R91

Bearing w/o Locking Collar

$

$

Currently unavailable

27

Cub Cadet 455-958-R11

Collar, Locking

$

$

Currently unavailable

Cub Cadet IH-102572

Screw, 1/4-20 X 5/8 Soc-Hd Set

$

$

Not available

28

Cub Cadet 455-961-R1

Flange, Bearing

$

$

Currently unavailable

Cub Cadet 12-872-R1

Bolt, 5/16-18 X 1 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 485-267-R1

Pulley, Drive

$

$

Currently unavailable

Cub Cadet 21-324-R1

Key, 3/16 X 1-5/8 Sq Parallel

$

$

Currently unavailable

Cub Cadet 102-581

Screw, 5/16-18 X 3/8 Soc-Hd Cup Pt

$

$

Currently unavailable

30

Cub Cadet 485-268-R1

Channel, Belt Tightener

$

$

Currently unavailable

Cub Cadet 18-627-R1

Bolt, 1/4-20 X 3/4 C-Z Sq-Nk

$

$

Currently unavailable

Cub Cadet IH-273924

Nut, 1/4-20 C-Z Hex Lock

$

$

Currently unavailable

31

Cub Cadet 584-269-R1

Adjustment Assy

$

$

Currently unavailable

Cub Cadet 480-523-R1

Pin, Quick Attaching Cot

$

$

Currently unavailable

32

Cub Cadet 485-270-R1

Spring, Compression

$

$

Currently unavailable

Cub Cadet IH-120169

Pin, 5/32 X 1 Cot

$

$

Not available

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .074 C-Z

$

$

Currently unavailable

33

Cub Cadet 61-914-C1

Spacer, Input Shaft -For 1A Tiller

$

$

Currently unavailable

34

Cub Cadet 485-251-R1

Shaft, Input -For 1 Tiller

$

$

Currently unavailable

35

Cub Cadet 485-252-R1

Sprocket -12 T- -For 1 Tiller

$

$

Currently unavailable

Cub Cadet 591-184-R1

Pin, 3/16 X 1-1/4 Spirol

$

$

Currently unavailable
