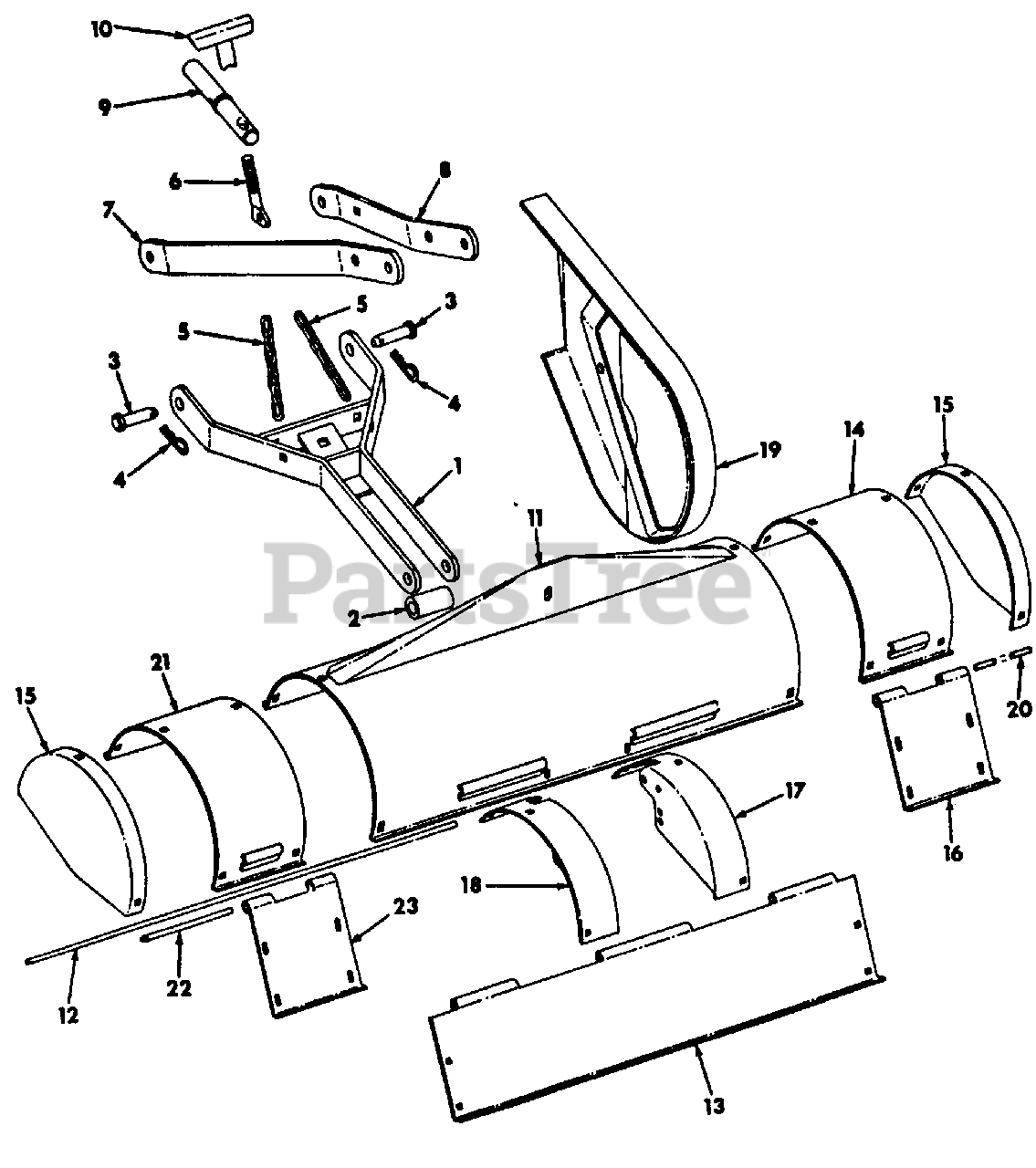

  • Title

1

Cub Cadet 485-286-R3

Bracket Assy, Lower Support

$

$

Currently unavailable

Cub Cadet 460-869-R1

Nut, 1/2-13 C-Z Hex Lock

$

$

Currently unavailable

Cub Cadet 180-192

Screw, 1/2-13 X 3-1/2 C-Z Hex-Hd Cap

$

$

Currently unavailable

2

Cub Cadet 485-288-R1

Bushing, Pivot

$

$

Currently unavailable

3

Cub Cadet 485-289-R1

Pin, Clevis

$

$

Currently unavailable

4

Cub Cadet 480-523-R1

Pin, Quick Attaching Cot

$

$

Currently unavailable

5

Cub Cadet 485-352-R1

Chain, Lift

$

$

Currently unavailable

Cub Cadet 16-888-R1

Bolt, 5/16-18 X 1-1/4 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-9412083

Nut, 5/16-18 C-Z Stover Lock
(Superseded to 912-3009)

$

$

Not available

6

Cub Cadet 485-290-R1

Rod, Adjustment

$

$

Currently unavailable

Cub Cadet IH-180081

Screw, 5/16-18 X 1-1/4 C-Z Hex-Hd Cap
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9412083

Nut, 5/16-18 Hex Lock
(Superseded to 912-3009)

$

$

Not available

Cub Cadet 120-386

Washer, 5/16 X 3/4 X .051 C-Z

$

$

Currently unavailable

7

Cub Cadet 485-291-R1

Bar, Support LH

$

$

Currently unavailable

8

Cub Cadet 485-292-R1

Bar, Support RH

$

$

Currently unavailable

Cub Cadet 460-869-R1

Nut, 1/2-13 C-Z Hex Lock

$

$

Currently unavailable

Cub Cadet 189-314

Screw, 1/2-13 X 4-3/4 C-Z Hex-Hd Cap

$

$

Currently unavailable

9

Cub Cadet 485-294-R1

Shaft Assy, Support

$

$

Currently unavailable

Cub Cadet IH-137263

Pin, 3/16 X 2 Cot

$

$

Currently unavailable

10

Cub Cadet 485-295-R1

Tee Assy, Depth Control

$

$

Currently unavailable

11

Cub Cadet 485-278-R1

Shield Assy, Safety

$

$

Currently unavailable

Cub Cadet 16-897-R1

Bolt, 5/16-18 X 3/4 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-9412083

Nut, 5/16-18 C-Z Hex Lock
(Superseded to 912-3009)

$

$

Not available

Cub Cadet 120-386

Washer, 5/16 X 3/4 X .051 C-Z

$

$

Currently unavailable

12

Cub Cadet 485-280-R1

Rod, Pivot

$

$

Currently unavailable

13

Cub Cadet 485-279-R1

Plate, Back

$

$

Currently unavailable

14

Cub Cadet 485-281-R1

Shield Assy, Extension

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4-20 X 1/2 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-273924

Nut, 1/4-20 C-Z Hex Lock

$

$

Currently unavailable

Cub Cadet 16-559-R1

Washer, 17/64 X 5/8 X .036 C-Z

$

$

Currently unavailable

15

Cub Cadet 485-282-R1

Cap, End

$

$

Currently unavailable

16

Cub Cadet 485-283-R1

Plate, Extension

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4-20 X 1/2 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-273924

Nut, 1/4-20 C-Z Hex Lock

$

$

Currently unavailable

Cub Cadet 16-559-R1

Washer, 17/64 X 5/8 X .036 C-Z

$

$

Currently unavailable

17

Cub Cadet 485-276-R1

Shield, Mounting Bracket RH

$

$

Currently unavailable

18

Cub Cadet 485-277-R1

Shield, Mounting Bracket LH

$

$

Currently unavailable

Cub Cadet 142-680-H

Bolt, 3/8-16 X 2-1/2 C-Z Type 4

$

$

Currently unavailable

Cub Cadet IH-9411655

Nut, 3/8 C-Z Hex Lock
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 485-293-R1

Guard Assy, Belt

$

$

Currently unavailable

Cub Cadet 12-872-R1

Bolt, 5/16-18 X 1 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-9412083

Nut, 5/16-18 C-Z Hex Lock
(Superseded to 912-3009)

$

$

Not available

20

Cub Cadet 485-284-R1

Rod, Pivot

$

$

Currently unavailable

21

Cub Cadet 485-281-R1

Shield Assy, Extension

Note: (For tillers with cutting width increased from 32 to 38 in.)

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4-20 X 1/2 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-273924

Nut, 1/4-20 C-Z Hex Lock

$

$

Currently unavailable

Cub Cadet 16-559-R1

Washer, 17/64 X 5/8 X .036 C-Z

$

$

Currently unavailable

22

Cub Cadet 485-284-R1

Rod, Pivot

Note: (For tillers with cutting width increased from 32 to 38 in.)

$

$

Currently unavailable

23

Cub Cadet 485-283-R1

Plate, Extension

Note: (For tillers with cutting width increased from 32 to 38 in.)

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4-20 X 1/2 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-273924

Nut, 1/4-20 C-Z Hex Lock

$

$

Currently unavailable

Cub Cadet 16-559-R1

Washer, 17/64 X 5/8 X .036 C-Z

$

$

Currently unavailable
