Tiller 1 - Cub Cadet Tiller Attachment Tiller Mounting, Gear Box & Pulleys Parts Diagram

Tiller Attachment

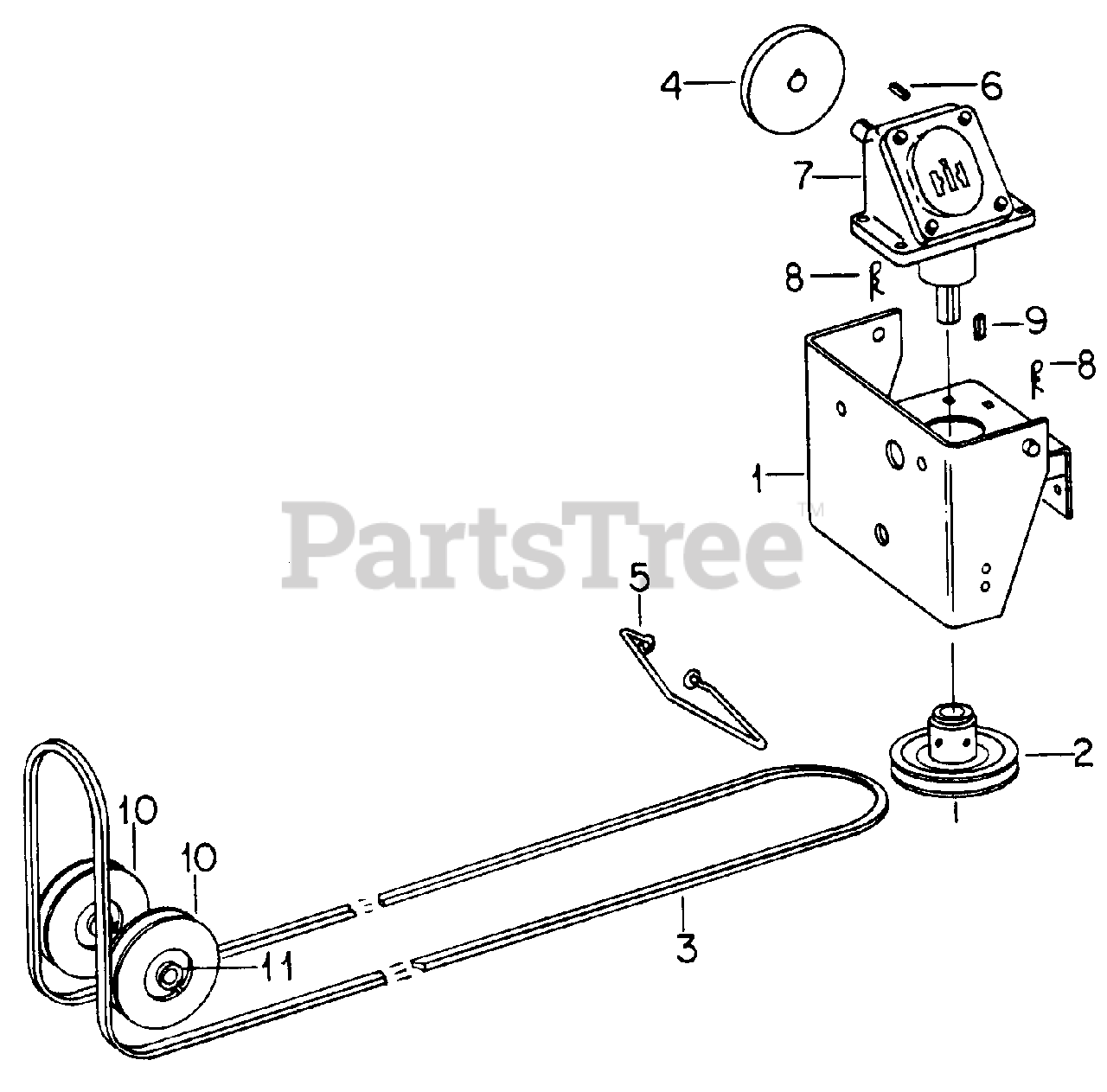

Tiller Mounting, Gear Box & Pulleys Parts Diagram

  • Title

1

Cub Cadet 485-245-R2

Mounting Assy, Gear Box

$

$

Currently unavailable

Cub Cadet 12-872-R1

Bolt, 3/16-18 X 1 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180122

Screw, 3/8-16 X 1 C-Z Hex-Hd Cap
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180124

Screw, 3/8-16 X 1-1/4 C-Z Hex-Hd Cap
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 3/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 485-246-R91

Pulley w/Set Screws

$

$

Currently unavailable

Cub Cadet 102-581

Screw, 5/16-18 X 3/8 Soc-Hd Set

$

$

Currently unavailable

3

Cub Cadet 487-045-R2

Belt, PTO Drive -Tractor Serial No. 400,000 & below

$

$

Currently unavailable

Cub Cadet 549-250-R1

Belt, PTO Drive -Tractor Serial No. 400,001 & above

$

$

Currently unavailable

4

Cub Cadet 485-247-R91

Pulley w/Set Screws

$

$

Currently unavailable

Cub Cadet 137-218

Pin, 5/32 X 1-1/4 Cot

$

$

Currently unavailable

Cub Cadet 102-581

Screw, 5/16-18 X 3/8 Soc-Hd Set

$

$

Currently unavailable

5

Cub Cadet 56-571-C1

Guide, Belt -Hydro Transmission

$

$

Currently unavailable

Cub Cadet 485-300-R1

Guide, Belt -Gear Transmission

$

$

Currently unavailable

Cub Cadet IH-180122

Screw, 3/8-16 X 1 C-Z Hex-Hd Cap
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

Washer, 3/8 X 3/4 X .051 C-Z

$

$

Currently unavailable

6

Cub Cadet 474-098-R1

Key, 3/16 X 1-1/4 Sq Parallel

$

$

Currently unavailable

7

Box Assy Gear -90 Degree-

Note: For components see list of parts under details of 90 Degree Gear Box

$

$

Not available

8

Cub Cadet 480-523-R1

Pin, Quick Attachable Cot

$

$

Currently unavailable

9

Cub Cadet 21-325-R1

Key, 3/16 X 2 Sq Parallel

$

$

Currently unavailable

10

Cub Cadet 493-164-R91

Pulley, Drive Belt Idler

$

$

Currently unavailable

11

Cub Cadet 542-122-R91

Bearing Assy, Idler Pulley

$

$

Currently unavailable
