Tiller 2 (2B) - Cub Cadet Tiller Attachment att2 Front Drive-Tractors Without Front Drive Parts Diagram

Tiller Attachment

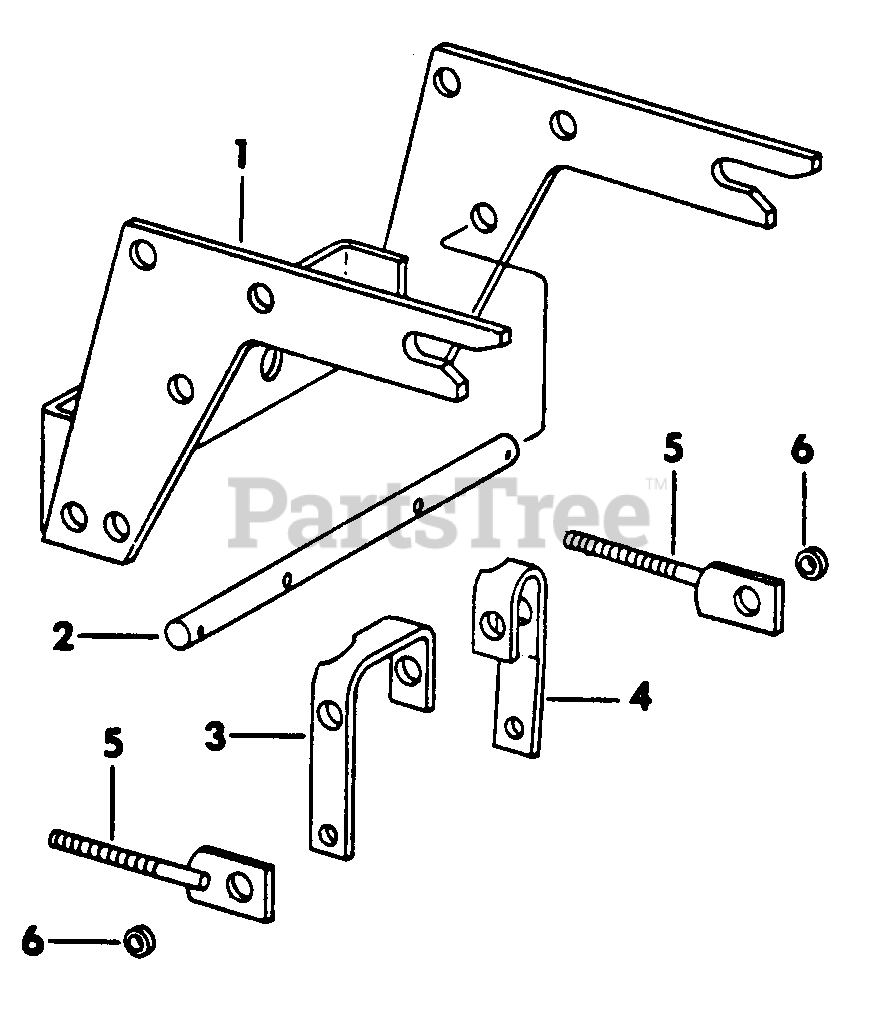

Front Drive-Tractors Without Front Drive Parts Diagram

  • Title

Cub Cadet 493-165-R91

Tiller Front Drive Parts Package

$

$

Currently unavailable

1

Cub Cadet 547-434-R2

Hanger Assy, Front

$

$

Currently unavailable

2

Cub Cadet 547-435-R1

Rod, Front Mounting

$

$

Currently unavailable

3

Cub Cadet 489-601-R1

Support, Idler LH

$

$

Currently unavailable

4

Cub Cadet 489-602-R1

Support, Idler RH

$

$

Currently unavailable

Cub Cadet 21-903-R1

Washer, 17/32 X 3/4 X 16 Ga C-Z

$

$

Currently unavailable

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cot
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 364-436-R1

Pin, 3/16 X 1 Hv Coiled Spring

$

$

Currently unavailable

Cub Cadet 20-249-R1

Screw, 1/2-13 X 1 C-Z Slt-Truss-Hd Mach

$

$

Currently unavailable

Cub Cadet 17-433-R1

Bolt, 1/2-13 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet 460-980-R1

Washer, 17/32 X 1-1/2 X 11 Ga C-Z

$

$

Currently unavailable

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

Nut, 1/2-13 Znd Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 489-375-R1

Bracket Assy, Idler Adjuster

$

$

Currently unavailable

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet 668-569-R1

Washer, 11/32 X 1-1/2 X .119 C-Z

$

$

Currently unavailable

Cub Cadet 411-597-R1

Nut, 5/16-18 Zn Nylon Insert

$

$

Currently unavailable

6

Cub Cadet 489-378-R1

Spacer, Idler Adjuster

$

$

Currently unavailable

Cub Cadet 18-253-R1

Nut, 3/8-16 Nylon Lock

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-180130

Screw, 3/8-16 X 2 C-Z Hex-Hd Cap
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180128

Screw, 3/8-16 X 1-3/4 C-Z Hex-Hd Cap
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, 13/32 X 11/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available
